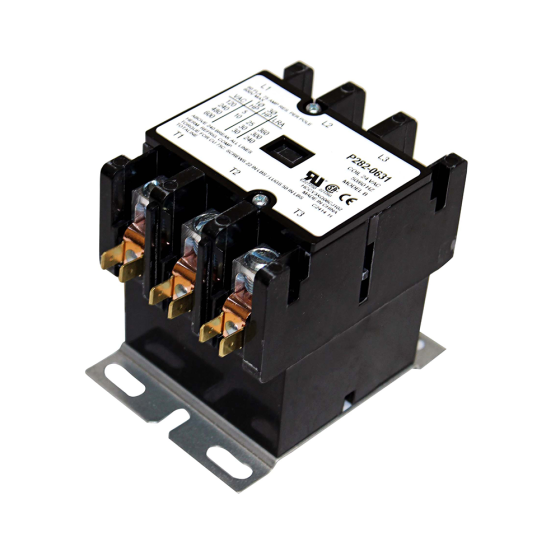

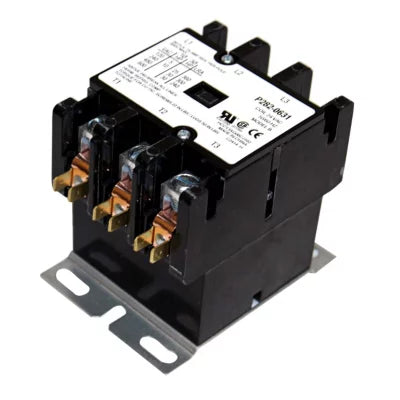

CARRIER P282-0631 - 3 Pole Contactor, 60A, 24VAC, Lug Terminals

Product Description

The CARRIER P282-0631 is a 3-pole contactor designed for electrical switching. It supports a FLA rating of 60 Amps and is rated for resistive loads up to 75 Amps. The coil operates at 24VAC, suitable for a variety of electrical applications.

• Rated for 60A with a 24VAC coil voltage.
• Features lug terminals and quick connections for versatile wiring.
• Suitable for refrigeration, HVAC, and motor control applications.

Product Highlights

This contactor is ideal for residential and commercial systems. It supports devices with voltages up to 600VAC and has Class B coil insulation. Applications include air conditioning, heating, refrigeration, and water pump motors.

Product Information

Standard Information

• Brand: CARRIER
• UPC: 662441386336

Technical Specifications

• Amps: 60
• Control Voltage: 24VAC
• Number of Poles: 3
• Height: 3.3 inches
• Length: 2.9 inches
• FLA: 60
• Hertz: 60
• Voltage: 120/240/480/600
• Operating Weight: 1.45 lbs
• Width: 4.1 inches
• Approvals: CSA Listed
• Phase: Single/Three
• Switch Action: Normally Open
• Terminal Connection Type: Lugs
