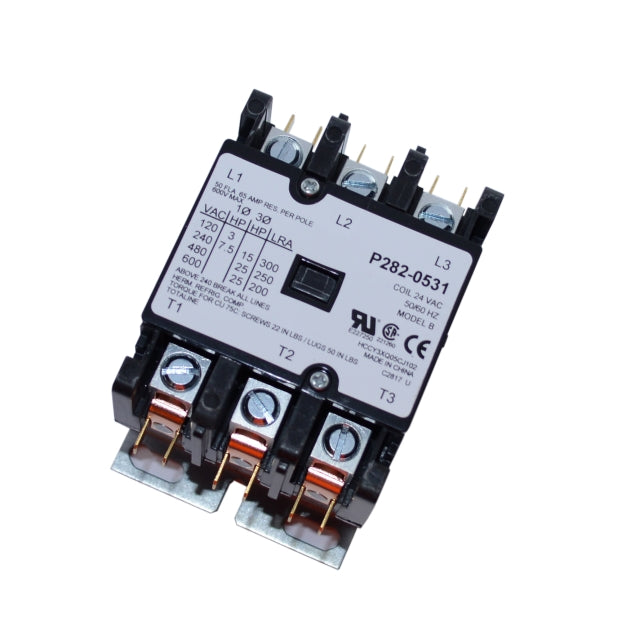

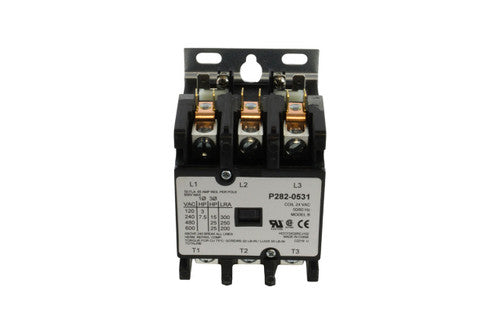

CARRIER P282-0531 TOTALINE 3-Pole 50A Contactor 24VAC

Product Description

The CARRIER P282-0531 is a TOTALINE 3-Pole Contactor designed for various electrical switching applications. This contactor operates at fifty to sixty Hertz and suits devices reaching up to six hundred VAC. It is compliant with U/L bulletin number 508 standards, which governs industrial control equipment safety. The device features Class B coil insulation and incorporates lug terminals that accommodate wire sizes ranging from four to fourteen copper or aluminum.

• Designed for panel mounting with essential straight-through wiring.
• Equipped with two coil connectors and two 0.250 male push-on connectors for each pole.
• Appropriate for HVAC, refrigeration, water pump, motor control, and similar applications.

Product Highlights

This product is UL and CSA recognized, making it suitable for a wide range of electrical installations and systems.

Product Information

Standard Information

• Brand: TOTALINE
• Coil Voltage: 24 VAC

Technical Specifications

• Length: 2.7559 inches
• Width: 3.937 inches
• Height: 3.3071 inches
• Weight: 1.2 pounds
• Amps: 0.5 Amperes
• Approvals: CSA Listed; UL Recognized
• Cycle/Hertz: 50/60 Hz
• Max Voltage: 600
