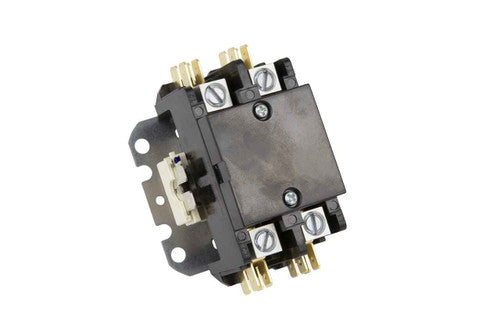

CARRIER P282-0423 Contactor

Product Description

The CARRIER P282-0423 contactor is suitable for residential and commercial use in refrigeration, air conditioning, and heating systems. It is manufactured by Hartland Controls and part of the HCC series with the model number HCCY2XU4GG102. This contactor has a single-pole, single-throw switch type and operates on a normally open circuit. It supports a line voltage of two hundred forty to two hundred seventy-seven VAC and a coil voltage of twenty-four VAC at 50/60 Hz. Key specifications include a full load amperage of forty and a locked rotor amperage of one hundred twenty. It is designed to meet U/L bulletin no. 508 standards for devices up to six hundred VAC.

• Suitable for air conditioning and heating applications.
• Equipped with power terminals using #10-32 combination hex washer head screws.
• Recognized by UL / CSA.

Product Highlights

Product Information

Standard Information

• Manufacturer: Hartland Controls
• Series: HCC

Technical Specifications

• Model Number: HCCY2XU4GG102
• Type: Definite Purpose
• Switch Type: Single-Pole Single-Throw
• Coil Voltage: 24 VAC
• Line Voltage: 240/277 VAC
• Full Load Amperage: 40
• Locked Rotor Amperage: 120
• Resistance: 50 Ohms
