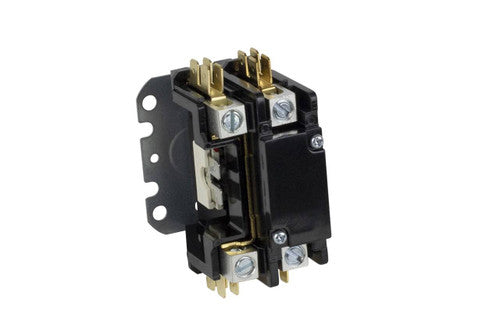

CARRIER P282-0411 Contactor

Product Description

The CARRIER P282-0411 is a contactor designed for electrical control. It is a single-pole, single-throw switch with a normally open configuration. This device operates with a coil voltage of twenty-four VAC at fifty or sixty Hertz. It supports line voltages of two hundred forty and two hundred seventy-seven VAC and is rated for a full load amperage of forty, with a locked rotor amperage of one hundred twenty. It is suitable for multiple voltage applications including two hundred forty, four hundred eighty, and six hundred volts. The contactor features a resistance of fifty Ohms in its coil and uses one-fourth inch quick connect for coil terminal connections.

• Single-pole, single-throw (SPST) switch with normally open circuit.
• Rated for 40A full load amperage and 120A locked rotor amperage.
• Designed for 24 VAC coil voltage at 50/60 Hz.

Product Highlights

Product Information

Standard Information

• Manufacturer: Hartland Controls
• Series: HCC

Technical Specifications

• Model: HCCY1XQ04GG102
• Type: Definite Purpose
• Number of Poles: 1
• Switch Type: SPST
• Circuit: Normally Open
• Coil Terminal Connections: 1/4 Quick Connect
• Coil Voltage VAC: 24
• Hertz: 50/60
• Line Voltage: 240/277
• Full Load Amperage: 40
• Locked Rotor Amperage: 120
• Resistance: 50 Ohms
• Voltage: 240/480/600
• Weight: 2.00 LBS
• Amps: 40
