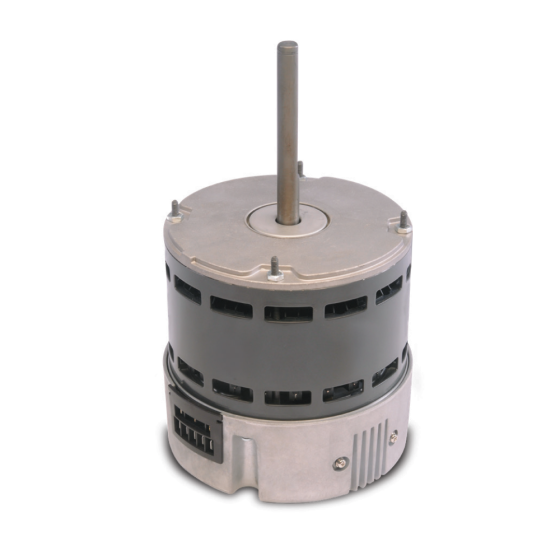

CARRIER P257-FLEXPSC51 Totaline FLEXPSC to ECM Blower Motor Upgrade 3/4-1 HP

Product Description

The CARRIER P257-FLEXPSC51 Totaline FLEXPSC to ECM Blower Motor Upgrade is made for standard PSC furnace and air-handler boards. This motor suits direct drive blower motor applications and is compatible with existing mounting brackets or any 48 Frame Mount. It runs on dual voltage of 115-230V and operates at 50/60 Hz.

• Designed for easy connection with standard PSC furnace and air-handler boards.
• Suitable for numerous direct drive blower motor applications.
• Operates on dual voltage of 115-230V single phase power.

Product Highlights

The motor features an ECM type with a TEAO enclosure and a 48 frame size. With a rotation direction of CCW/CW, it operates at 1075 RPM. The shaft has a diameter of half an inch. This product is UL and CSA Recognized with an insulation class of B and operates at five speeds.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: MEX

Technical Specifications

• Cycle/Hertz: 50/60 Hz
• Motor HP: 1 HP
• Motor Type: ECM
• UPC: 781897092605
• Frame Size: 48
• Phase: 1
• Rotation: CCW/CW
• RPM: 1075
• Shaft Diameter: ½ inches
• Amperage: 8.0/11.0
• Ambient Temperature: 40 °C
• Operating Weight: 20 lbs
• Exterior Dimensions (D): 18 inches
• Exterior Dimensions (W): 8 inches
• Exterior Dimensions (H): 8 inches
