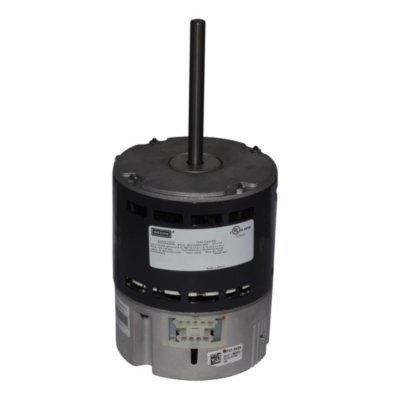

CARRIER P257-FLEX1660 TOTALINE Flex Blower Motor 1 HP Replacement Motor

Product Description

The CARRIER P257-FLEX1660 TOTALINE Flex Blower Motor is a one horsepower ECM designed for variable speed use. This motor can operate with 24 volts or PWM and is suitable for replacing 16-Pin 2.0, 2.3, and EON variable speed blower motors. It functions at 115/208/230 VAC and is single-phase. The motor allows for adjustable airflow and rotation settings through an EZ Interface, making it adaptable to various installation needs.

• Replaces 16-Pin 2.0, 2.3 and EON variable speed blower motors
• Adjustable airflow and rotation via EZ Interface
• UL and CSA Recognized for safety standards

Product Highlights

This blower motor is designed for continuous operation and is compatible with various frame mounts. It features an open motor enclosure and is recognized by both UL and CSA.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: MEX

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Motor HP: 1 HP
• Voltage: 115/208/230 VAC
• Amps: 7.1-12.1
• RPM: 1,075
• Shaft Diameter: 0.5 inches
• Shaft Length: 5 inches
• Dimensions: Length 7.1 inches, Width 15.5 inches, Height 6.9 inches
• Weight: 16.85 pounds
