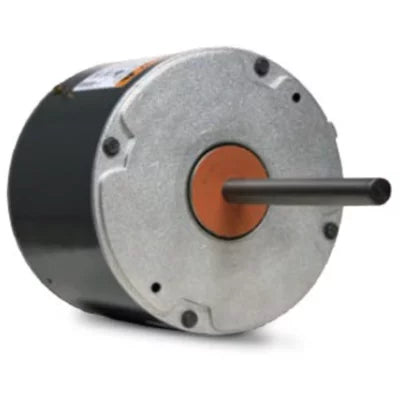

Carrier p257-e5465 Condenser Fan Motor 208/230V 1075RPM

Product Description

The CARRIER p257-e5465 is a genuine OEM replacement condenser fan motor designed for use in CARRIER HVAC systems. Rated for dual horsepower operation between 1/5 HP and 1/2 HP, this motor runs on 208/230 volt single-phase power at 1075 RPM. It is intended to restore proper airflow across the condenser coil in split-system and packaged HVAC equipment. Licensed HVAC technicians performing seasonal maintenance, compressor changeouts, or motor failure diagnosis will find this a direct OEM-grade swap for the failed unit, eliminating the fitment guesswork that comes with aftermarket alternatives.

This motor is suited for residential and light commercial condenser or evaporator fan applications where the original equipment calls for a 208/230 volt, 1075 RPM motor in the 1/5 to 1/2 HP range. It is particularly relevant in split-system air conditioners and heat pumps where condenser fan motor failure results in high-pressure lockout or compressor overheating. The dual-voltage rating makes it compatible with both 208-volt commercial supply and standard 230-volt residential circuits without rewiring.

Key Features

• Genuine OEM replacement sourced directly from CARRIER for reliable fitment
• Dual horsepower range of 1/5 HP to 1/2 HP covers varied load requirements
• 208/230 volt dual-voltage rating suits both residential and light commercial installations
• 1075 RPM operating speed matched to original condenser fan blade specifications
• Direct swap design reduces labor time on motor replacement calls

Compatibility

Designed as a genuine OEM replacement motor for CARRIER HVAC systems requiring a 208/230 volt, 1075 RPM condenser fan motor in the 1/5 to 1/2 HP range. Refer to the original equipment nameplate and service documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's service documentation. Disconnect and lock out all power to the unit before removing the existing motor or handling electrical connections. Confirm the replacement motor's rotation direction, shaft diameter, and mounting configuration match the original before securing. Do not energize the unit until all wiring connections are complete, the fan blade is secured, and all panels are reinstalled.

Technical Specifications

• Horsepower: 1/5 to 1/2 HP
• Voltage: 208/230 volts
• Speed: 1075 RPM
• Phase: Single-phase

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: p257-e5465
