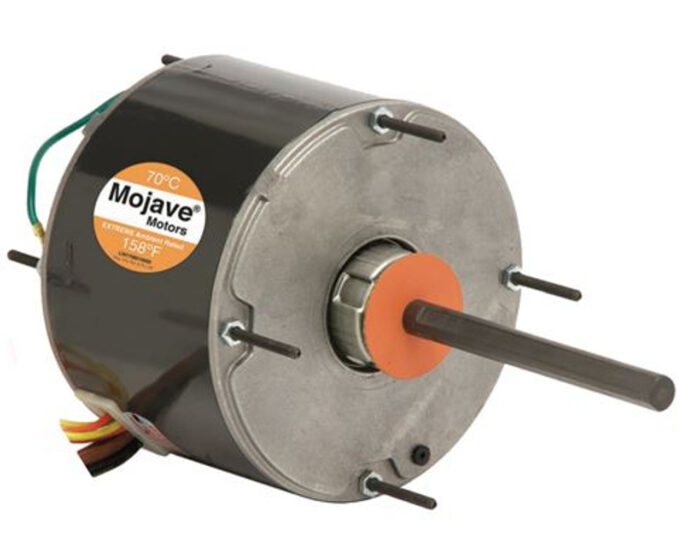

CARRIER P257-3738HS Condenser Fan Motor 1/2 Horsepower

Product Description

The CARRIER P257-3738HS is a condenser fan motor suitable for high-temperature and continuous duty applications. It runs on 460V and produces a total of 1/2 horsepower with a speed of 1075 RPM. This unit features a totally enclosed air over (TEAO) design, providing optimal protection for the motor. The shaft diameter is half an inch, with a length of six inches, making it compatible with various condenser fan systems. Its dimensions are five point six inches in diameter and twelve inches in length, while its width measures five point three inches.

• Operates efficiently at 460V with a speed of 1075 RPM.
• Built with a TEAO enclosure for enhanced protection.
• Ideal for condenser fan applications in high-temperature environments.

Product Highlights

This motor is ideal for professionals in HVAC who require reliable performance and durability in high-temperature settings.

Product Information

Standard Information

• Brand: CARRIER
• Condition: New

Technical Specifications

• Model Number: P257-3738HS
• Horsepower: 1/2
• Voltage: 460V
• Amperage: 1.5 A Full Load
• Speed: 1075 RPM
• Dimensions: 5.6 inches Dia x 12 inches L x 5.3 inches W
• Shaft Size: 1/2 inch Dia x 6 inches L
• Enclosure Type: Totally Enclosed Air Over
