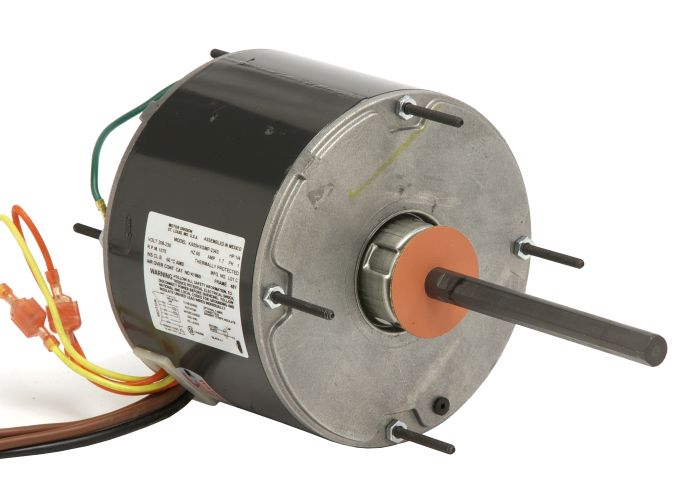

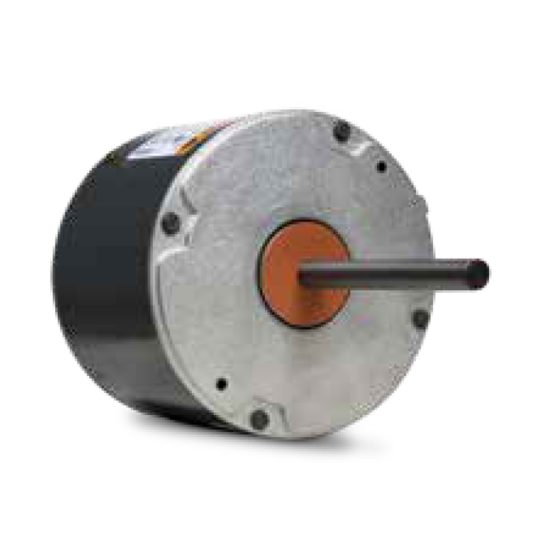

CARRIER P257-3737HS Condenser Fan Motor 1/3 HP 460V

Product Description

The CARRIER P257-3737HS is a condenser fan motor designed to operate at a voltage of 460V. This single-phase motor works at a frequency of 60 Hz and provides a power output of 1/3 HP while achieving a speed of 1075 RPM. Built for durability, the motor has a reversible rotation feature and is rated for continuous duty.

• Operates on 460V with a single-phase power supply.
• Provides 1/3 HP at 1075 RPM, ideal for condenser applications.
• Designed with a totally enclosed air over (TEAO) enclosure for enhanced thermal management.

Product Highlights

This motor is built with ball bearings and class F insulation, suitable for high-temperature environments.

Product Information

Standard Information

• Brand: Carrier
• Condition: New

Technical Specifications

• MPN: P257-3737HS
• Motor Type: Permanent Split Capacitor (PSC)
• Motor Frame: NEMA 48
• Shaft Size: 0.50 x 6.0 inches
• Amperage: 1 A
• RPM: 1075
• Weight: 16 lbs
• Dimensions: 7.3 in x 6.3 in x 12.8 in
