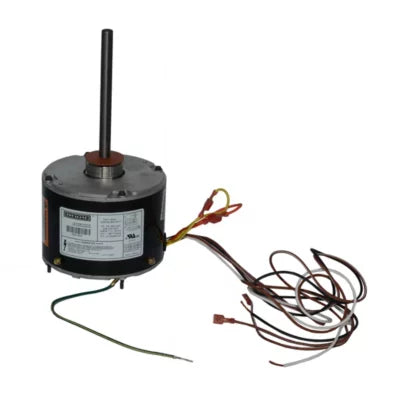

CARRIER P257-3203 Condenser Fan Motor - 1/6 HP - 208-230V

Product Description

The CARRIER P257-3203 is a condenser fan motor optimized for air conditioning and heat pump systems. It operates efficiently on 208-230 VAC single-phase power, providing 1/6 horsepower at 825 RPM. The motor's construction includes a 48Y NEMA frame and a half-inch diameter shaft with a length of six inches. This motor features a totally enclosed air over design and utilizes a PSC (Permanent Split Capacitor) motor type, making it suitable for continuous-duty operation. The mounting options include base, stud, or strap, allowing for versatile installation. Ball bearings enhance its performance, and the motor supports reversible rotation.

• Operates at 208-230 VAC, delivering 1/6 HP at 825 RPM.
• Designed with 48Y NEMA frame for continuous-duty and reversible rotation.
• UL and CSA listed for safety, includes one-year warranty.

Product Highlights

This motor is ideal for replacing worn-out condenser fan motors in HVAC applications, ensuring reliable functionality and safety compliance.

Product Information

Standard Information

• Brand: Carrier
• Model Number: P257-3203

Technical Specifications

• Voltage: 208 to 230
• Horsepower: 1/6
• Speed: 825 RPM
• Amperage: 1 A Full Load
• Dimensions: 5.6 in Diameter x 10.6 in Length x 4.1 in Width
• Shipping Weight: 10.15 lb
• Frame: 48
• Enclosure Type: Totally Enclosed Air Over
