CARRIER ML6161B2024 Damper Actuator 24V

Product Description

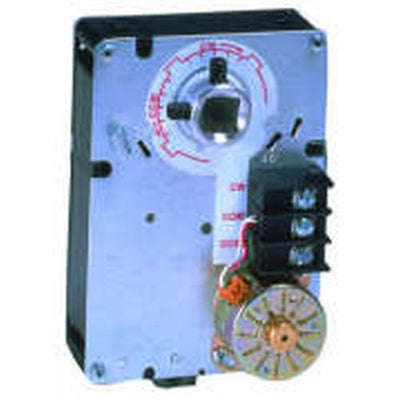

The CARRIER ML6161B2024 is a damper actuator designed for HVAC systems. It functions on a 24V power supply and provides a torque of 35 lb-in. This actuator uses a floating control signal and includes a declutch mechanism for manual control, making it reliable for various applications.

• Designed for HVAC systems with a torque of 35 lb-in.
• Equipped with a declutch mechanism for easy manual operation.
• Direct-coupled installation with compact dimensions of five point five five inches by three point three nine inches by two point five two inches.

Product Highlights

This actuator is constructed from a steel plate and plenum-rated plastic, ensuring durability in a wide range of environments. It operates efficiently within a humidity range of five to ninety-five percent and an ambient temperature range from twenty degrees Fahrenheit to one hundred twenty-five degrees Fahrenheit.

Product Information

Standard Information

• Application: HVAC
• Weight: 1.5 lb

Technical Specifications

• Dimensions: 5.55 in high x 3.39 in wide x 2.52 in deep
• Torque Rating: 35 lb-in
• Supply Voltage: 24 Vac ±20%
• Operating Humidity Range: 5 to 95% RH, non-condensing
• Ambient Temperature Range: 20 F to 125 F
• Mounting: Direct Coupled
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: Screw terminals
