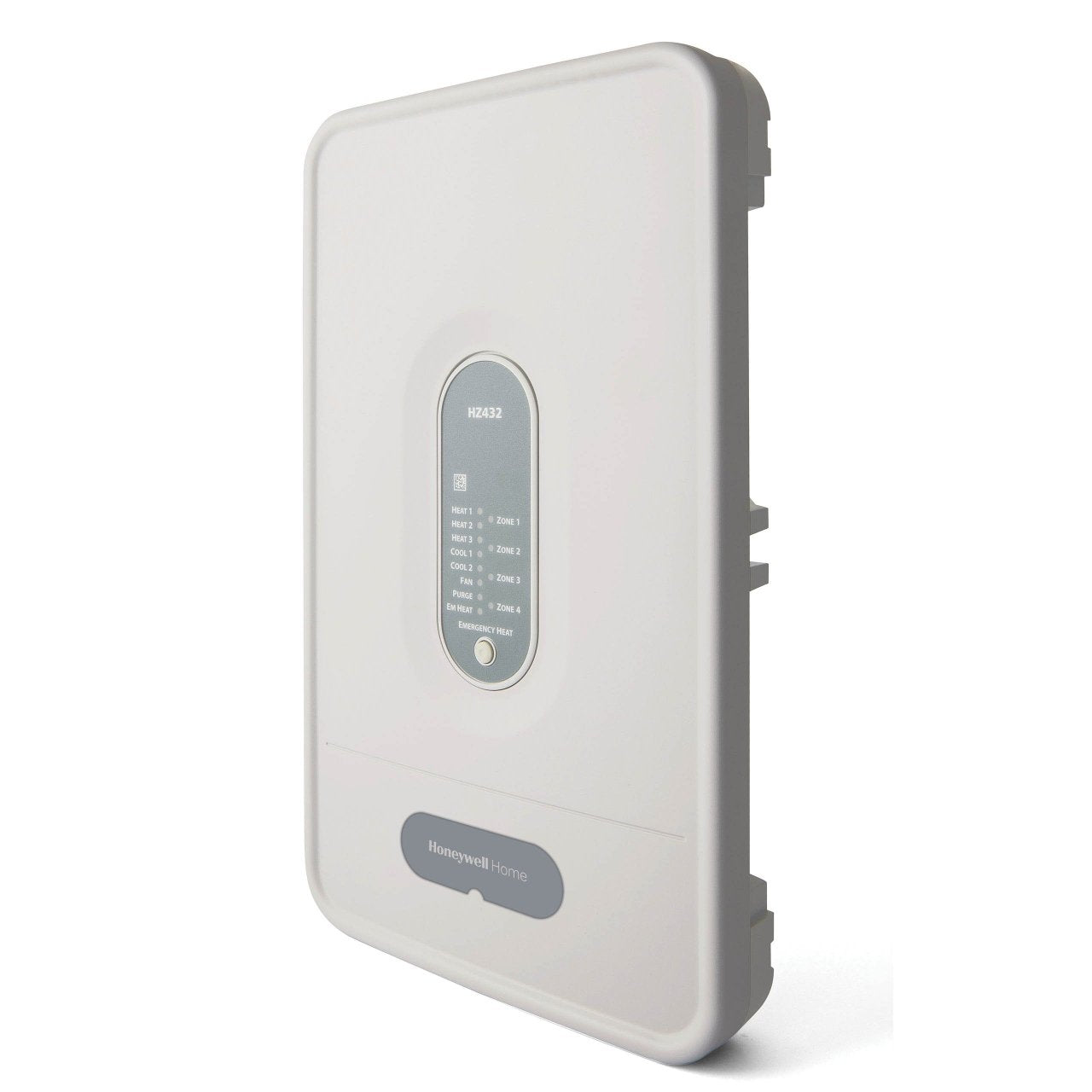

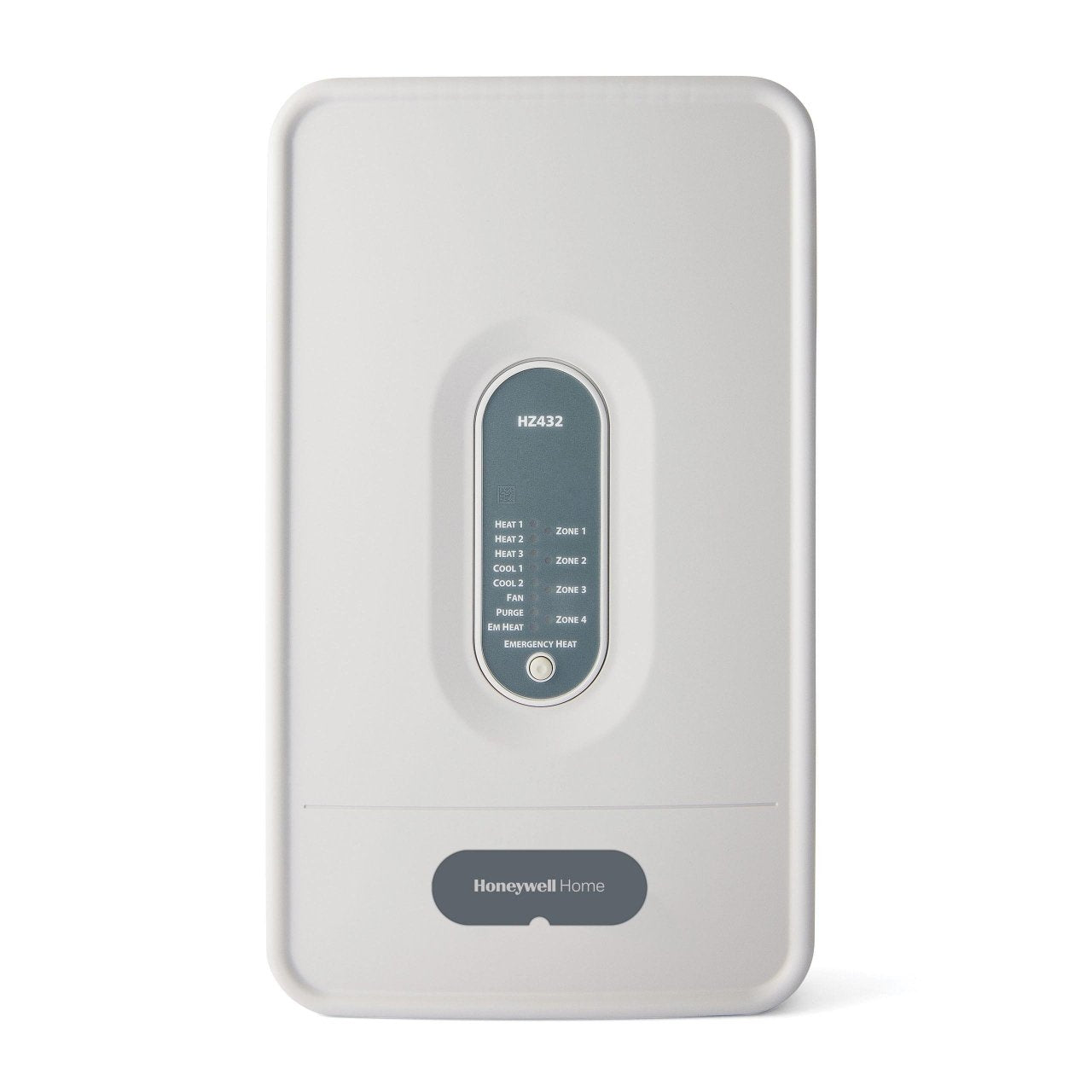

CARRIER HZ432 TrueZONE HZ432 Panel

Product Description

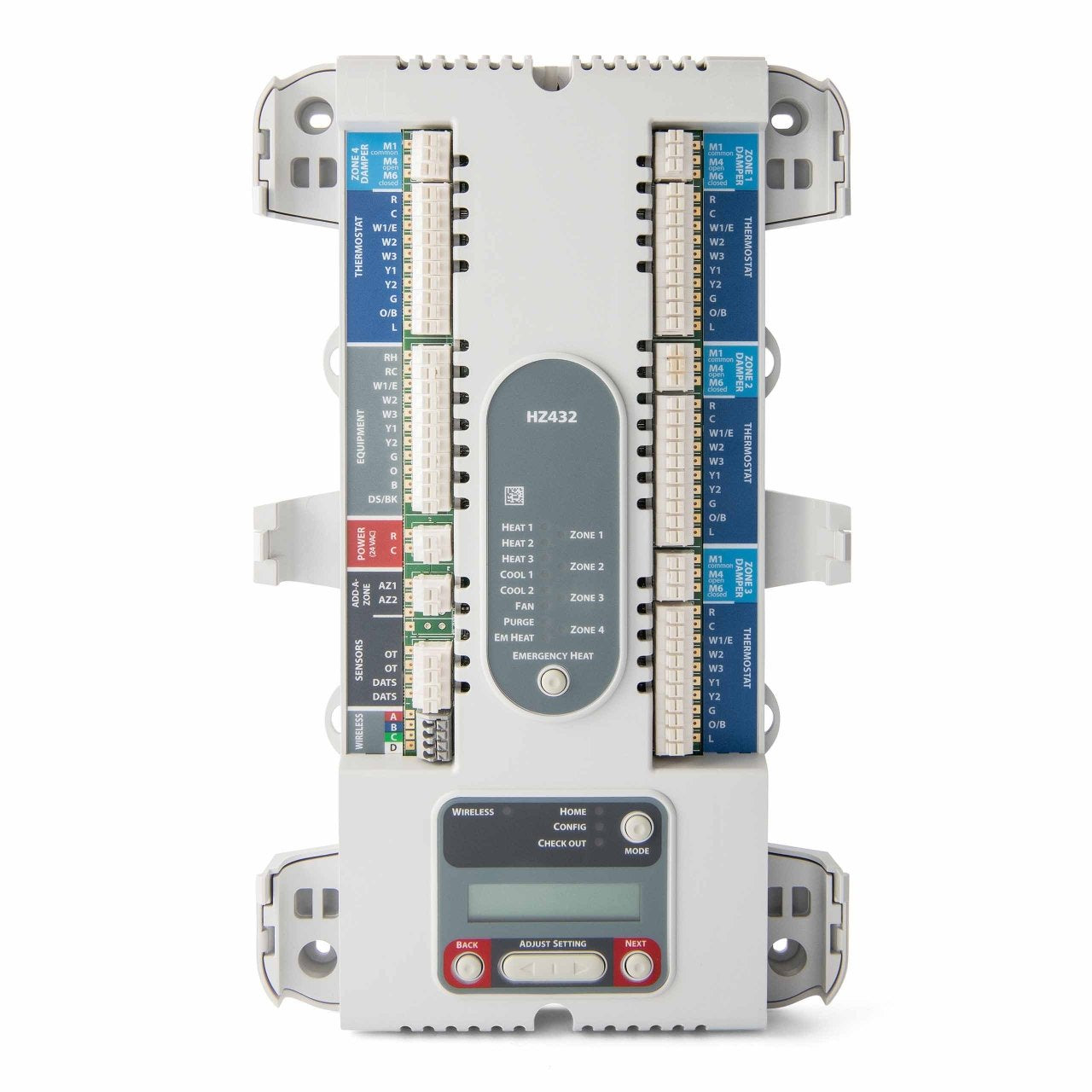

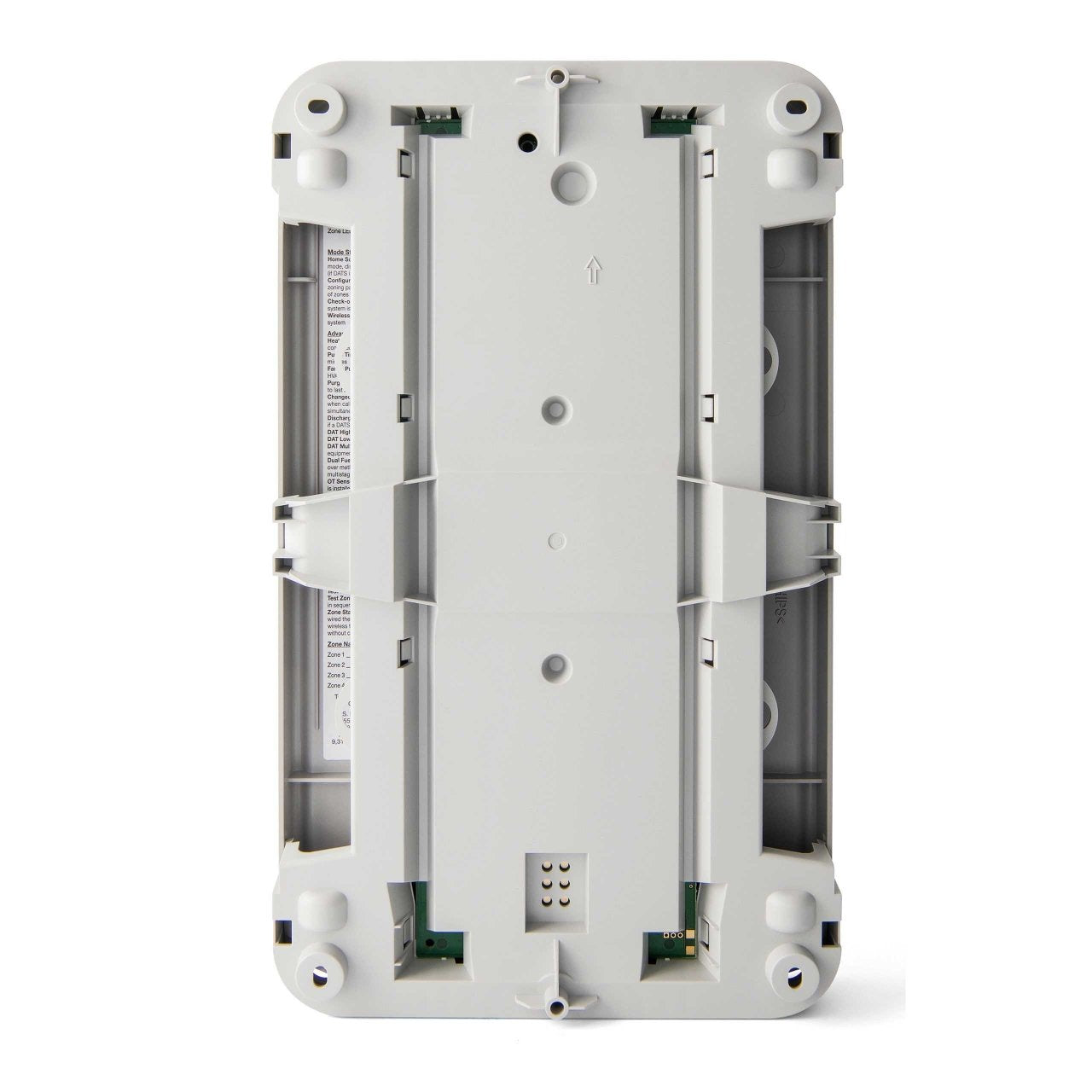

The CARRIER HZ432 TrueZONE HZ432 Panel is suitable for conventional, heat pump, and dual fuel zoning applications. This panel can manage up to four zones, offering precise control of temperature across different areas. The digital display makes it easy for installers to navigate the setup in four simple steps. Key installation features include strong push terminals and clear LEDs, which enhance the installation experience. It measures eight inches in width, allowing for versatile mounting options on the return duct, studs, or wall.

• Expandable up to four zones for customized temperature management.
• Compatible with RedLINK technology for wireless connectivity.
• Includes robust installation features such as push terminals and LED indicators.

Product Highlights

This panel provides a checkout procedure, variable-speed fan control, and supports dual-fuel operation. A resettable fuse is included for enhanced safety.

Product Information

Standard Information

• Application: Zoning
• Stages: 3 Heat/2 Cool

Technical Specifications

• Number of Zones: 4
• Heat Pump Compatible: Yes
• Auto Changeover: Yes
• Voltage: 24V
• Emergency Heat Switch: Yes
• Width: 8 inches
• Depth: 1.86 inches
• Height: 13.42 inches
