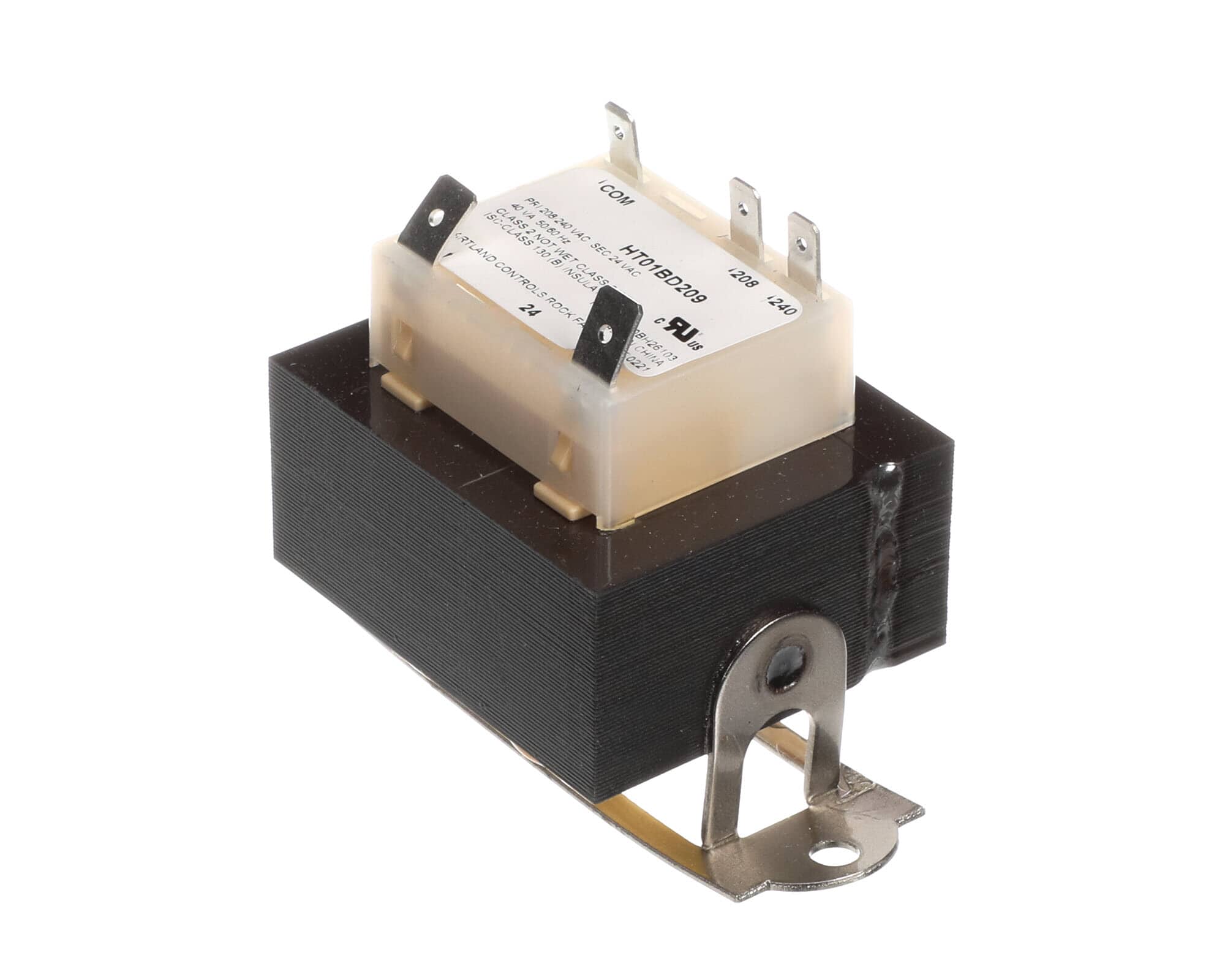

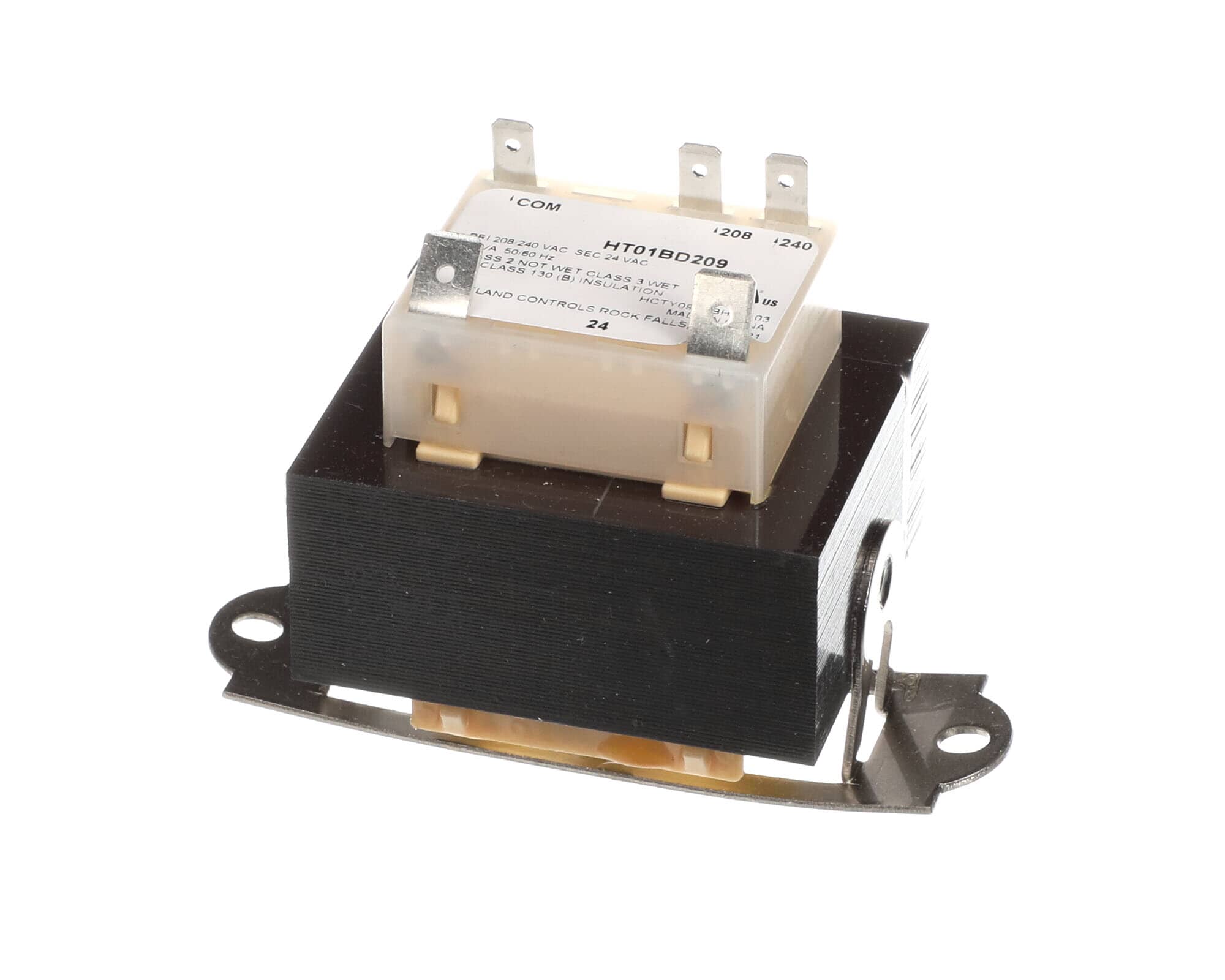

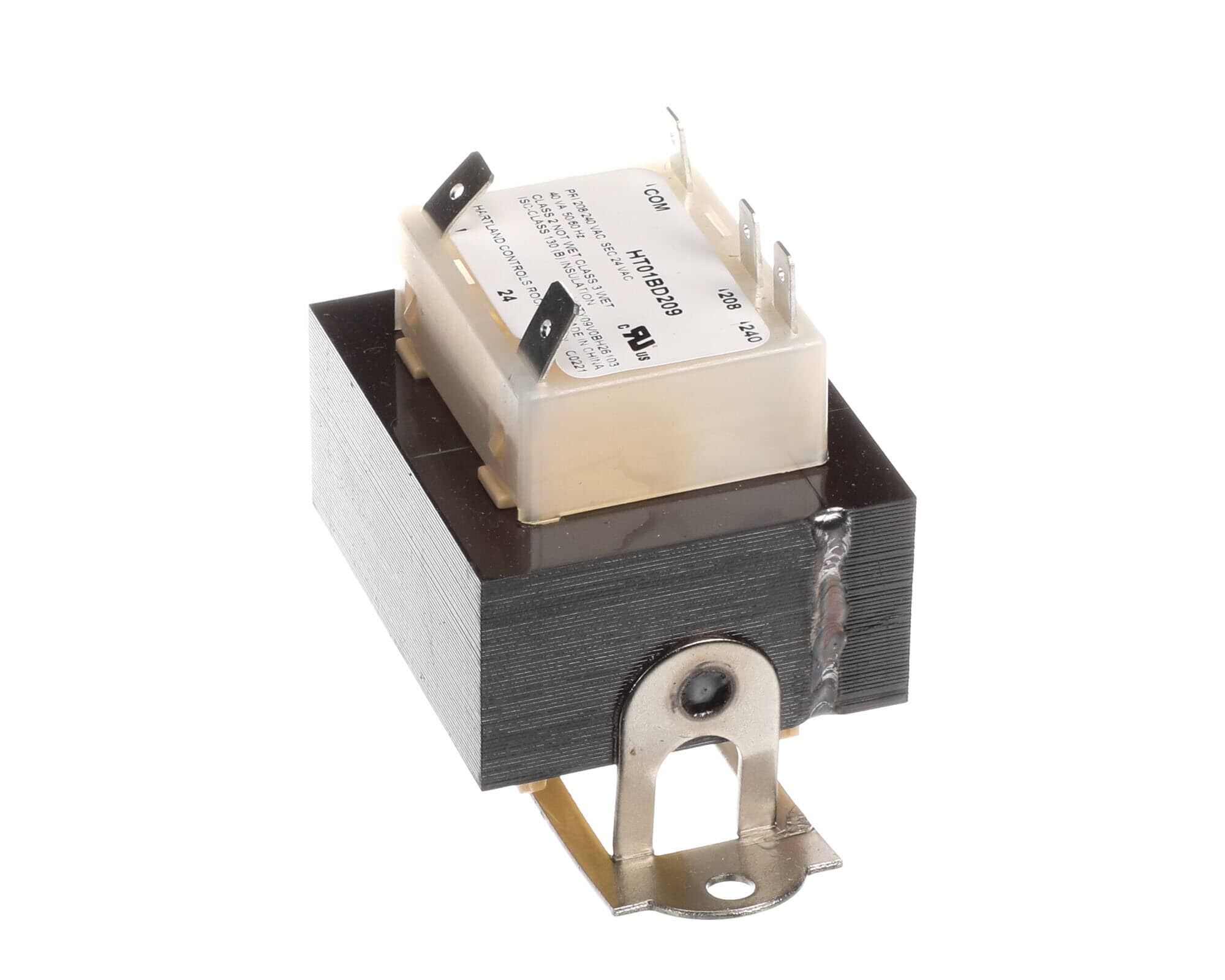

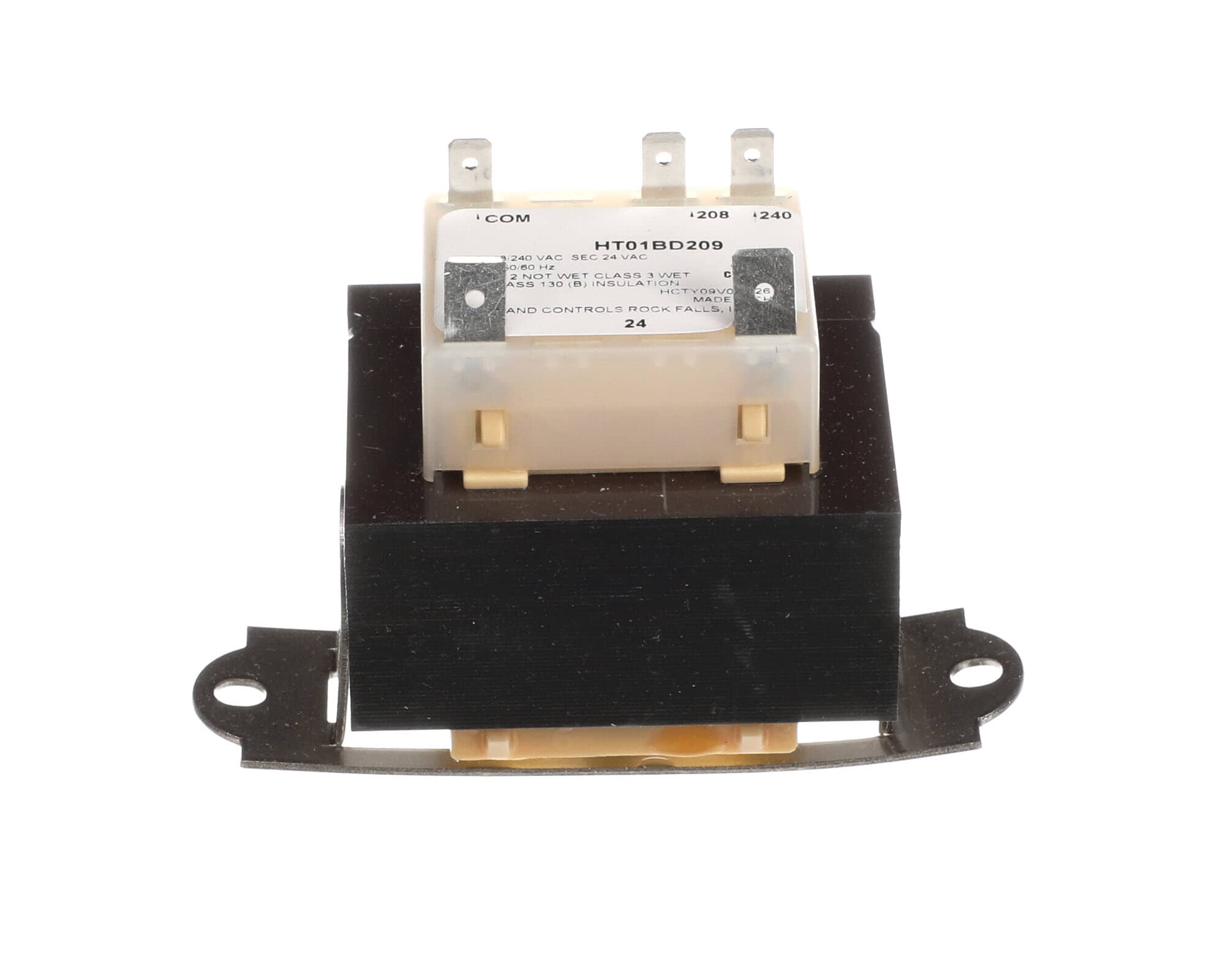

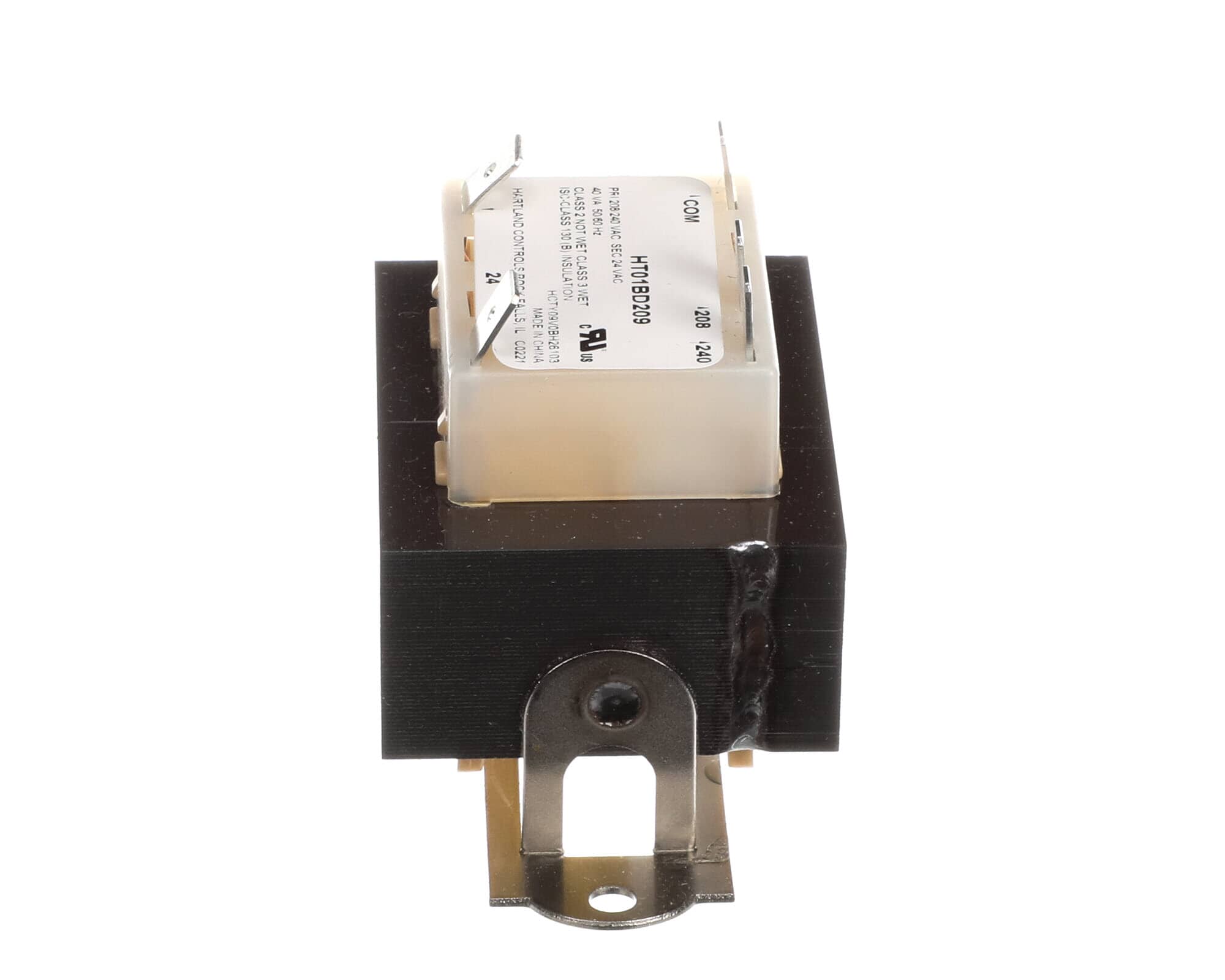

Carrier HT01BD209 Transformer 40 VA (6.6 x 4.15 x 2.85 in) HT01CN232

CARRIER
Brand: CARRIER
SKU: HT01BD209
Availability: In Stock

Ships same day if ordered by 12 pm
$67.39
$67.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Carrier HT01BD209 is a transformer for HVAC applications that converts a 208/240 VAC primary to a 24 VAC secondary, rated 40 VA at 50/60 Hz. It provides 24 V control power for thermostats, relays, and control boards. The unit measures approximately 6.6 x 4.15 x 2.85 inches and weighs about 2.62 pounds and is listed as a direct replacement for legacy part HT01CN232.

  • Input 208/240 V primary, output 24 V secondary; 40 VA rating, 50/60 Hz
  • Compact physical size 6.6 x 4.15 x 2.85 inches and weight approximately 2.62 lb
  • Foot-style mount with quick-connect terminals (3/16 inch primary, 1/4 inch secondary); compatible replacement for HT01CN232

Product Highlights

208/240 VAC to 24 VAC, 40 VA HVAC control transformer; compact footprint for direct replacement; MPN HT01BD209.

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: HT01BD209
Technical Specifications
Brand
Carrier
Manufacturer Part Number
HT01BD209
Item Code
CARHT01BD209
Base Part Number
13130333
Manufacturer Code
CAR
Input Voltage
208/240 V
Output Voltage
24 V
Frequency
50/60 Hz
Power Rating
40 VA
Dimensions (L x W x H)
6.6 x 4.15 x 2.85 in
Weight
2.62 lb
Mounting Type
Foot style
Primary Connections
3/16" quick connect
Secondary Connections
1/4" quick connect
Frame Construction
Steel frame
Replaces / Compatibility
Replaces HT01CN232; also referenced as replacement for HT01BD207, 9076-00; compatible with select Carrier, Bryant, and Payne control systems
