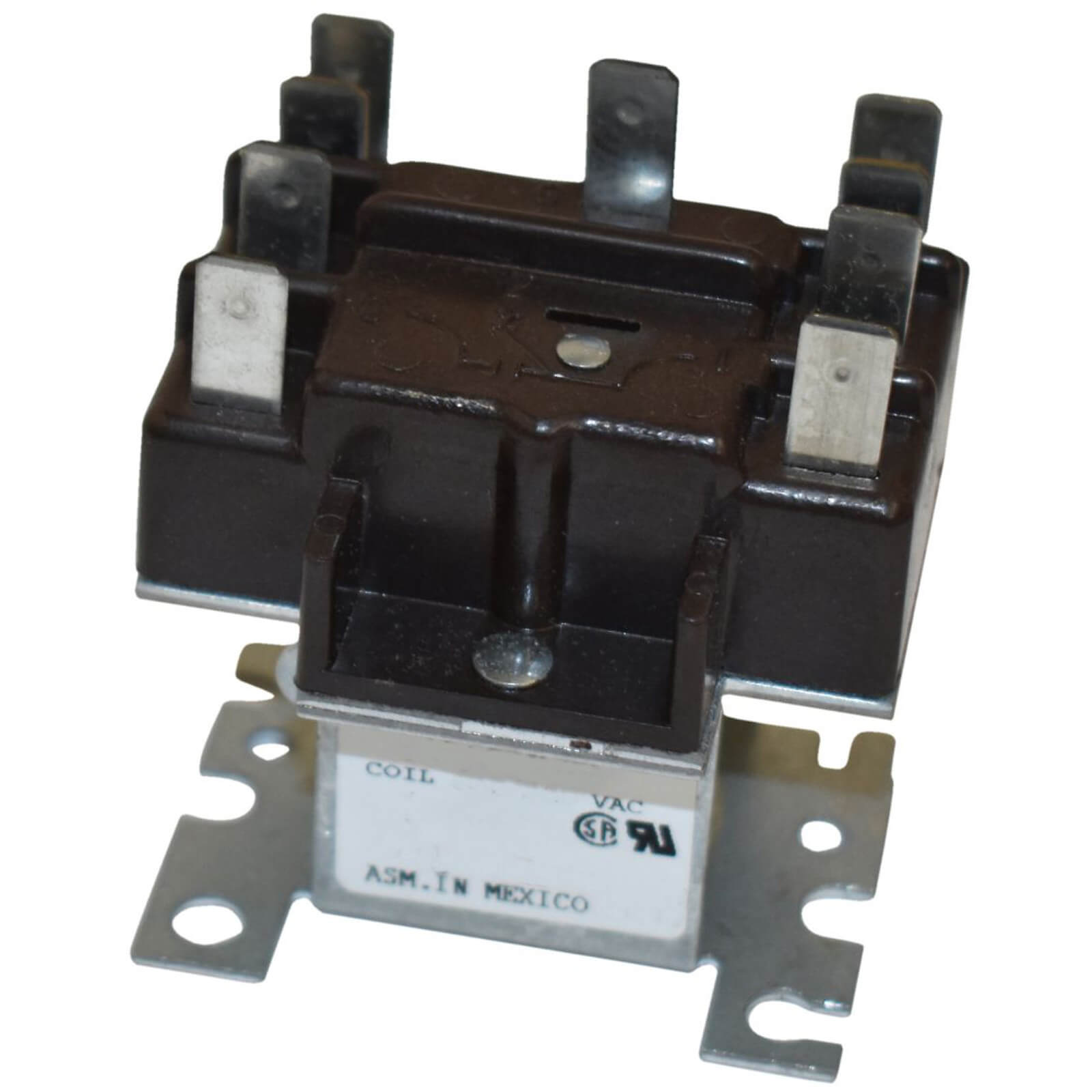

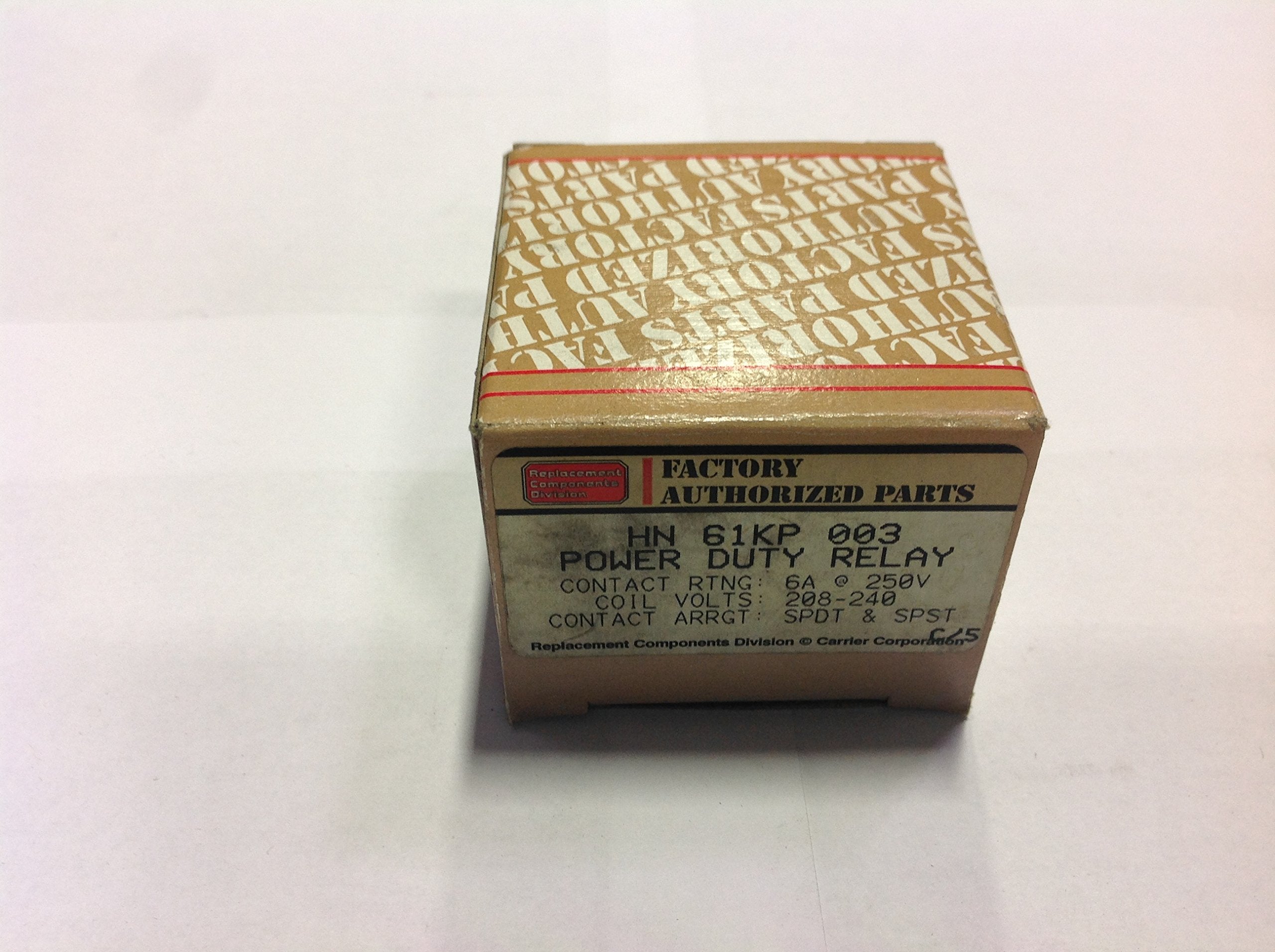

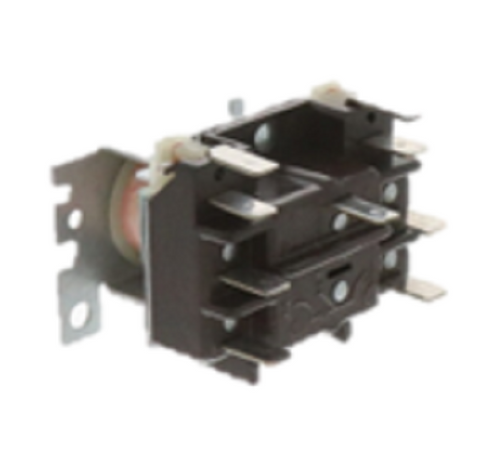

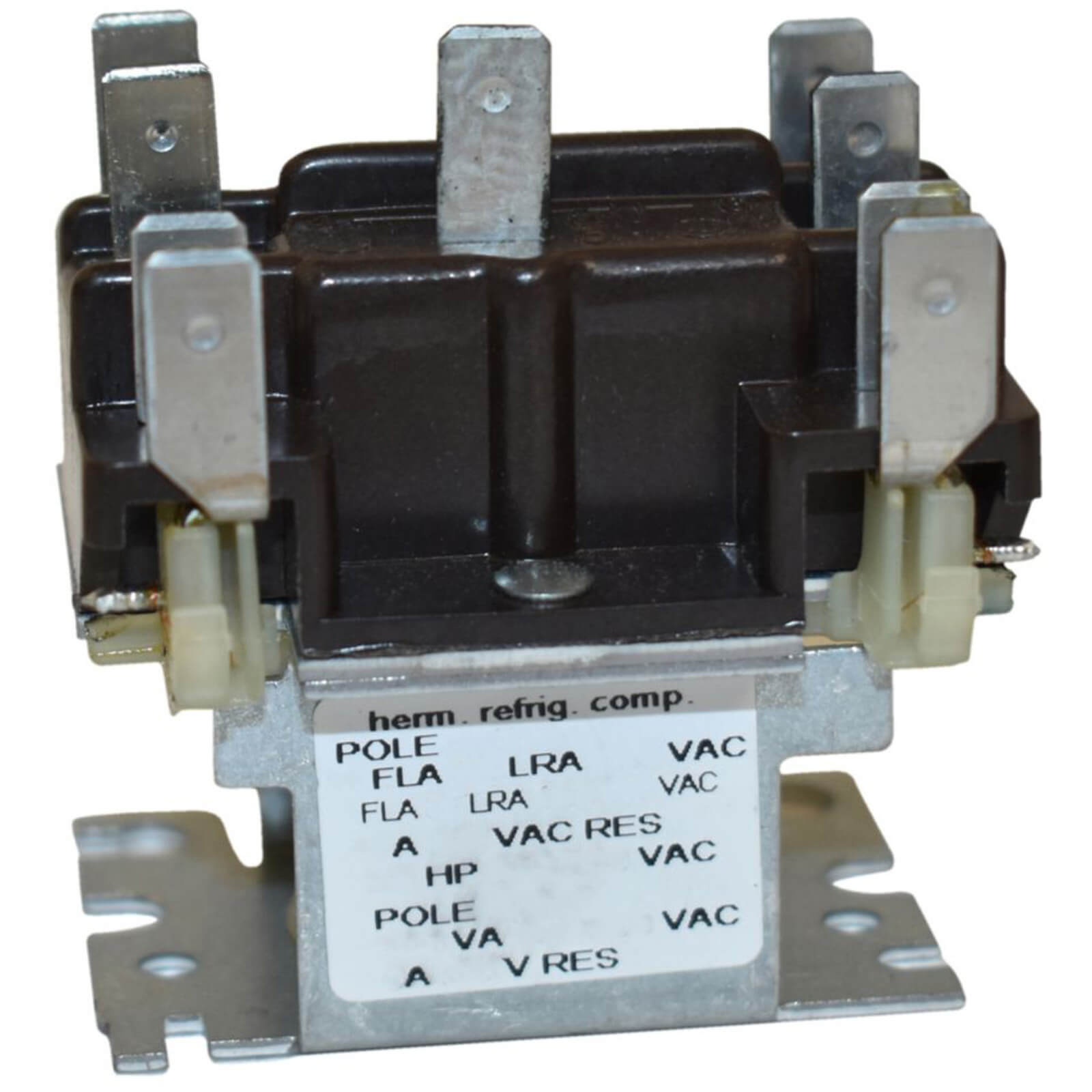

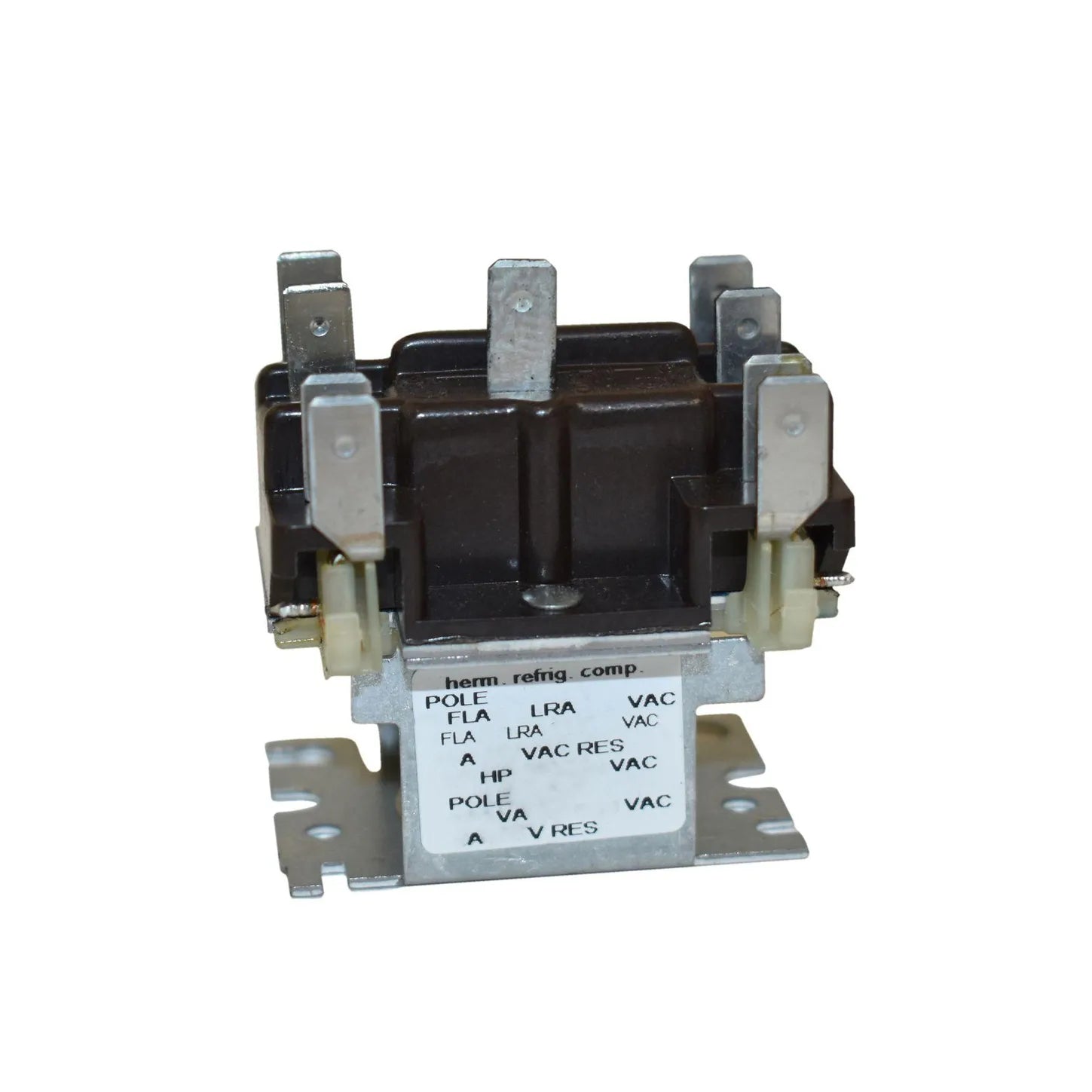

Carrier HN61KP003 Relay Pilot Dty 208/240V 50/60Hz Coil replaces HN61KX010

Product Description

The Carrier HN61KP003 Pilot Relay controls electrical switching for reliable circuit activation, supporting consistent operation across HVAC systems. This 2-pole relay operates with a 208/240 VAC 50/60 Hz coil, ensuring efficient performance. Engineered for resilience, it reduces misfires and electrical losses, helping circuits switch cleanly. It serves as a direct replacement for the HN61KX010 model, ensuring compatibility and reliability for system efficiency.

• Controls electrical switching for reliable circuit activation.
• Supports consistent operation across HVAC systems.
• Direct replacement for HN61KX010 model.

Product Highlights

Reliable 2-pole pilot relay for HVAC systems, featuring 208/240 VAC 50/60 Hz coil operation and direct compatibility with HN61KX010.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HN61KP003
• Country of Origin: Mexico

Technical Specifications

• Brand: Carrier
• MPN: HN61KP003
• Product Type: Pilot Relay
• Manufacturer: Carrier Products
• Frequency: 50/60 Hz
• Poles: 2
• Coil Voltage: 208/240 VAC
• VAC (Poles 4-6): 125 VAC
• Full Load Amperage (125 VAC): 12.0
• Locked Rotor Amperage (125 VAC): 60.0
• VAC (Poles 4-6, Second Rating): 250/277 VAC
• Full Load Amperage (250/277 VAC): 6.0
• Locked Rotor Amperage (250/277 VAC): 35.0
• Resistance (277 VAC, Poles 4-6): 15 Amps
• Max Horsepower: 1/2
• VAC (Poles 1-3): 125/250 VAC
• Volt-Amps (Poles 1-3): 125 VA
• Resistance (277 VAC, Poles 1-3): 3 Amps
• Compatible Models: 50PQ 014 100, 50PQ 012 400, 50PQ 008 600
• Replaces Part Numbers: HN61KX010, HN61KJ503, HN61KK010, HN61KQ003, HN61KQ400, HN61KV003, HN61KV005, HN61KX003, HN61KQ038, HN61KX012, HN61KX005, P283-5901, 2-0699, P283-5903, P283-5904
• SKU: NCX-27656
• Alternate SKU: CS501703
• Alternate Part Number: CAR-HN61KP003
• UPC/EAN: 662441104862
• Parts Town Number: CRRHN61KP003
• Model Number: 9100-234U28
