CARRIER HK44EQ257 ECM Blower Motor Module 1/2 HP

Product Description

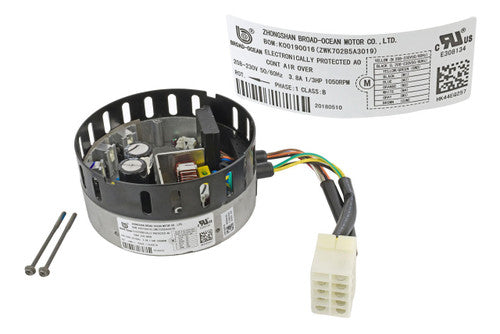

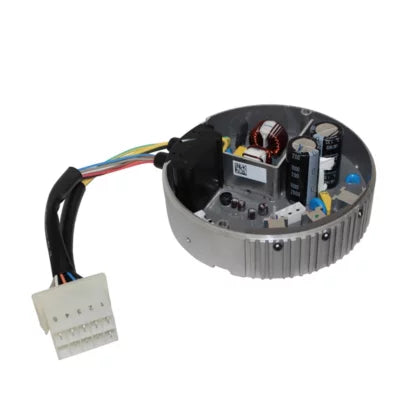

The CARRIER HK44EQ257 is an ECM blower motor module suitable for air circulation systems. This potent motor operates on a voltage of 208-230 and supports 50/60 Hz in a single-phase configuration. It delivers a power output of 1/2 horsepower and runs at a rotational speed of 1050 RPM in a counter-clockwise direction. This module features a compact frame size of 48 and provides Class B insulation. It comes with electronic protection and is specifically designed for continuous air over applications.

• Operates at 208-230 volts with a 50/60 Hz frequency.
• Delivers 1/2 horsepower with a speed of 1050 RPM.
• Engineered for continuous air over applications.

Product Highlights

This motor module is optimized for HVAC systems, ensuring efficient air circulation.

Product Information

Standard Information

• Brand: CARRIER
• Model: HK44EQ257

Technical Specifications

• Horsepower: 1/2
• Voltage: 208-230
• Hertz: 50/60
• Number of Phases: 1
• Amps: 3.8
• RPM: 1050
• Rotation: Counter-Clockwise
• Frame: 48
• Insulation Class: B
• Electronically Protected: Yes
• Continuous Air Over: Yes
• Dimensions: 10.7 inches x 9 inches x 6 inches
• Weight: 3.2 pounds
• Country of Origin: CHN
• UPC: 00822529840437
