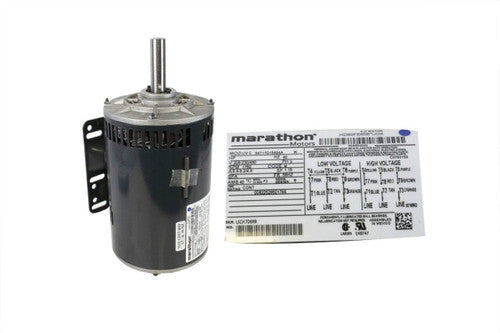

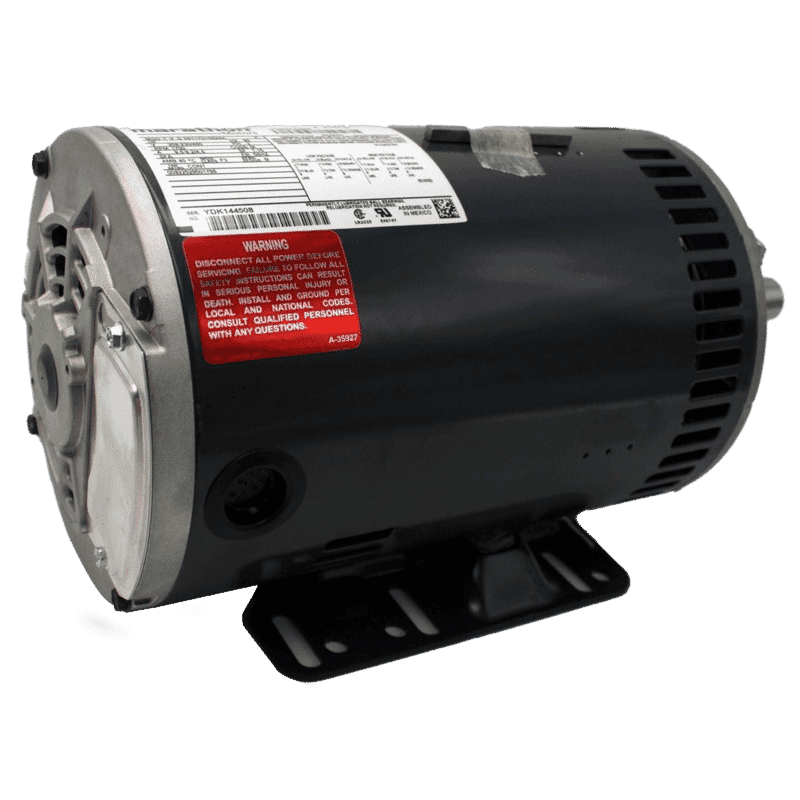

CARRIER HD60FX656 HVAC Blower Motor

Product Description

The CARRIER HD60FX656 blower motor is crucial for air circulation in HVAC systems. This three-phase motor operates at sixty Hertz and runs at one thousand seven hundred fifty RPM. It efficiently distributes temperature within heating and cooling units.

• Promotes air circulation in HVAC systems.
• Operates at 1750 RPM.
• Designed for heating and cooling applications.

Product Highlights

This blower motor is designed for effective use in temperature management within indoor environments.

Product Information

Standard Information

• Brand: CARRIER
• MPN: HD60FX656

Technical Specifications

• Manufacturer: Marathon Motors
• Model: 56T17D15624A
• Horsepower: 3.7 HP
• Service Factor: 1.15
• Input Voltage: 208-230/460V
• Frequency: 60 HZ
• Current: 9.6-9.2/4.6
• RPM: 1750
• Phase: 3 PH
• Frame: 56HZ
• Permanently Lubricated Ball Bearings: True
• Enclosure: Drip Proof
• Insulation Class: F3
• Nema Design: B
• Shaft Diameter: 3/4 inches
• Shaft Length: 2 3/4 inches
