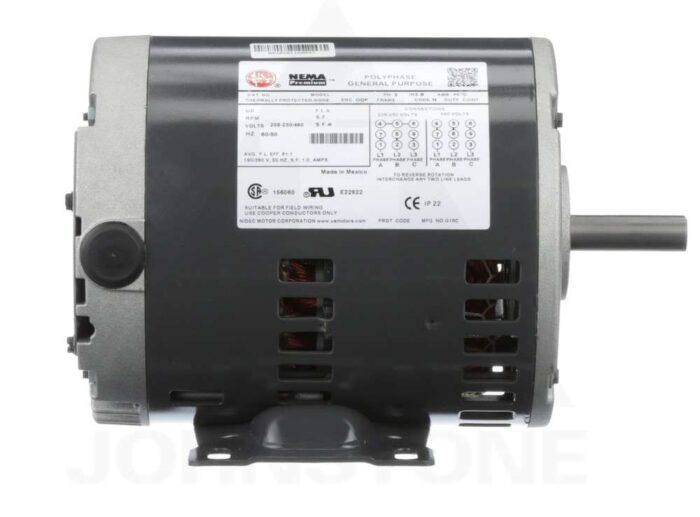

CARRIER HD56DZ851 General Purpose Motor 2 HP

Product Description

The CARRIER HD56DZ851 is a three-phase general purpose motor suitable for various applications, including replacements and new installations. This motor features a single shaft that allows for reversible rotation. It has an open drip proof (ODP) enclosure and operates at a consistent single speed. With a power rating of two horsepower, it supports multiple voltage options including two hundred eight, two hundred thirty, and four hundred sixty volts.

• Three Phase Motor
• Reversible Rotation
• Open Drip Proof (ODP) Enclosure

Product Highlights

This motor is designed for durability and versatility in industrial settings. Its ODP enclosure ensures protection from moisture and dust, making it ideal for both indoor and outdoor use.

Product Information

Standard Information

• Manufacturer Part Number: HD56DZ851
• Product Type: General Purpose Motor

Technical Specifications

• Horsepower: 2 HP
• Phase: Three Phase
• Voltage: 208/230/460
• Amps: 6.0-5.4/2.7
• Frame: 56H
• Enclosure: ODP
• Shaft Diameter: 0.625 inches
• Shaft Length: 1.875 inches
• Rotation: Reversible
• Speeds: 1
• Shaft Type: Single
• Motor Diameter: 6.5 inches
