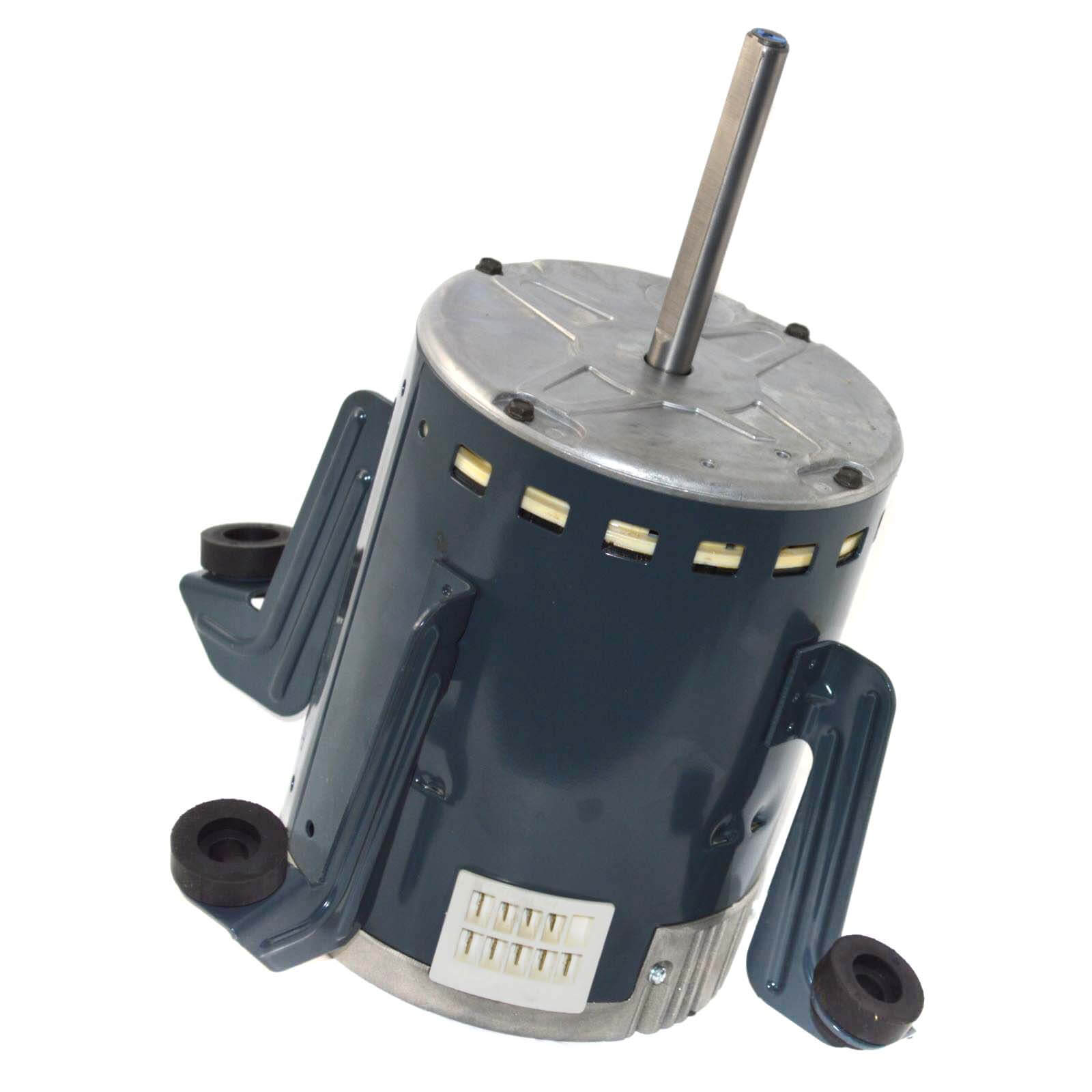

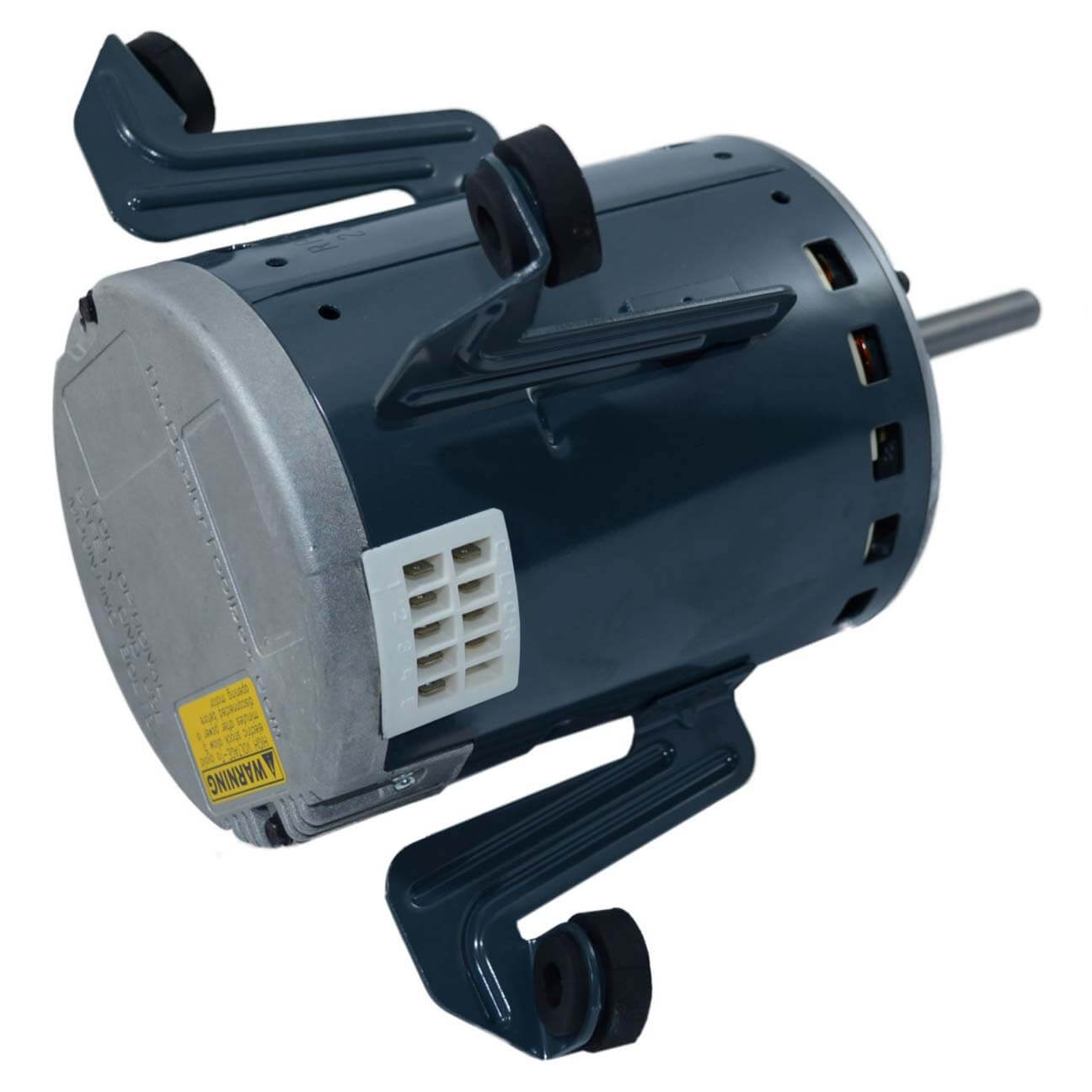

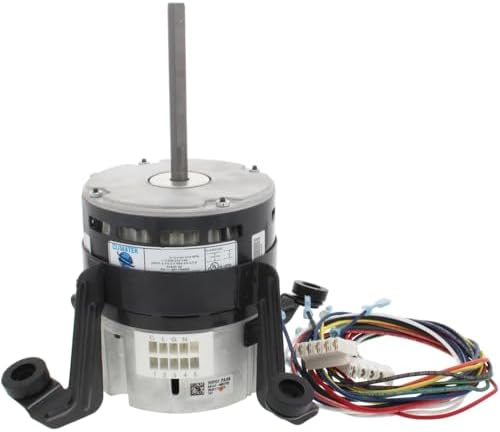

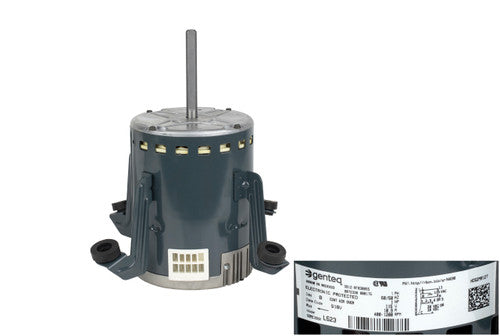

Carrier HD52MR127 direct drive blower motor 1 HP replaced by RC6600064

Product Description

The CARRIER HD52MR127 is an official OEM Direct Drive Blower Motor designed for Carrier HVAC equipment. This 1 HP ECM X-13 Endura Blower Motor Assembly operates at 115V, 60/50 Hz, with an amperage of 10.9A and an RPM range of 400-1200. It serves as a replacement part for various Carrier, Bryant, and Payne models, ensuring proper air circulation in heating and cooling systems. This part has been replaced by RC6600064.

• Official OEM Direct Drive Blower Motor for Carrier HVAC equipment.
• 1 HP ECM X-13 Endura Blower Motor Assembly, 115V, 60/50 Hz, 10.9A.
• Features a 400-1200 RPM range and ball bearings for continuous air over cooling.

Product Highlights

Official OEM 1 HP ECM X-13 Endura Blower Motor Assembly for HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HD52MR127
• Country of Origin: Mexico

Technical Specifications

• Compatible Models: 58CTW110---10122, 58CTW110---11122, 58CTW110---12122, 58CTW135---10122, 58CTW135---11122, 58CTW135---12122, 59TP6A080E211120, 59TP6A080E211220, 59TP6A100E211120, 59TP6A100E211220, 59TP6A120E241122, 59TP6A120E241222, PG8JVB066110ABJA, PG8JVB066135ABJA, PG96VAT60080CBAA, PG96VAT60080CCAA, PG96VAT60100CBAA, PG96VAT60100CCAA, PG96VAT66120DBAA, PG96VAT66120DCAA, 314AAV066110AAJA, 314AAV066110ABJA, 314AAV066135AAJA, 314AAV066135ABJA, 314JAV066110ABJA, 314JAV066135ABJA, 926TA60080V21A-A, 926TA60100V21A-A, 926TA66120V24A-A
• Brand: Carrier
• SKU: HD52MR127
• Manufacturer: Carrier HVAC
• Replaced by Part: RC6600064
• Motor Manufacturer: genteq
• Motor Model: 5SME39SXL523
• Horsepower: 1
• Input Voltage: 115V
• Frequency: 60/50 Hz
• Current: 10.9A
• Phase: Single
• RPM: 400-1200
• Frame: 39
• Electronic Protection: Yes
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Capacitor Needed: None
• Mount: Vertical Shaft Down
• Rotation: Counterclockwise Lead end
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2"
• Shaft Length: 3 15/16"
• Cross Reference Part Numbers: C506Y3448320, 5020428 000025, Class B, Cont Air Over, C15V, 5SME39SX L523, Replacement Components Division, Carrier Corporation, Factory Authorized Parts
