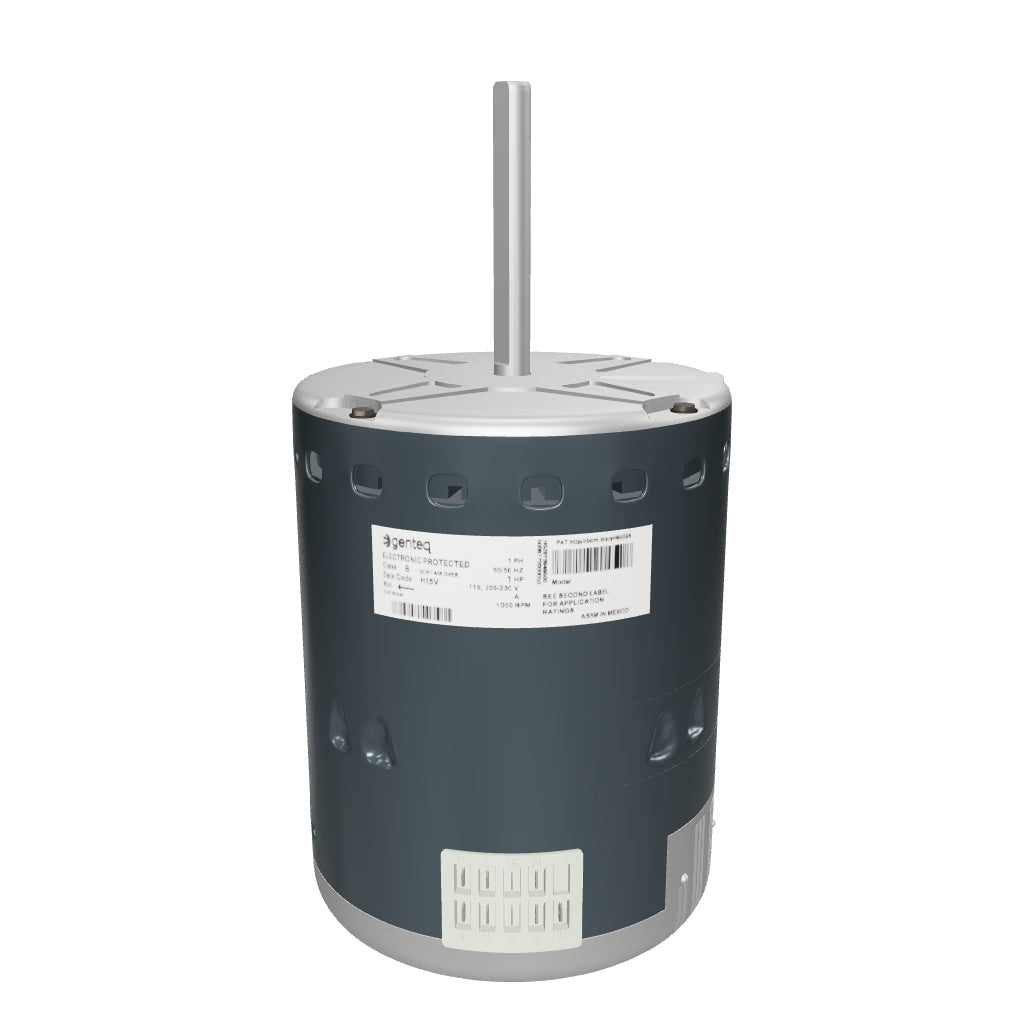

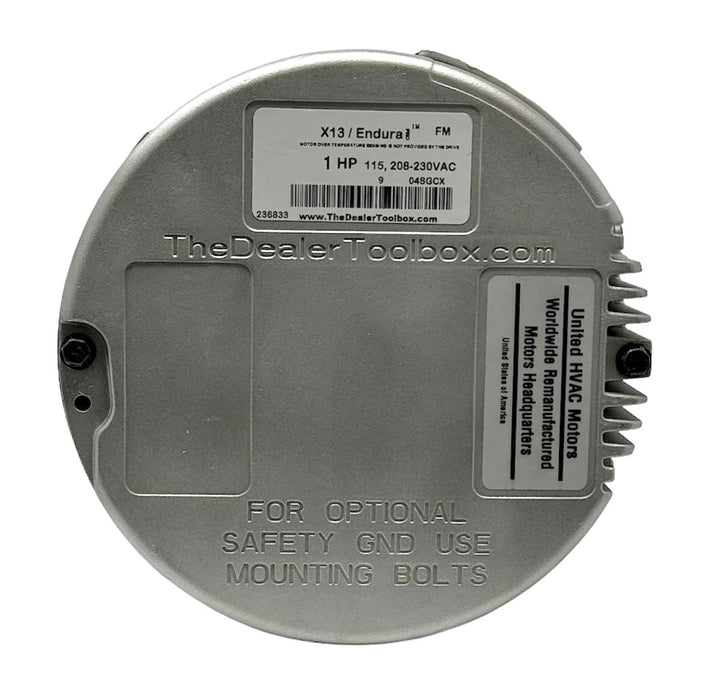

CARRIER HD52LR121 Blower Motor ECM X13 1 HP

Product Description

The CARRIER HD52LR121 is a blower motor designed for HVAC systems. It features an ECM design and operates at one hundred fifteen volts at sixty hertz. Rated at one horsepower, this motor is perfect for various heating and cooling applications.

• Motor type: ECM (Electronically Commutated Motor)
• Power rating: 1 HP
• Mounting style: Vertical shaft down

Product Highlights

This blower motor is built for efficient operation and reliable performance in HVAC systems.

Product Information

Standard Information

• Brand: Factory Authorized Parts
• Model Number: HD52LR121

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Horsepower: 1 HP
• Voltage: 115 VAC
• Cycle/Hertz: 60 Hz
• Phase: Single
• Full Load Amps: 10.9 A
• RPM: 1050
• Rotation: Counter Clockwise (CCW)
• Frame Size: 48
• Shaft Diameter: 0.5 inches (1/2)
• Shaft Length: 4 inches
• Height: 11 inches
• Weight: 17.15 pounds
• Country of Origin: Mexico
• Shipping Weight: 18.14 pounds
• Shipping Dimensions: 7.24 inches length, 16.54 inches width, 6.77 inches height
• UPC: 822529277165
