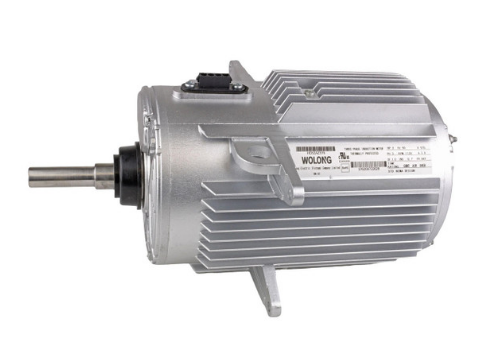

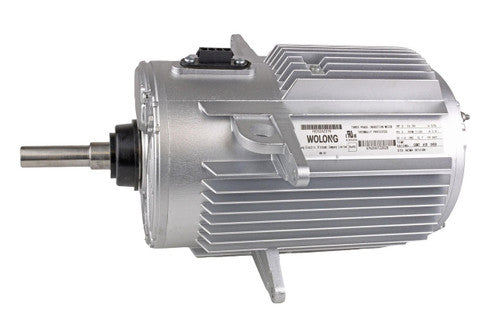

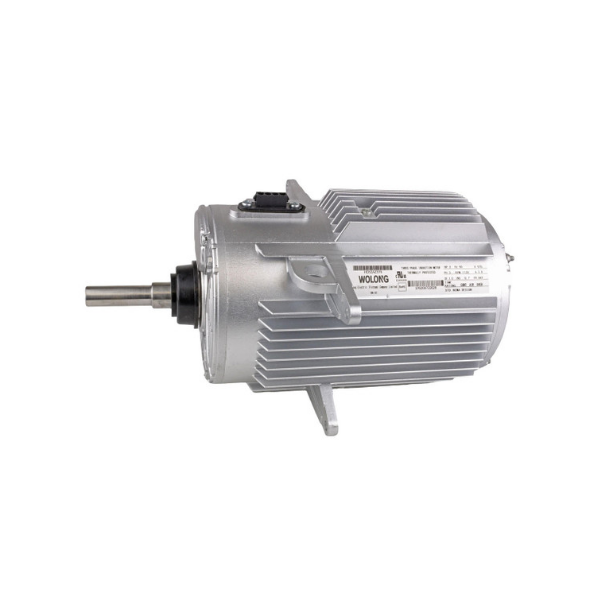

CARRIER HD52AZ576 Motor CF 3HP 3PH

Product Description

The CARRIER HD52AZ576 motor is a reliable three-phase induction motor with a horsepower rating of three. It operates efficiently at five hundred seventy-five volts and sixty Hertz. With a full load amperage of three point eight, this motor is suitable for various mechanical applications. It provides a rotation speed of one thousand one hundred thirty RPM and is built on a fifty-six frame. This motor comes with thermal protection to prevent overheating, ensuring extended service life. The motor is designed for continuous air over applications, making it ideal for HVAC systems.

• Operates at five hundred seventy-five volts and sixty Hertz for compatibility with specific power systems.
• Provides three horsepower for powering various mechanical loads.
• Features thermal protection to prevent overheating and extend service life.

Product Highlights

The CARRIER HD52AZ576 motor is known for its robust performance in demanding environments.

Product Information

Standard Information

• Brand: CARRIER
• Horsepower: 3

Technical Specifications

• Item Number: HD52AZ576
• Voltage: 575
• Hertz: 60
• Number of Phases: 3
• Amps: 3.8
• RPM: 1130
• Frame: 56
• Thermally Protected: true
• Insulation Class: F
• Continuous Air Over: true
• Induction Motor: true
• Manufacturer Name: CARRIER
• Product Number: HD52AZ576
• OEM Part Number: HD52AZ576
• Weight: 49.5 lbs / 22452.8 g
