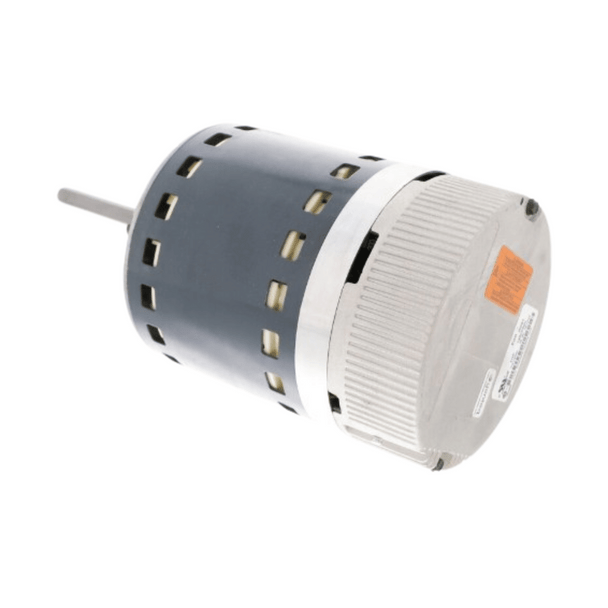

CARRIER HD52AE157 Motor 1 HP 120/240V Replacement MPN

Product Description

The CARRIER HD52AE157 is a motor designed specifically for HVAC systems. This model operates on 120/240V power and delivers one horsepower. It features a counter-clockwise rotation and runs at a speed of 1050 RPM, making it suitable for a variety of applications. The motor incorporates ECM technology and is an ideal replacement part.

• Operates on 120/240V power
• Delivers 1 horsepower
• Counter-clockwise rotation

Product Highlights

This motor is built for efficiency and reliability in heating and cooling systems.

Product Information

Standard Information

• Brand: CARRIER
• MPN: HD52AE157

Technical Specifications

• Horsepower: 1
• Voltage: 120/240V
• RPM: 1050
• Rotation: Counter Clockwise
• Frame: 48
• Mounting: HOR
• Hertz: 50/60
• Number of Phases: 1
• Insulation Class: B
• Electronically Protected: true
• Amps: 12.8
• LRA: 9.1
• Shaft Diameter: 0.50
• Shaft Length: 4.75
• Outer Diameter: 5.5
