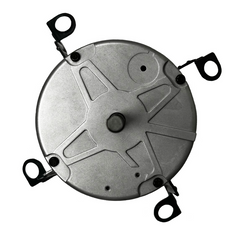

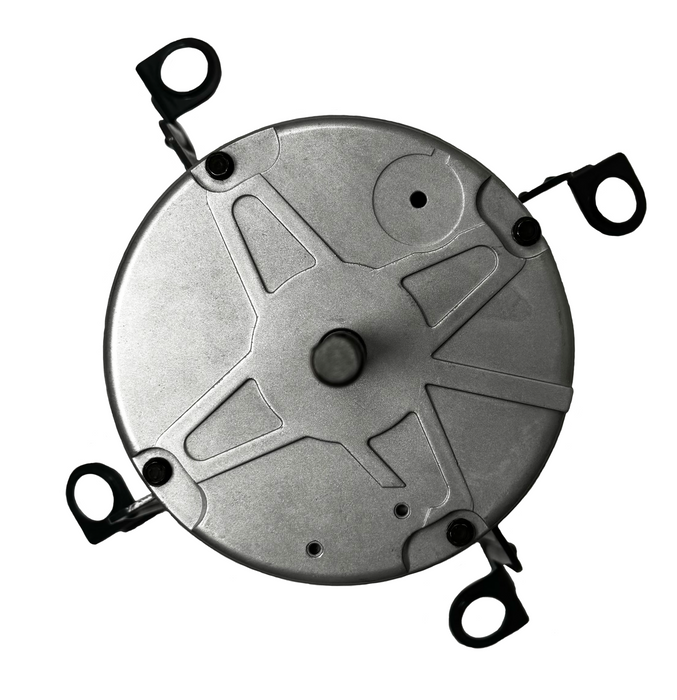

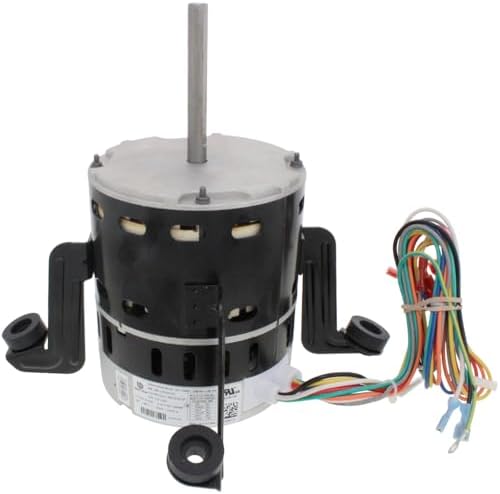

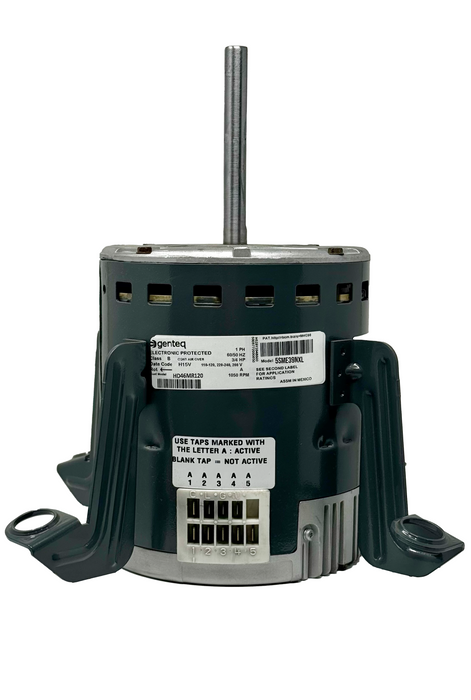

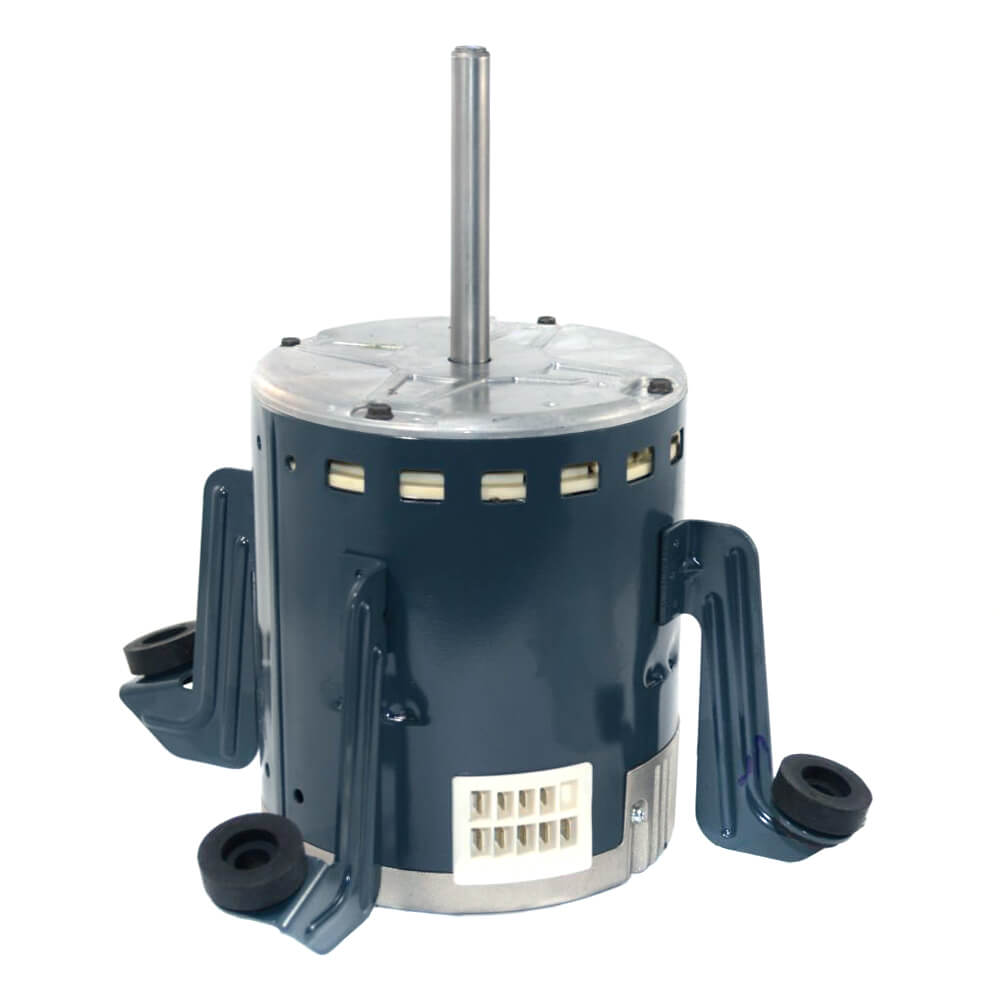

Carrier HD46MR120 Direct Drive Blower Motor 3/4 HP NEMA 48 1050 RPM

Product Description

The CARRIER HD46MR120 is a remanufactured 3/4 HP Direct Drive Blower Motor, operating at 115V. This motor is designed for HVAC systems and features 100% programmed plug-and-play functionality. It has a NEMA 48 frame, a speed of 1050 RPM, and is compatible with specific Carrier units. Weighing 48.0 pounds, it ensures efficient air movement.

• 3/4 HP Direct Drive Blower Motor for HVAC applications.
• Operates at 115V with a 1050 RPM speed.
• Features 100% programmed plug-and-play installation.

Product Highlights

Efficient 3/4 HP Direct Drive Blower Motor with 115V operation and plug-and-play programming.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HD46MR120
• Country of Origin: Mexico

Technical Specifications

• Compatible With: PG8JEA048070AAJA, PG8JEA048070ABJA, PG8MEA048070AAJA, PG8MEA048070ABJA
• Input Voltage: 115V
• Horsepower: 3/4 HP
• Motor Type: Direct Drive Blower Motor
• Programming: 100% Programmed (Plug n Play)
• Remanufactured: Yes
• Frequency: 50 Hz
• Phase: 1 ph
• NEMA Frame: 48
• RPM: 1050 rpm
