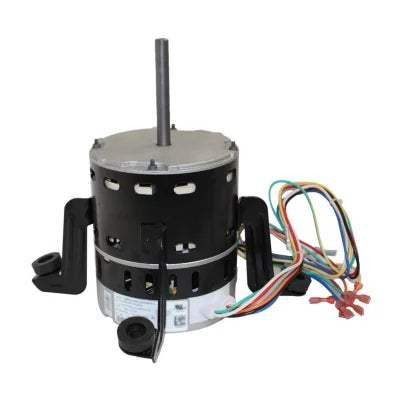

CARRIER HD46MQ141 ECM Motor - 3/4 HP

Product Description

The CARRIER HD46MQ141 is an ECM (Electronically Commutated Motor) specifically designed for HVAC applications. This motor operates at one hundred fifteen to one hundred twenty VAC and 50/60 Hz. It delivers three-quarter horsepower at one thousand fifty RPM and features variable speed control to adapt to different needs. The motor is built with a single-phase configuration and turns in a counter-clockwise direction.

• Operates at 115-120 VAC and 50/60 Hz
• Offers 3/4 HP output at 1,050 RPM
• Shaft diameter of 0.5 inches and shaft length of 3.92 inches

Product Highlights

This motor is suitable for various HVAC systems, providing reliable performance and efficiency.

Product Information

Standard Information

• Brand: CARRIER
• Condition: New

Technical Specifications

• Weight: 14.00 LBS
• Length: 16.25 inches
• Width: 16.25 inches
• Height: 12 inches
• Motor Type: ECM
• Horsepower: 3/4
• RPM: 1,050
• Shaft Diameter: 0.5 inches
• Shaft Length: 3.92 inches
• Voltage: 115-120 VAC
• Phase: Single
• Mounting Type: Arm and Grommet
• NEMA Frame: 48
