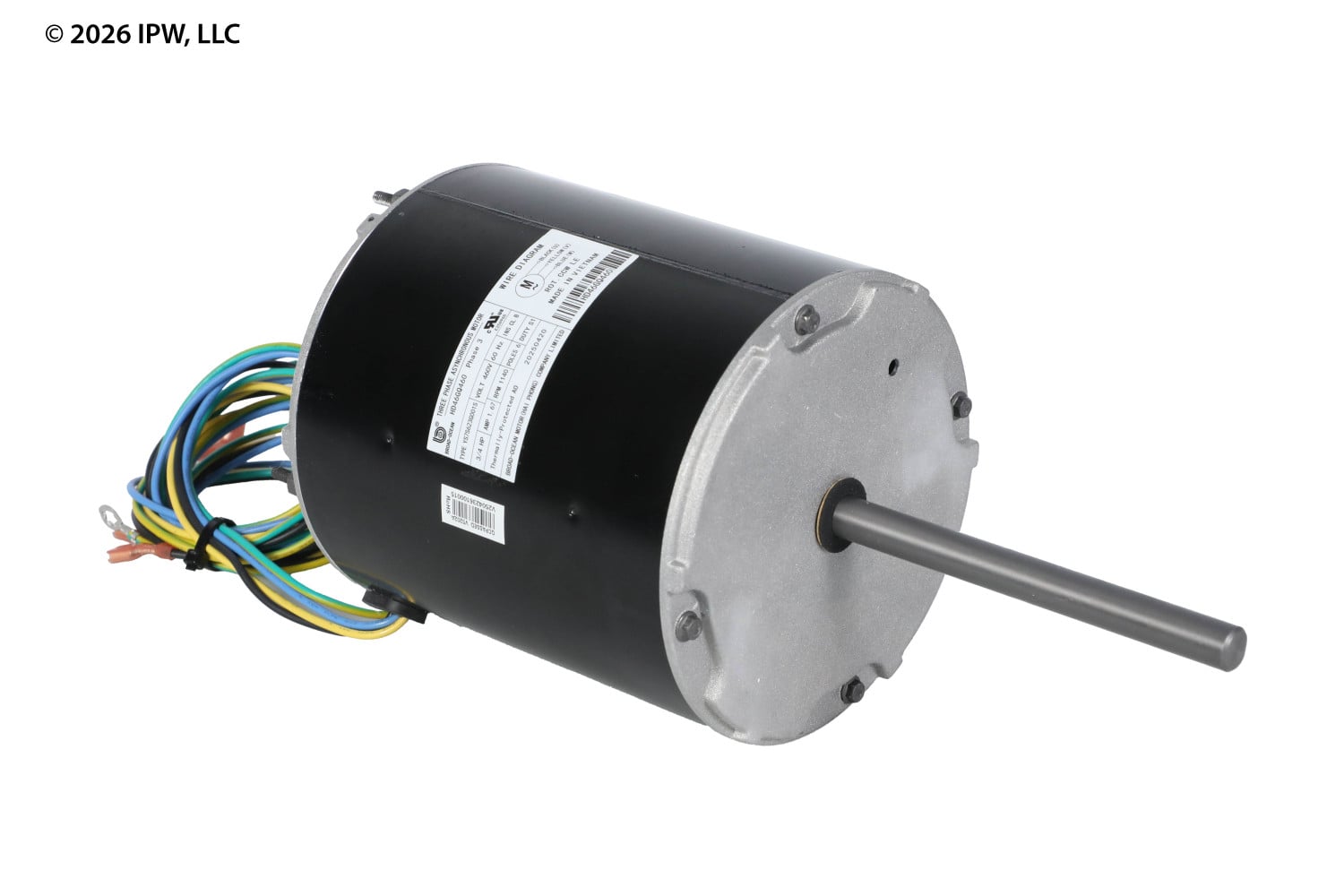

Carrier hd46gq460 Motor 1 Hp 460 Volt 1115 Rpm

Product Description

The CARRIER hd46gq460 is a single-phase motor rated at 1 horsepower and 460 volts, turning at 1115 RPM with a counterclockwise (CCW) rotation. This motor is designed for use in HVAC equipment where consistent, low-speed airflow is required. It serves as a direct replacement in systems that specify a CCW-rotation motor at this voltage and speed. Licensed HVAC technicians handle installation and replacement of motors at this voltage class. The combination of 460-volt operation and sub-1200 RPM speed makes this motor well-suited for commercial or light-commercial air handling and refrigeration applications.

This motor fits into HVAC systems that operate on 460-volt supply circuits, commonly found in commercial installations. The 1115 RPM speed rating places it in the range typically used for condenser fan or evaporator blower applications where quieter, lower-speed operation is preferred. Installations that require counterclockwise shaft rotation as viewed from the shaft end must confirm this orientation before installation to ensure correct airflow direction.

Key Features

• 1 horsepower output for reliable fan and blower drive in HVAC equipment
• 460-volt rated for commercial electrical systems
• 1115 RPM operating speed suited for low-noise, steady airflow applications
• Counterclockwise (CCW) rotation — verify shaft-end orientation before installing

Compatibility

Designed as an OEM-style replacement motor for CARRIER HVAC equipment requiring a 1 HP, 460-volt, 1115 RPM, CCW-rotation motor. Confirm rotation, voltage, horsepower, and shaft dimensions match the original unit before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with 460-volt commercial electrical systems. Disconnect and lock out all power to the unit before removing the existing motor or handling wiring. Verify that the replacement motor shaft diameter, mounting configuration, and rotation direction match the original motor specifications before securing the unit. Follow applicable NEC guidelines for motor branch-circuit protection and wiring at this voltage class.

Technical Specifications

• Horsepower: 1 HP
• Voltage: 460 volts
• Speed: 1115 RPM
• Rotation: Counterclockwise (CCW)

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: hd46gq460
