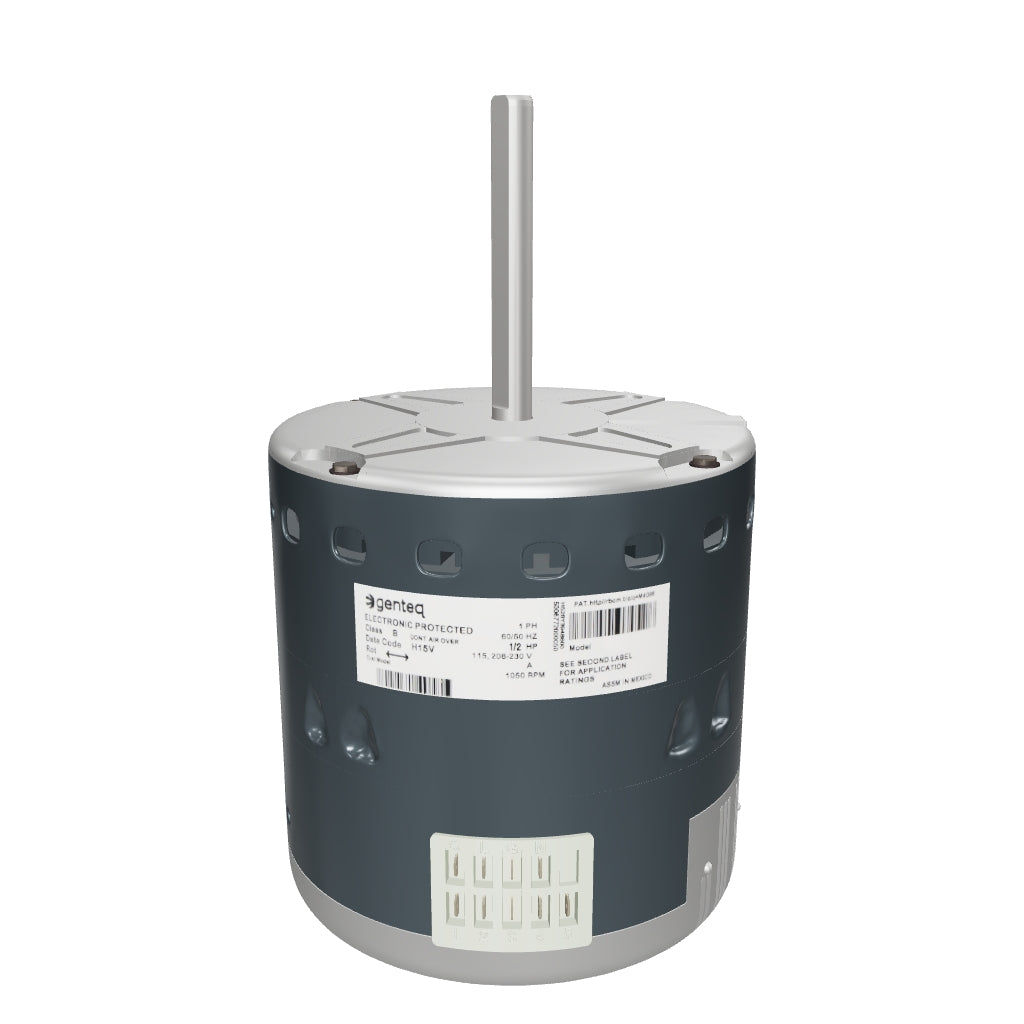

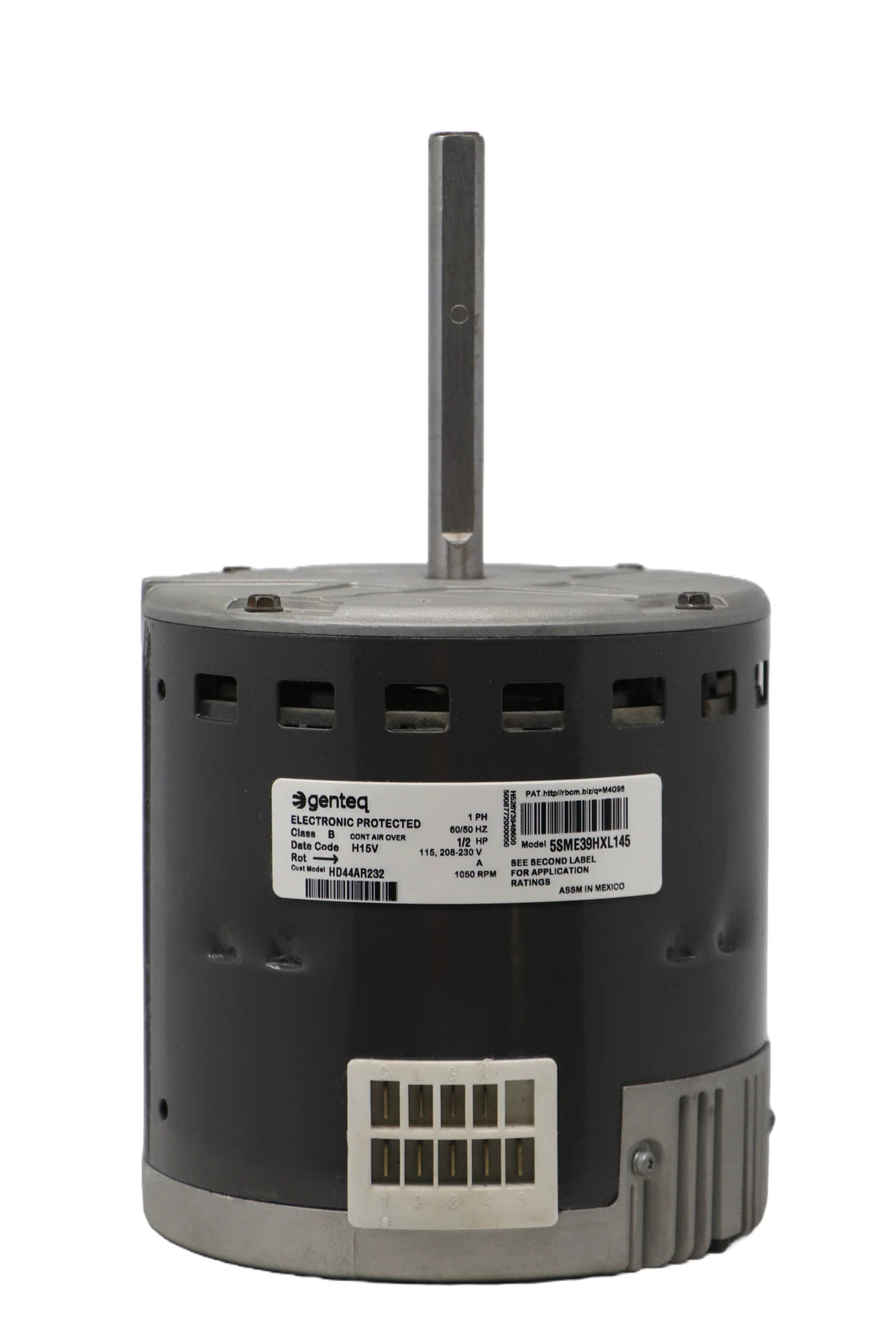

CARRIER HD44AR232 ECM X13 Blower Motor - 1/2 HP

Product Description

The CARRIER HD44AR232 ECM X13 Blower Motor is suitable for HVAC systems. This motor has a power output of one half horsepower and operates at 208/230 volts, with frequency options of fifty or sixty Hertz. It uses single-phase power and draws 4.1 amps during operation. The motor features variable speeds and rotates clockwise at one thousand fifty RPM. It is designed with a forty-eight frame, a shaft diameter of one half inch, and a shaft length of three and seven eighths inches. The overall dimensions include a height of nine and three fourths inches, a length of five and one half inches, and a width of five and one half inches. The diameter of the motor is five and five eighths inches. This motor is a direct replacement, requiring no new wiring or field programming.

• ECM X13 blower motor with a horsepower of 1/2.
• Operates at 208/230 voltage and 50/60 Hz.
• Direct replacement that requires no new wiring or field programming.

Product Highlights

This blower motor is easy to install and is designed for efficient performance in heating and cooling environments.

Product Information

Standard Information

• Manufacturer: Genteq
• Manufacturer Part #: 5SME39HXL145

Technical Specifications

• Horsepower: 1/2
• ECM Version: X-13
• Voltage: 208/230
• Hertz: 50/60
• Number of Phases: 1
• Amps: 4.1
• RPM: 1050
• Number of Speeds: Variable
• Rotation: CW
• Frame: 48

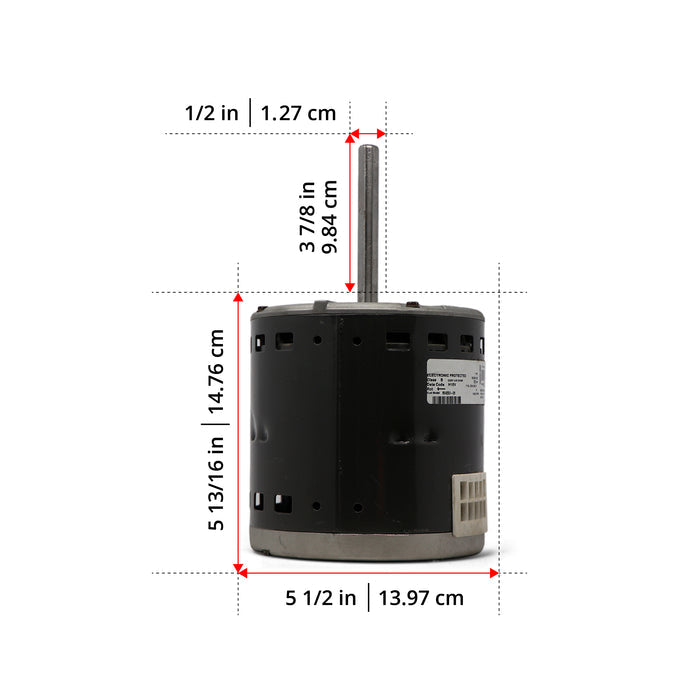

• Shaft Diameter: 1/2
• Shaft Length: 3-7/8
• Height: 9-3/4
• Length: 5-1/2
• Width: 5-1/2
• Diameter: 5 5/8 (Frame 48Y)
