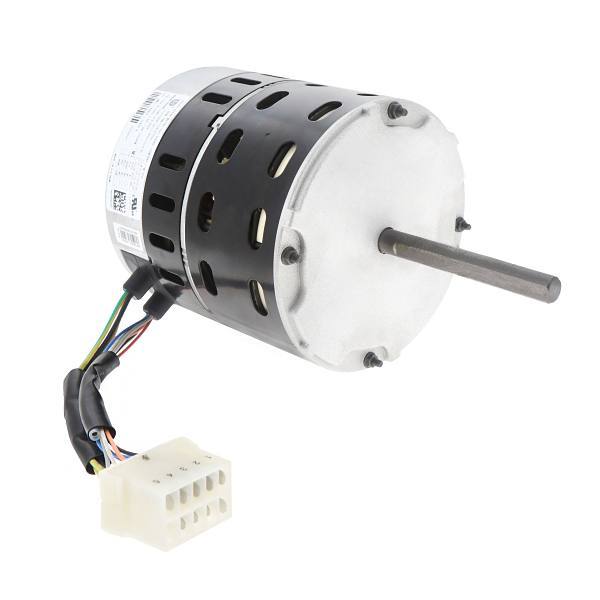

CARRIER HD44AQ280 ECM Blower Motor Assembly 0.5 hp

Product Description

The Carrier HD44AQ280 is an ECM blower motor assembly designed for heating and cooling systems. This motor assembly serves as a reliable replacement part with a power rating of one half horsepower. It operates at a voltage of 208-230 volts and supports variable speed control for optimal performance. The motor features both clockwise and counterclockwise shaft rotation, providing excellent versatility in installation.

• ECM blower motor assembly for HVAC systems
• Motor horsepower: 0.5 hp
• Voltage: 208-230 V

Product Highlights

This ECM blower motor assembly enhances airflow efficiency and ensures smooth operation in various HVAC applications.

Product Information

Standard Information

• Country of Origin: Vietnam
• Package Quantity: 1

Technical Specifications

• Horsepower: 0.5 hp
• Voltage: 208-230 V
• Amperage: 4.1 amp
• Frame: 48
• Maximum RPM: 1050 RPM
• Motor Design: ECM
• Motor Mounting Type: Belly Band
• Motor Shaft Rotation: CW/CCW
• Name Plate RPM: 1050 RPM
• Number of Phases: 1
• Number of Speeds: Variable
• Shaft Diameter: 0.5 in.
• Shaft Length: 3.92 in.
• Product Depth: 14.5 in.
• Product Height: 7.5 in.
• Product Width: 7.2 in.
