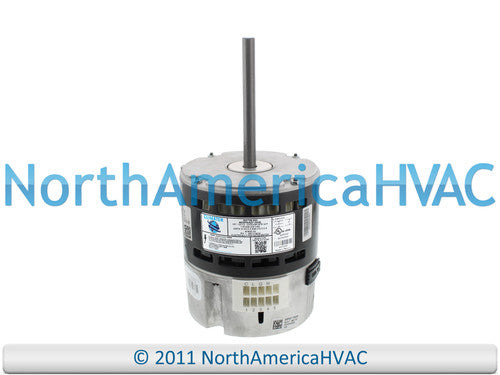

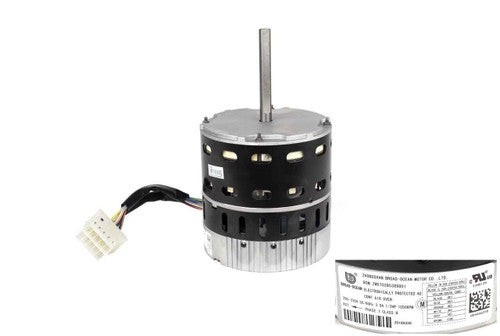

CARRIER HD44AQ258 ECM X-13 Furnace Blower Motor Assembly - 1/2 HP

Product Description

The CARRIER HD44AQ258 is an ECM X-13 furnace blower motor assembly with a power rating of one-half horsepower. This motor operates on 208-230 volts and is designed for both 50 and 60 hertz applications. The assembly is manufactured by Zhongshan Broad-Ocean Motor Co., LTD., ensuring quality and performance.

• Rated at 1/2 HP with a single-phase design
• Amperage of 3.80, rotating counterclockwise at 1050 RPM
• Easy installation without the need for new wiring

Product Highlights

The CARRIER HD44AQ258 simplifies maintenance and offers reliable operation. With its electronic protection and air-over cooling, this unit is well-suited for various HVAC systems.

Product Information

Standard Information

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Condition: New

Technical Specifications

• Model: ZWK702B5389801
• Horsepower: 1/2 HP
• Voltage: 208-230 volt
• Hertz: 50/60
• Amperage: 3.80
• Phase: Single
• RPM: 1050
• Frame: 48
• Electronically Protected: True
• Motor Cooling: Air Over
• Insulation Class: B
• Bearings: Ball
• Mount Type: Belly Band
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Length: 3 15/16
• Motor Diameter: 5 5/8 (Frame 48Y)
