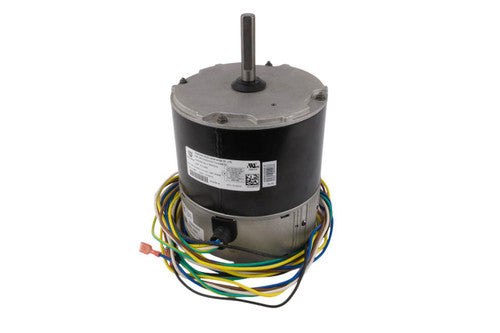

Carrier HC42GQ230 ECM Motor 1/3 HP

Product Description

The Carrier HC42GQ230 is an ECM motor designed for various Carrier models. This motor serves as a replacement part with a power rating of 1/3 horsepower. It operates at 208 to 230 volts and a frequency of sixty Hertz with a single-phase supply. The motor features clockwise rotation and is equipped with electronic protection for reliable performance.

• ECM motor for efficient performance
• Single-phase power supply for easy installation
• Clockwise rotation for compatibility

Product Highlights

The Carrier HC42GQ230 ECM motor provides a reliable solution for HVAC systems, enhancing energy efficiency.

Product Information

Standard Information

• Manufacturer: Broad-Ocean
• Country of Origin: China

Technical Specifications

• MPN: HC42GQ230
• Horsepower: 1/3
• Input Voltage: 208-230
• Frequency: 60
• Current: 2.4-2.6
• RPM: 1050
• Rotation: CW
• Frame: 48
• Shaft Diameter: 1/2 inches
• Shaft Length: 2-5/8 inches
• Insulation Class: B
• Bearing: Ball
• Mounting Type: Through Bolts
• Electronically Protected: True
• Continuous Air Over: True
