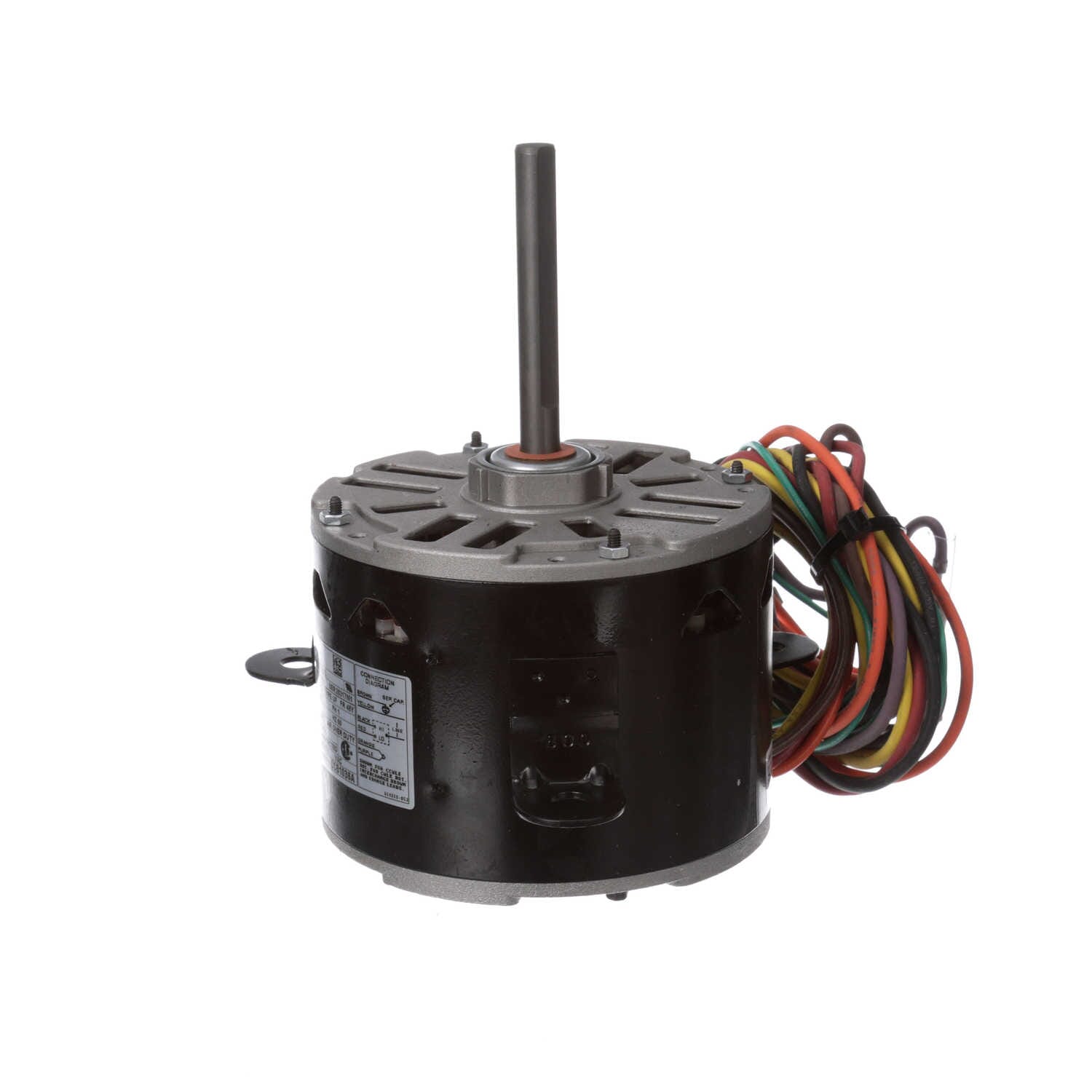

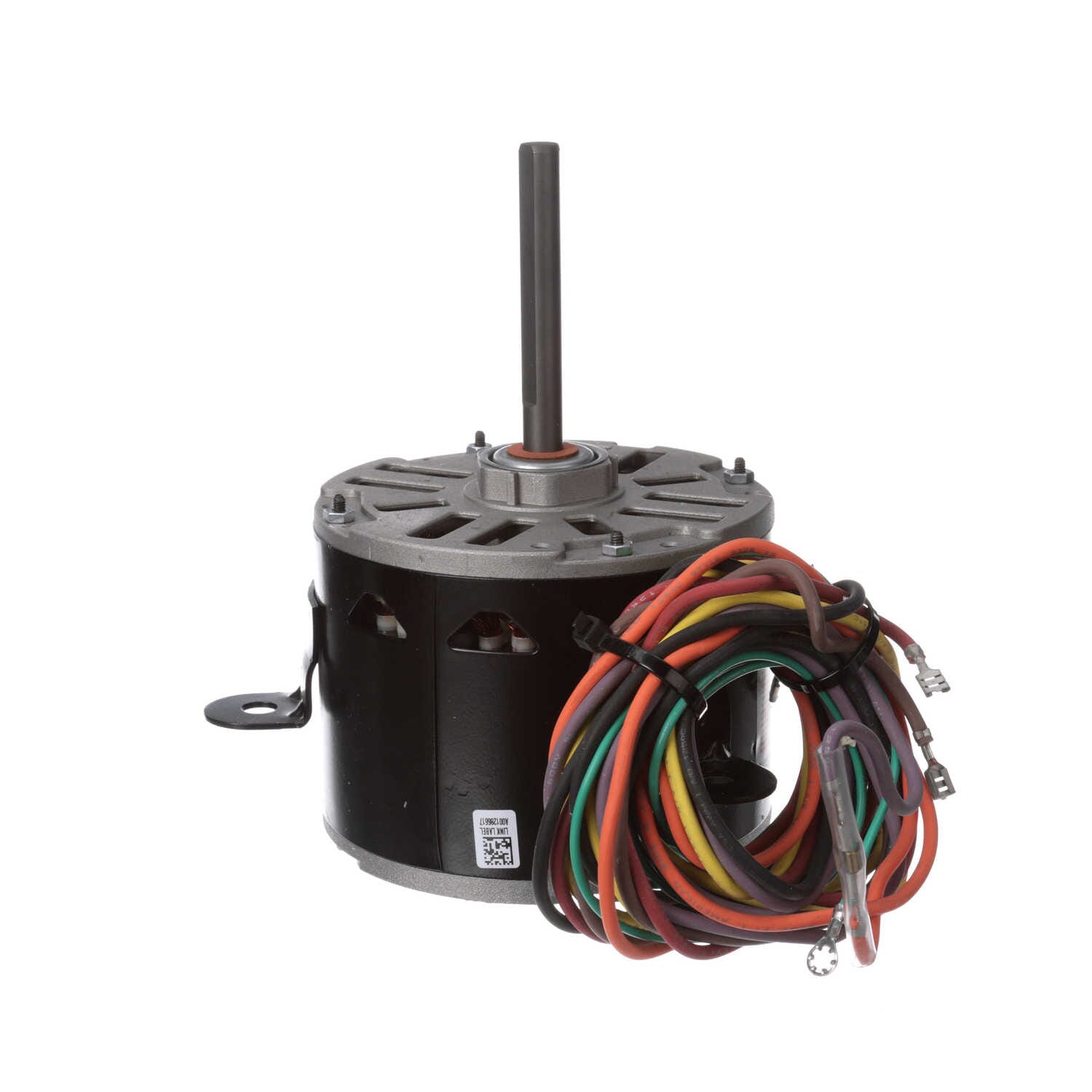

CARRIER HC41VB701 Motor 2-Speed 230V Replacement MPN

Product Description

The CARRIER HC41VB701 is a motor designed for use with Carrier, Bryant, and Payne systems. This model is a 2-speed, 230V PSC motor with pre-mounted lugs to ease installation. It serves as a direct replacement for the Emerson K55HXLKK-5918 motor. Please note that the capacitor is sold separately.

• 2-speed PSC motor
• Voltage rated at 208-230V
• Pre-mounted lugs included for easy installation

Product Highlights

This motor is suitable for various HVAC applications and ensures reliable performance.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: MEXICO

Technical Specifications

• MPN: HC41VB701
• Speeds: 2
• Voltage: 208-230
• Motor Type: PSC
• Mounting Type: Lug Mount
• Phase: Single
• Frequency: 60 Hz
• Horsepower: 1/3
• Full Load Amps: 2.50
• RPM: 1075
• Rotation: Reversible
• Enclosure: OAO
• Frame Size: 48Y
• Shaft Diameter: 1/2 inches
• Shaft Length: 4-3/8 inches
• Diameter: 5-5/8 inches
• Bearing Type: Slv
• Service Factor: 1.00
• Insulation Class: B
• Thermal Protection: Auto
• Operating Temperature: 40°C
• Efficiency: 60%
• Weight: 16.0 lbs
• Agency Certification: UR/CSA
