Carrier HC41TQ113 Furnace Blower Motor 1/3 HP HB41TQ113

Product Description

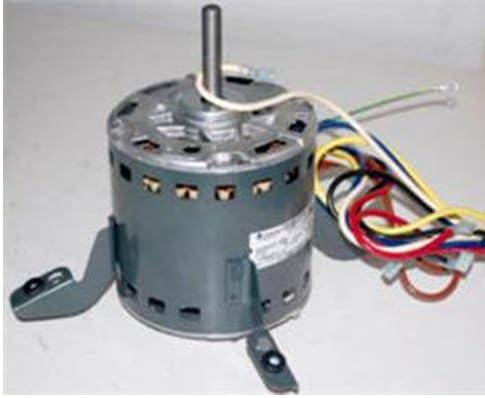

The CARRIER HC41TQ113 is an OEM upgraded furnace blower motor designed for HVAC equipment. This 1/3 HP, 115 Volt direct drive motor features a copper material construction and operates at 1075 RPM. It is a replacement part for various Carrier, Bryant, and Payne furnace models, ensuring efficient air circulation within heating and cooling systems. This motor is thermally protected and designed for easy installation.

• OEM upgraded furnace blower motor for HVAC systems
• 1/3 HP, 115 Volt operation with 3 speeds
• OEM wiring color code and mounting for straightforward installation

Product Highlights

OEM upgraded direct drive furnace blower motor for Carrier, Bryant, and Payne HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC41TQ113

Technical Specifications

• Brand: Carrier
• Manufacturer: Carrier Bryant Payne
• Part Number: HC41TQ113
• Voltage: 115 Volts
• Horsepower: 1/3 HP
• Material: Copper
• Hertz: 60
• Rotation: Counter Clockwise Lead End
• RPM: 1075
• Speed: 3
• Class: B
• Phase: 1
• FLA: 5.2
• Shaft Diameter: 0.5 inches
• Shaft Length: 3.2 inches
• Frame: 48
• Bearing: Sleeve
• Mount: Arm and Grommet
• Capacitor: 7.5 or 10.0 MFD @ 370 VAC
• Replaced by Part: HB41TQ113
• Replaces Old Part Numbers: HC41TE113, HB41TQ113
• Motor Type: Direct Drive Blower Motor
