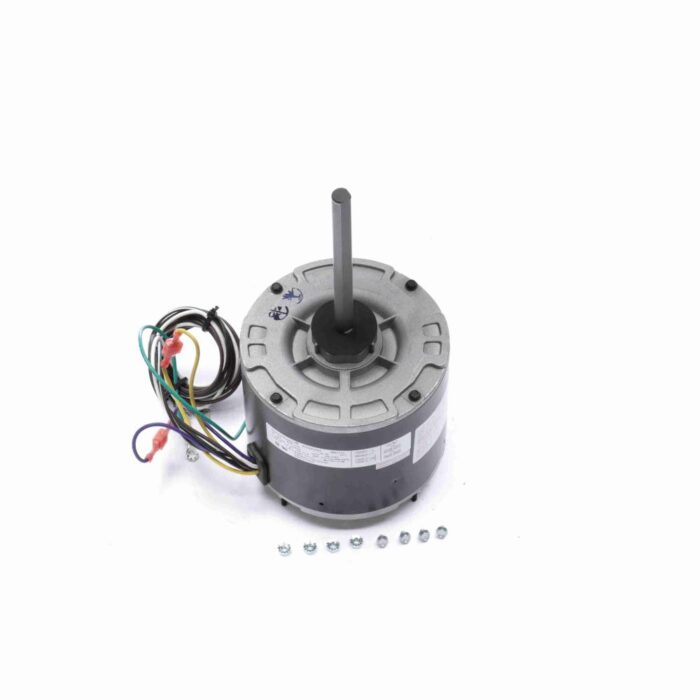

CARRIER HC41ME702 Condenser Fan Motor 1/3 HP 5 5/8 inches

Product Description

The CARRIER HC41ME702 is a single-phase condenser fan motor built for various cooling applications. It features a horsepower of one-third and operates within a range of nine hundred to twelve hundred RPM. The motor dimensions include a diameter of five and five-eighths inches and a shaft measuring one-half inch in diameter with a three-point one-inch extension. This unit is designed to operate at two hundred eight to two hundred thirty volts and comes in a Totally Enclosed Air Over (TEAO) enclosure.

• Condenser fan motor aids in efficient cooling.
• Compatible with a five microfarad, three hundred seventy volt capacitor.
• Durable design in a TEAO enclosure for protection.

Product Highlights

This motor is essential for optimal performance in air conditioning systems, improving energy efficiency and reliability.

Product Information

Standard Information

• Weight: 14 pounds
• Phase: Single phase

Technical Specifications

• Horsepower: 1/3
• Voltage: 208-230V
• RPM Range: 910 - 1200
• Diameter: 5 5/8 inches (Frame 48Y)
• Shaft Diameter: 1/2 inches
• Shaft Extension: 3.1 inches
• Capacitor: 5 uf 370 volt
• Enclosure: TEAO (Totally Enclosed Air Over)
