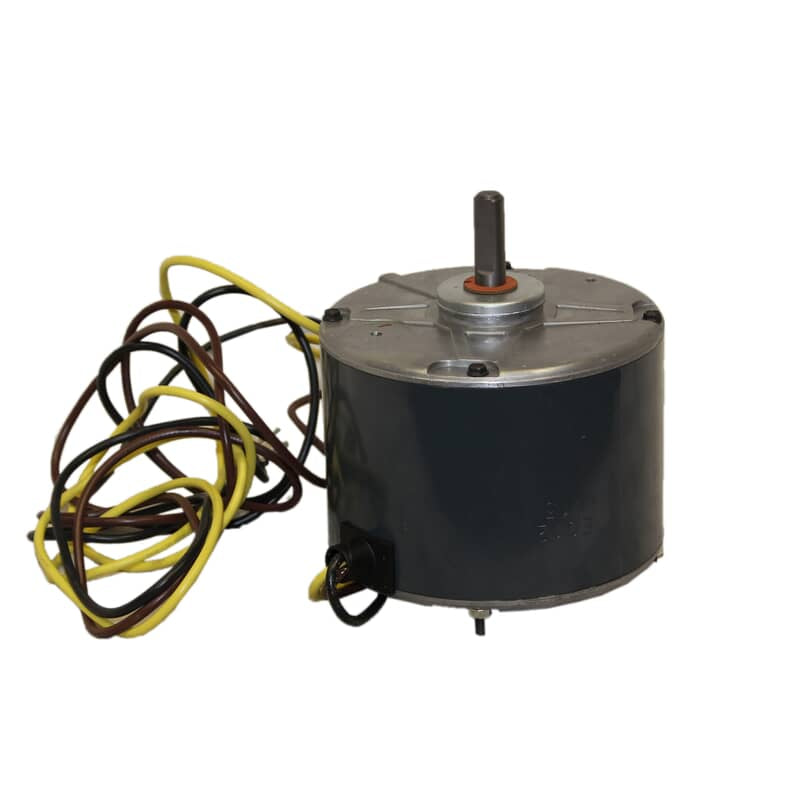

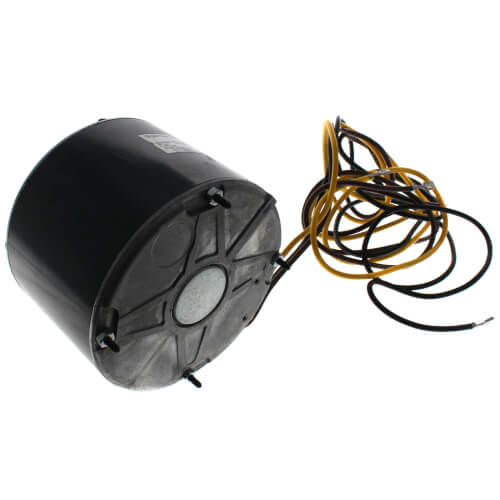

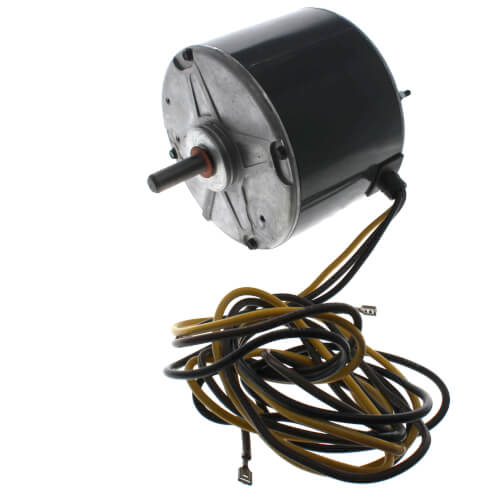

Carrier HC39GR234 Cond. Fan Motor 1/4 HP 1100RPM 208/230V 48FR CW CRRHC39GE238

Product Description

The CARRIER HC39GR234 Cond. Fan Motor is a genuine OEM replacement part for Carrier HVAC systems. This 1/4 HP motor operates at 1100 RPM with a 208/230V power supply, featuring a CW rotation and a 48 frame. It is designed for condenser fan applications, ensuring proper airflow and system performance in HVAC units. This motor is a direct replacement, maintaining system integrity.

• Genuine OEM replacement part for Carrier HVAC.
• Operates at 208/230V with 1/4 HP and 1100 RPM.
• Features CW rotation and a 48 frame for condenser fan applications.

Product Highlights

This motor is designed to meet Carrier Corporation specifications, ensuring proper system operation and airflow.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC39GR234
• Country of Origin: United States

Technical Specifications

• Manufacturer: Carrier HVAC
• MPN: HC39GR234
• Parts Town MPN: CRRHC39GR234
• Replaced By MPN: CRRHC39GE238
• Input Voltage: 208/230V
• Horsepower: 1/4
• RPM: 1100
• Rotation: CW
• Frame: 48
• Frequency: 60 hz
• Motor Type: Condenser Fan Motor
• Full Load Amps: 1.5
• Bearing Type: Ball
• Duty Cycle: (S1) Continuous Running Duty
• Insulation Class: B
• Mounting Type: Thru-Bolt
• Number of Speeds: 1
• Phase: Single
• Prop 65: false
• Protection: Yes
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 1.5"
• Material: Steel; Copper
• Rotation View Basis: Lead End
• Certifications: CSA Listed
