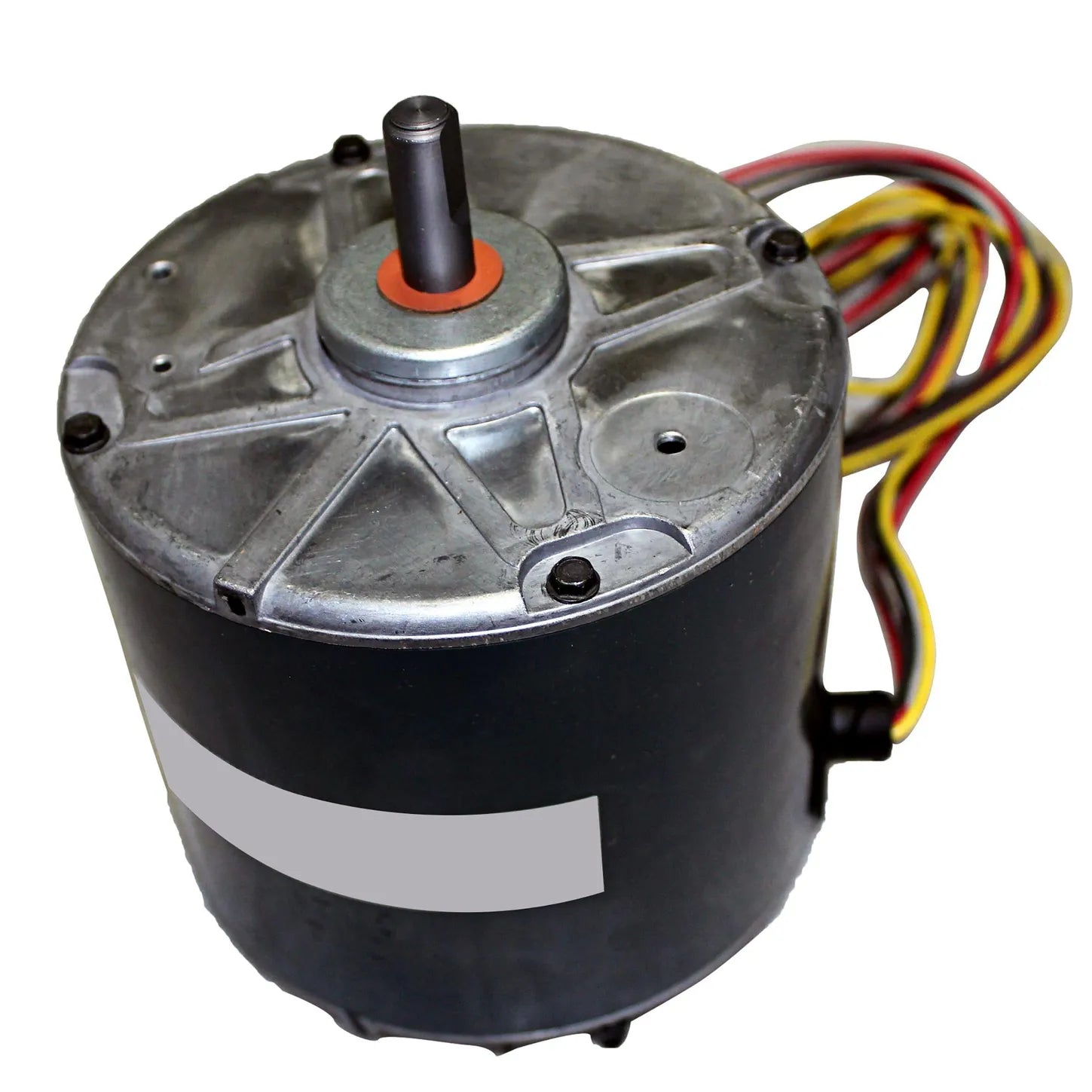

Carrier HC39GR233 Motor 1/4 hp 230v 5 5/8 inches 825 rpm Replaces HC39GR233A

Product Description

The Carrier HC39GR233 motor is a genuine OEM replacement part for various Carrier, Bryant, and Payne models. This 2-speed condenser fan motor operates at 1/4 HP, 208-230V, and 825 RPM. It features a 5 5/8 inch diameter (Frame 48Y) and a 1.25 inch shaft extension, with counter-clockwise rotation when shaft is up. It is designed to replace older part numbers like HC39GR233A, ensuring proper function in HVAC applications.

• Genuine OEM part for reliable performance.
• Features 2-speed operation for versatile use.
• Designed for 1/4 HP, 208-230V, 825 RPM applications.

Product Highlights

Genuine OEM Carrier HC39GR233 2-speed condenser fan motor, 1/4 HP, 208-230V, 825 RPM, replacing HC39GR233A.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC39GR233

Technical Specifications

• Brand: Carrier
• SKU: HC39GR233
• Condition: New
• Type: Motor
• Horsepower: 1/4 HP
• Voltage: 208-230V
• RPM: 825
• Diameter: 5 5/8 inches (Frame 48Y)
• Shaft Extension: 1.25 inches
• Rotation: Counter clockwise (when shaft up)
• Wiring: Four wires into a plastic plug
• Replaces Part Numbers: HC39GR233, HC39GR233A
