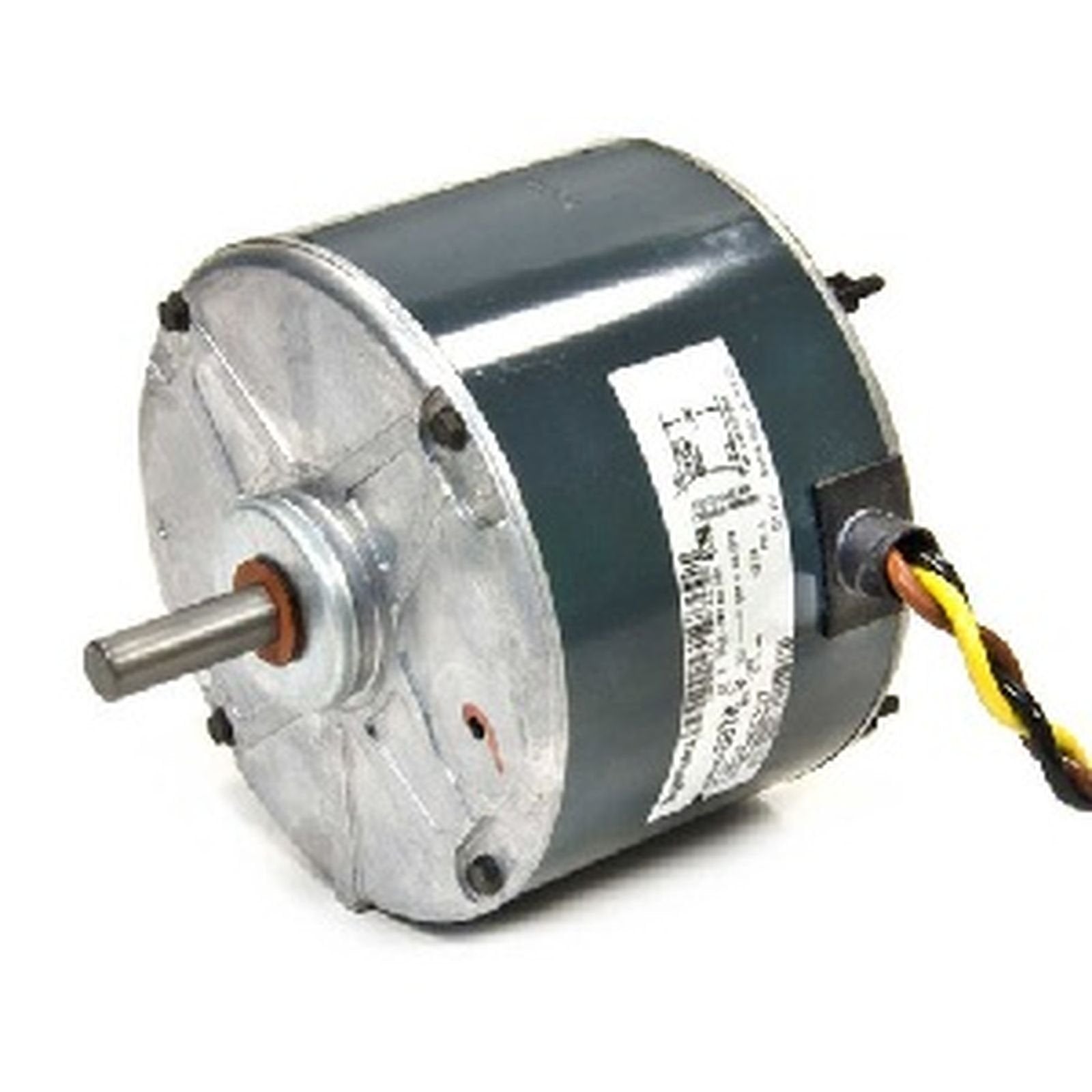

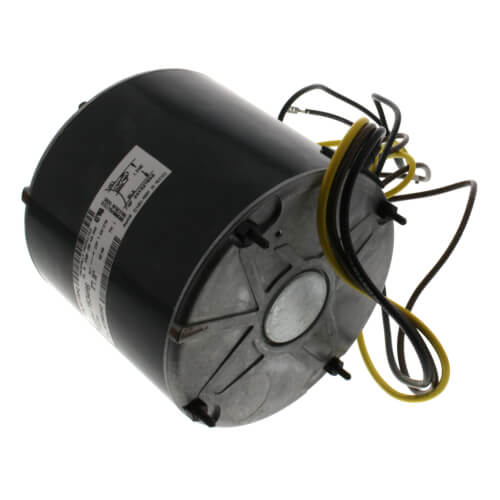

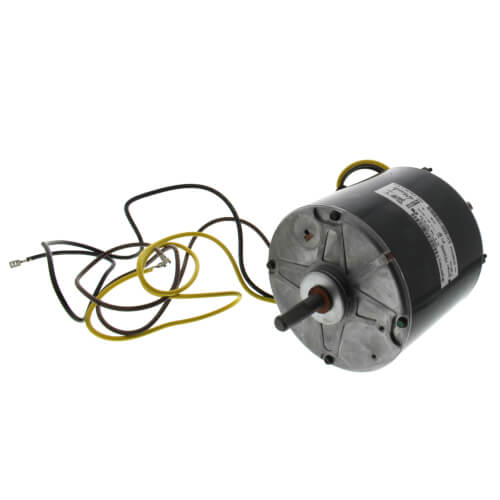

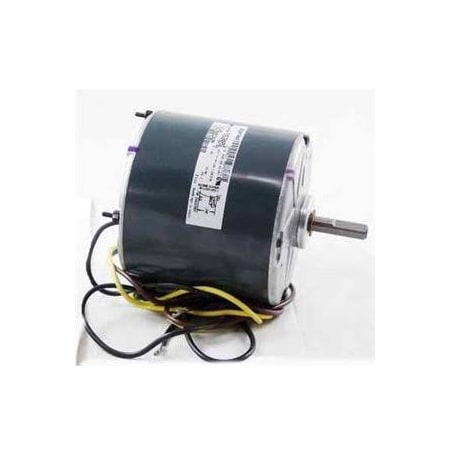

Carrier HC39GE242 condenser fan motor 1/4 hp 825 rpm 208/230vac (GE Model 5KCP39LFY534AS)

Product Description

The CARRIER HC39GE242 is a condenser fan motor designed for HVAC systems. This 1/4 HP, 825 RPM motor operates on 208/230VAC, 1-phase power at 60Hz, drawing 1.2A. Constructed from metal, it features a Frame Size 48, CW rotation, and a 1/2" x 1.75" shaft. This motor is suitable for replacing original equipment in air conditioning units, ensuring efficient air movement and system performance.

• 825 RPM operating speed and 1/4 HP motor power
• Operates on 208/230VAC, 1-phase, 60Hz power with 1.2A amperage
• Features a durable metal construction with Frame Size 48, CW rotation, and a 1/2" x 1.75" shaft

Product Highlights

This Carrier condenser fan motor ensures efficient air circulation in HVAC systems with its robust design and precise specifications.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC39GE242
• Country of Origin: United States

Technical Specifications

• Speed: 825 RPM
• Input Voltage: 208/230V
• Material: Metal
• Horsepower: 1/4 HP
• Manufacturer: Carrier Replacement Components Division
• Product Type: Electric Motor
• Country of Origin: United States
• Frequency: 60 Hz
• Phase: 1
• Frame Size: 48
• Rotation: CW
• Shaft Dimensions: 1/2" x 1.75"
• Amperage: 1.2A
• Alternate Model Number: 5KCP39LFY534AS
