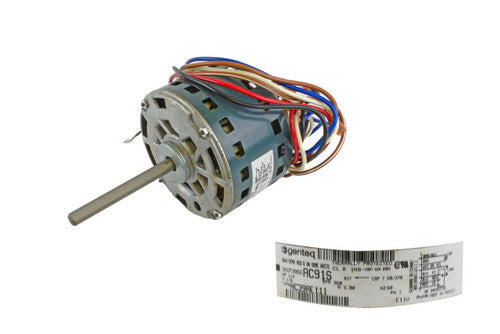

CARRIER HC39AE111 Blower Motor 1/4 HP 3 Speed Replacement MPN

Product Description

The Carrier HC39AE111 is a replacement blower motor. This unit features a quarter horsepower and provides three speeds for versatile airflow control in HVAC systems. With a voltage of one hundred fifteen volts and a frequency of sixty hertz, this motor is designed for single-phase applications.

• 1/4 horsepower motor with three adjustable speeds
• Operates at 115 volts, 60 hertz, single-phase
• Includes CCW lead end rotation and thermal protection

Product Highlights

This blower motor is thermally protected and requires a capacitor for operation. The suggested capacitor is seven point five microfarads at three hundred seventy volts, although some units may need ten microfarads at the same voltage.

Product Information

Standard Information

• Manufacturer: Genteq
• Manufacturer Part #: 5KCP39DGAC91S

Technical Specifications

• Horsepower: 1/4
• Input Voltage: 115
• Frequency: 60
• Number of Phases: 1
• Current: 5.0
• RPM: 960
• Number of Speeds: 3
• Rotation: CCW Lead End
• Shaft Diameter: 1/2 inches
• Shaft Length: 4 1/4 inches
• Length: 3 3/4 inches
• Outer Diameter: 5 1/2 inches
• Thermally Protected: True
• Insulation Class: B
• Motor Cooling: Continuous Air Over
• Capacitor Required: 7.5MFD @370V (Some units may require 10MFD @370V)
• Product Model: HC39AE111
