Product Description

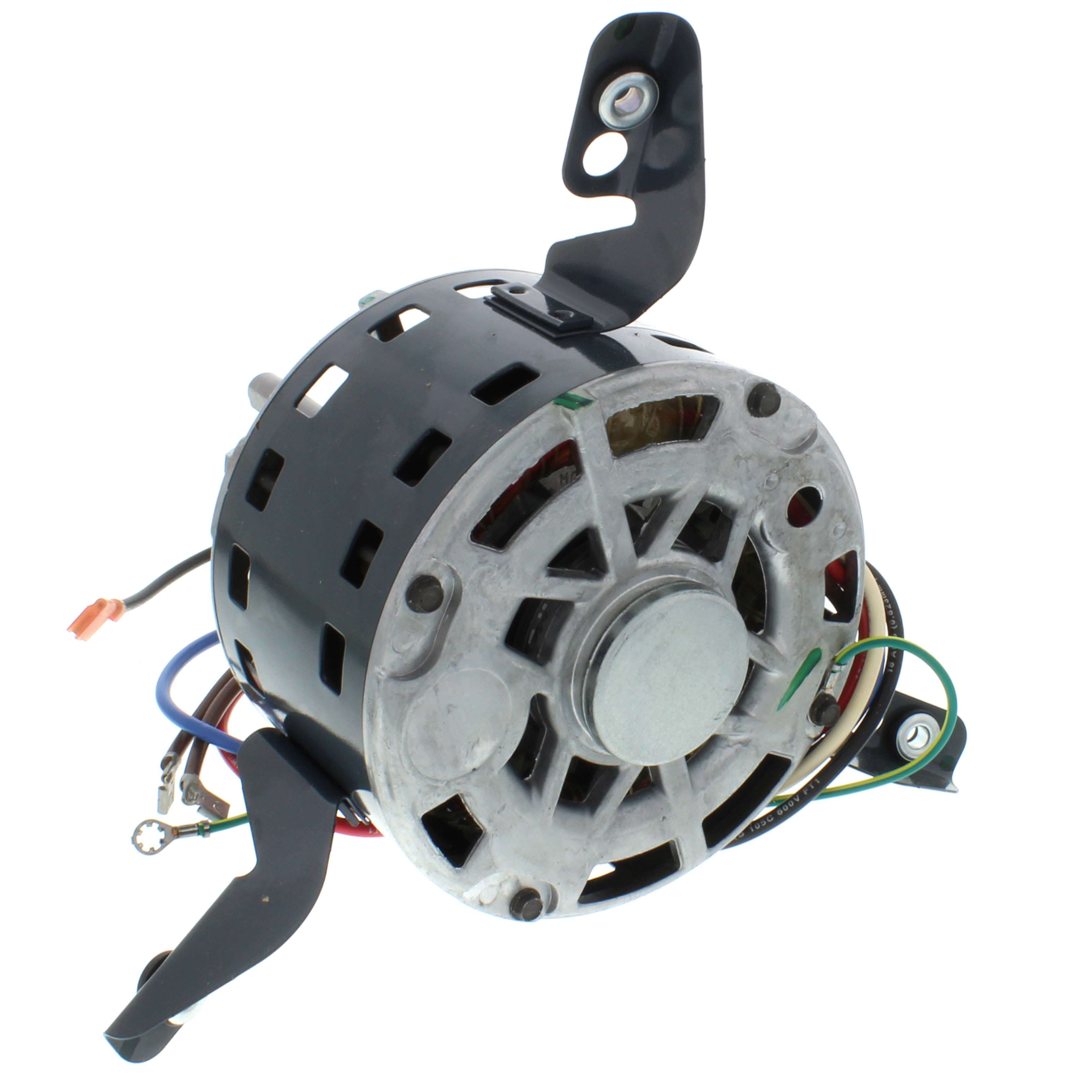

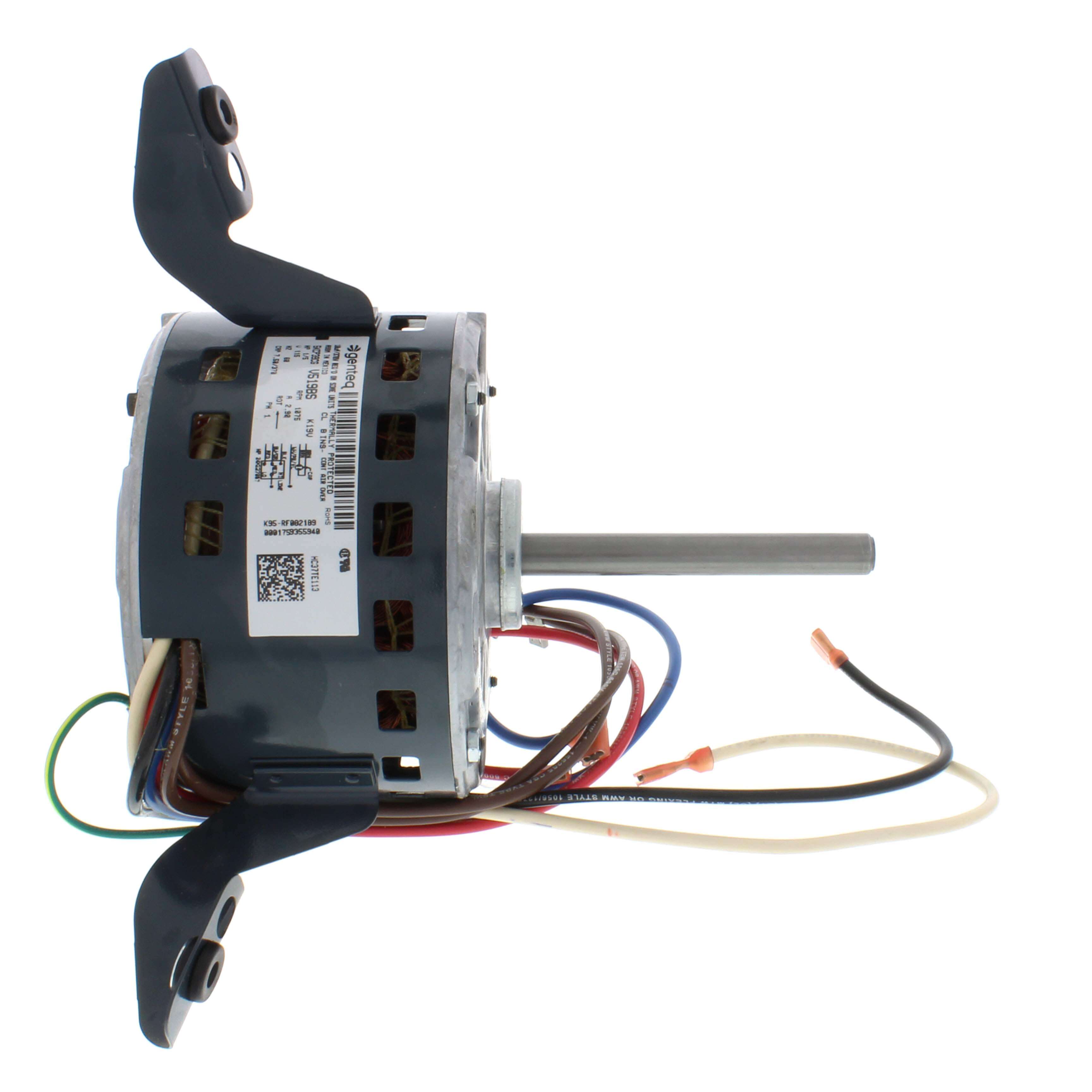

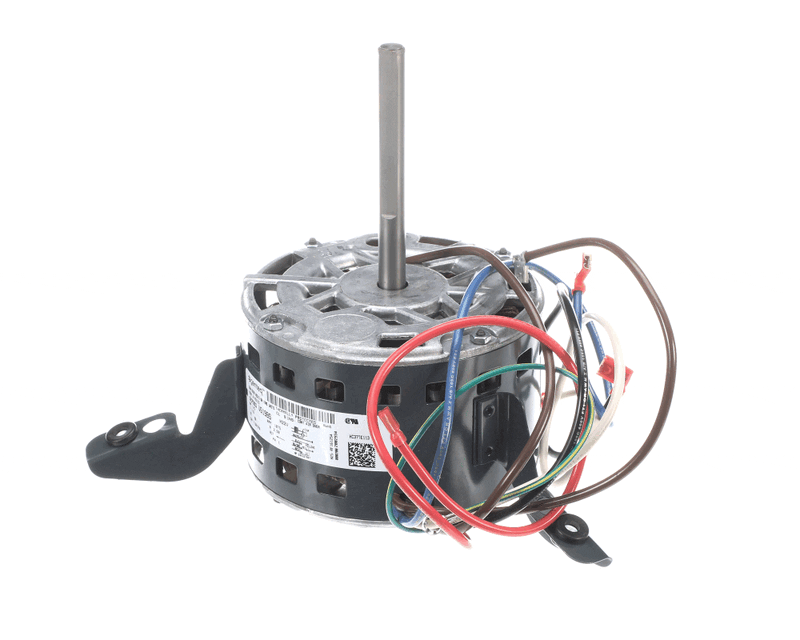

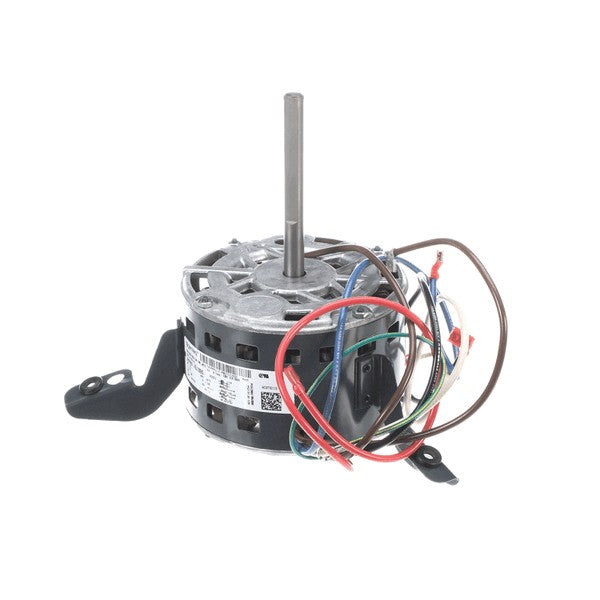

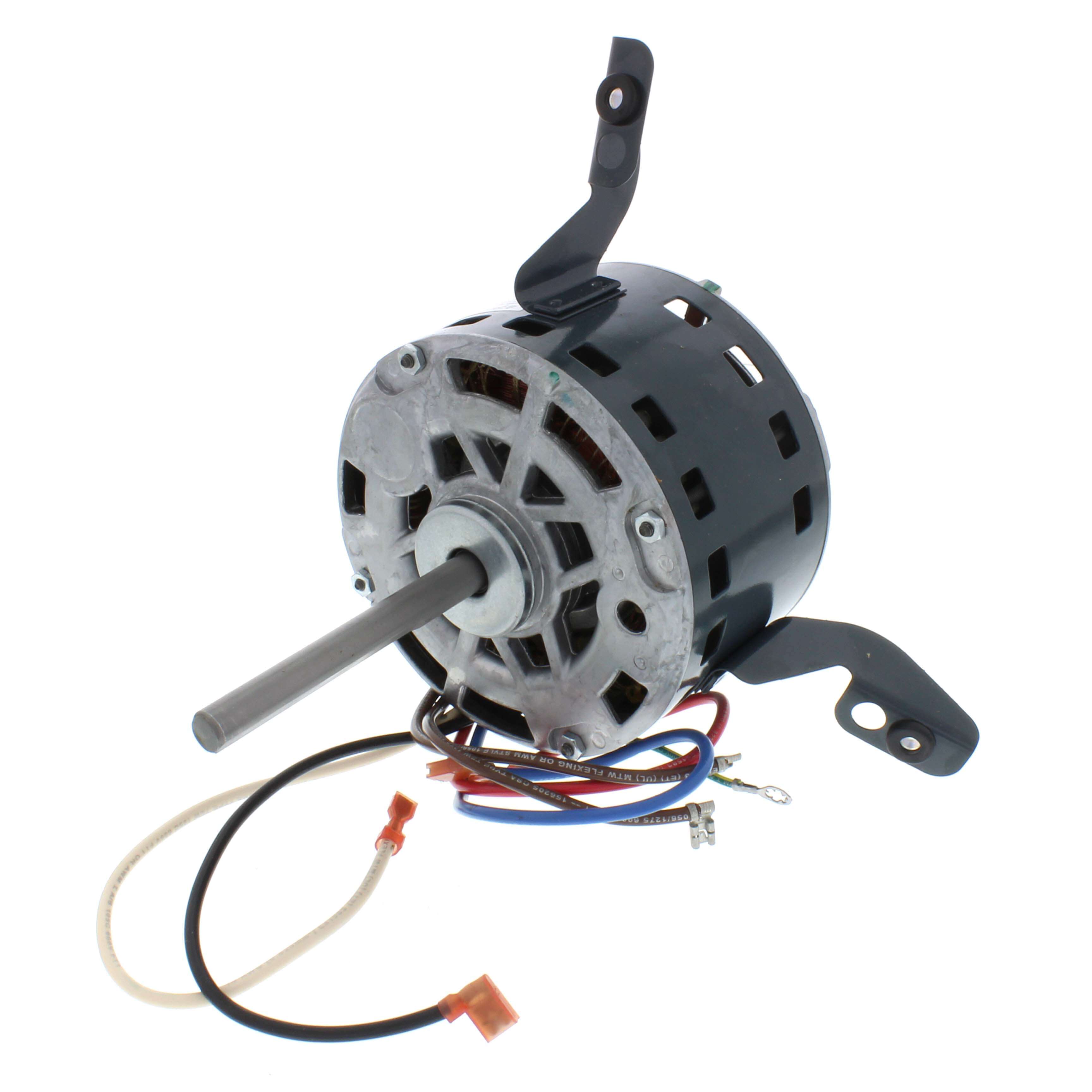

The CARRIER HC37TE113 is a 115V 1/5HP 1075 RPM CCCLE motor. This direct drive blower motor provides reliable operation for consistent movement and regulation within HVAC systems. Designed for applications such as air conditioners, heat pumps, and refrigeration systems, it operates at 60 Hertz with a 2.8 Full Load Amps current and single phase. This OEM part ensures optimal system performance and is built for durability.
- Features 115V operating voltage and 1/5 horsepower.
- Operates at 1075 RPM with a 60 Hertz frequency.
- Designed for HVAC systems, including air conditioners, heat pumps, and refrigeration.
Product Highlights
This Carrier OEM motor ensures optimal system performance and reliable operation for HVAC applications.
Product Information
Standard Information
-
Brand: CARRIER
-
Manufacturer Part Number: HC37TE113
-
Country of Origin: CHE
Technical Specifications
-
AllPoints OEM Part Number: CRCHC37TE113
-
Product ID: 8044190
-
Product ID (Dashed): 804-4190
-
OEM Part Number: HC37TE113
-
Brand: Carrier
-
Hazardous Material: false
-
Accessories: LA22RA101, P291-1004, TOCF7.5
-
RPM: 1075
-
Compatible With: 58STA045---14108, 58STA045---15108, 58STA045---16108, 58STA04510108, 58STA04511108, 58STA04512108, 58STA04513108, 58STA045E10108, 58STA070---14108, 58STA070---15108, 58STA070---16108, 58STA070-10108, 58STA07010108, 58STA07011108, 58STA07012108, 58STA07013108, 58STA070E10108, PG8JAA024045AAJA, PG8JAA024045ABJA, PG8JAA024045AEJA, PG8JAA024045AFJA, PG8JAA024045AGJA, PG8JAA024070AAJA, PG8JAA024070ABJA, PG8JAA024070AEJA, PG8JAA024070AFJA, PG8JAA024070AGJA, PG8MAA024045AAJA, PG8MAA024045ABJA, PG8MAA024045ACJA, PG8MAA024045ADJA, PG8MAA024045AEJA, PG8MAA024045AFJA, PG8MAA024045AGJA, PG8MAA024070AAJA, PG8MAA024070ABJA, PG8MAA024070ACJA, PG8MAA024070ADJA, PG8MAA024070AEJA, PG8MAA024070AFJA, PG8MAA024070AGJA
-
Frequency: 60
-
Voltage: 115V
-
Horsepower: 1/5
-
Manufacturer: Carrier HVAC
-
Parts Town Part Number: CRRHC37TE113
-
Replaced By Part Number: CRRHC37TQ113
-
Common Equipment Type: Furnace Parts
-
Phase: 1PH
-
CSA Listed: Yes
-
Full Load Amps: 2.8
-
NEMA Frame: 48
-
Proposition 65: No
-
Rotation: Counter-clockwise
