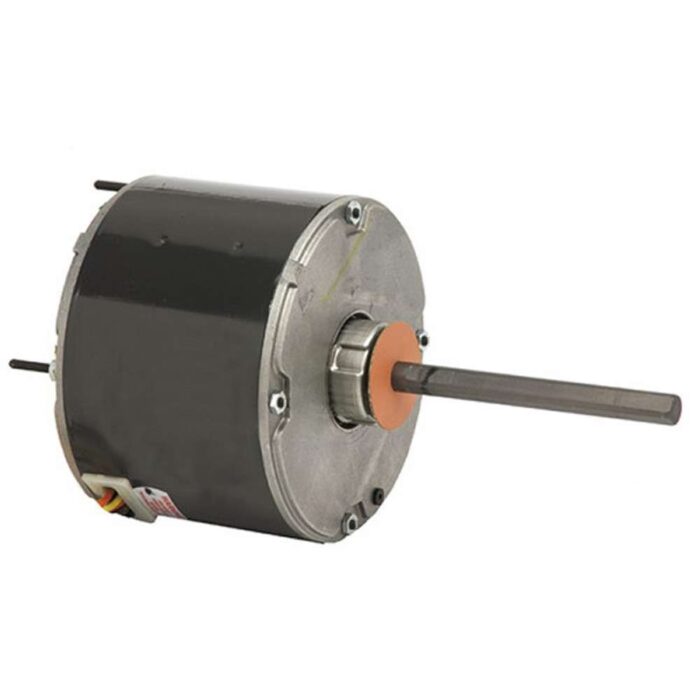

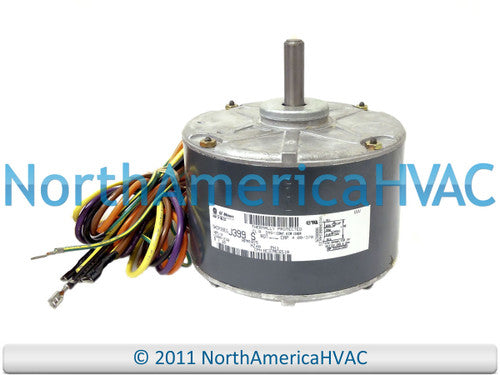

CARRIER HC37ME651 Fan Blower Motor 1/6 HP

Product Description

The CARRIER HC37ME651 is a fan blower motor specifically designed for HVAC systems. This motor efficiently converts electrical energy into mechanical energy, powering the air conditioning fan blade and furnace blower. It features a single-phase design with reversible rotation, which can easily be changed by switching the orange and brown wires. This motor is compatible with various models from Carrier, Bryant, and Payne.

• Motor diameter is five and five-eighths inches.
• Shaft extends one and a half inches from the motor.
• Requires a four microfarad 370 volt capacitor.

Product Highlights

The CARRIER HC37ME651 is ideal for HVAC applications, providing reliable performance and efficient airflow management.

Product Information

Standard Information

• Brand: Carrier
• MPN: HC37ME651

Technical Specifications

• Horsepower: 1/6 HP
• Voltage: 208/230
• Phase: Single Phase
• Rotation: Reversible
• Frame: 48Y
• Enclosure: TEAO
• Shaft Diameter: 0.5 inches
• Shaft Length: 5 inches
• Shaft Type: Single
• Motor Diameter: 5.6 inches
• Weight: 10.00 lbs
