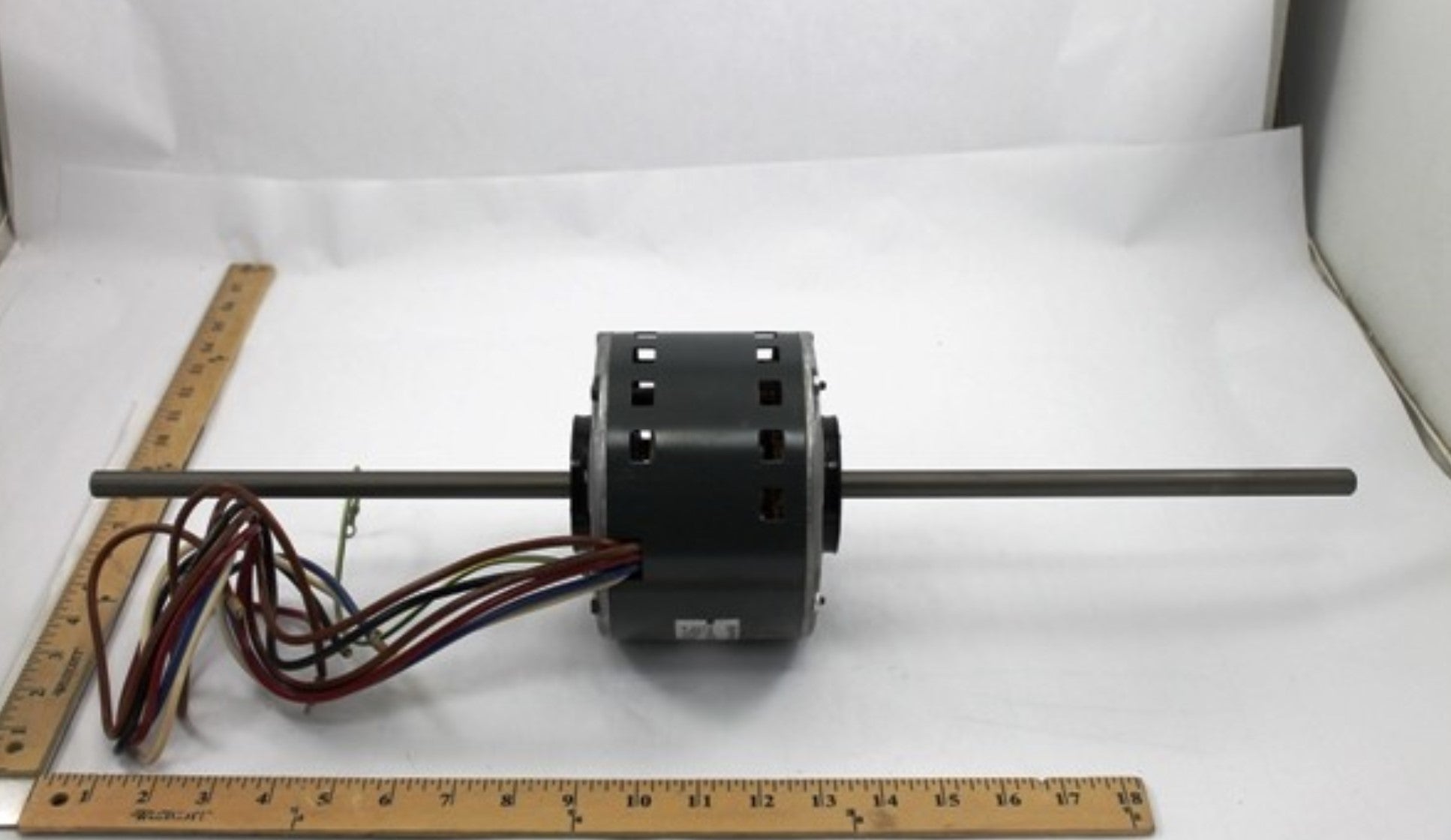

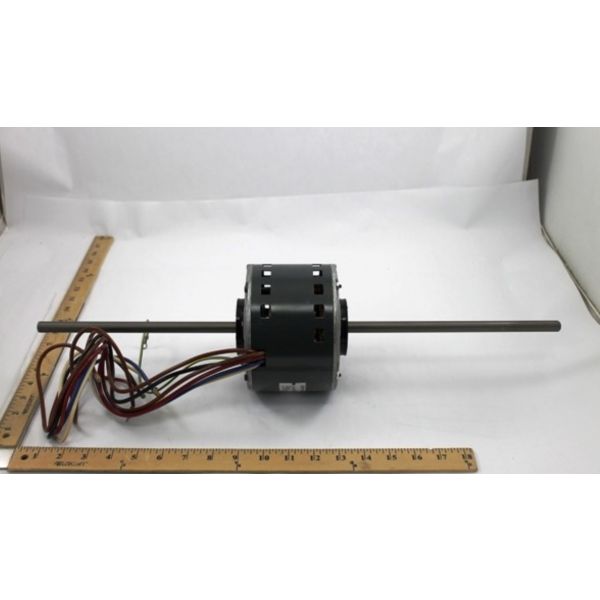

CARRIER HC37EE208 1/3 HP PSC Motor

Product Description

The CARRIER HC37EE208 is a 1/3 horsepower PSC motor suitable for Carrier HVAC systems. It features a permanent split capacitor, which helps in providing both starting and running torque. Operating efficiently on 208 to 230 volts at 60 Hz, this motor converts electrical power into rotational motion at a speed of 960 RPM. It rotates counterclockwise and is essential for maintaining airflow within compatible Carrier systems.

• Horsepower: 1/3 HP
• Motor Type: PSC (Permanent Split Capacitor)
• Rotation: Counter Clockwise (CCW)

Product Highlights

This motor is designed for continuous duty applications and ensures optimal performance in HVAC systems.

Product Information

Standard Information

• Country of Origin: US

Technical Specifications

• Frequency: 60 Hz
• Duty: Continuous (S1)
• Full Load Amps: 0.5 Amps
• RPM: 960
• Input Voltage: 208V-230V
• Length: 23 inches
• Width: 5.5 inches
• Height: 5.5 inches
• Weight: 9.75 lbs
• Motor HP: 1/3 HP
