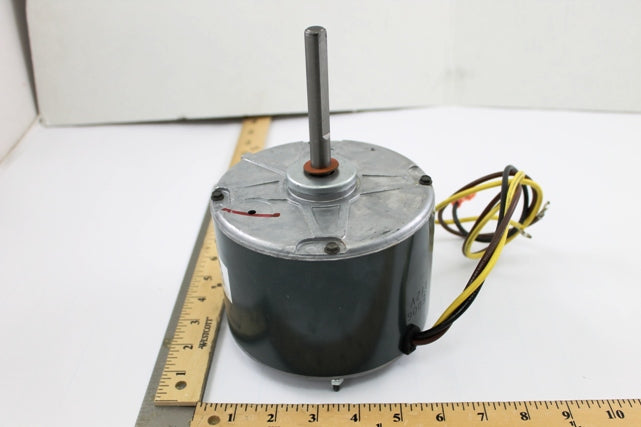

CARRIER HC35VB230A Condenser Fan Motor

Product Description

The CARRIER HC35VB230A is a condenser fan motor compatible with various CARRIER unit models such as 38EC, 38ED, 38QD, 35BF, 38QF, 38QL, 38SQ, 26SD, and 38XD. This motor operates at two hundred eight to two hundred thirty volts and fifty to sixty hertz in a single-phase configuration. It features a horsepower rating of one eighth HP, runs at eight hundred thirty RPM, and draws one amp. Additionally, it is identified as GE (Genteq) model five KCP thirty-nine EFK four two nine AS.

• Condenser fan motor with one eighth horsepower
• Operates at two hundred eight to two hundred thirty volts, sixty hertz, single phase
• Rotates at eight hundred thirty RPM with a current draw of one amp

Product Highlights

This motor is essential for maintaining efficient airflow in CARRIER air conditioning units.

Product Information

Standard Information

• Country of Origin:
• UPC:

Technical Specifications

• Horsepower: one eighth
• Input Voltage: two hundred eight to two hundred thirty
• RPM: eight hundred thirty
• Current: one amp
• Frequency: sixty
• Phase: one
• Replaces P/N: HC35VL230, HC35VL230A, HC35VB230A, HC35VB230C
• Weight: fifteen pounds
• Dimensions: fifteen by seven by seven inches
