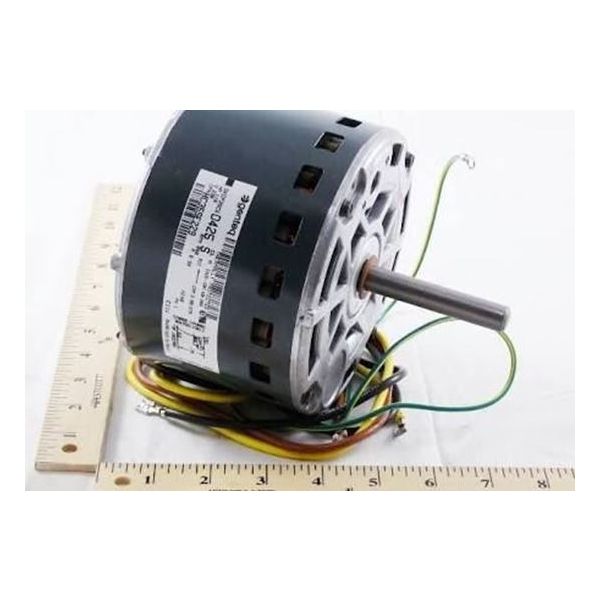

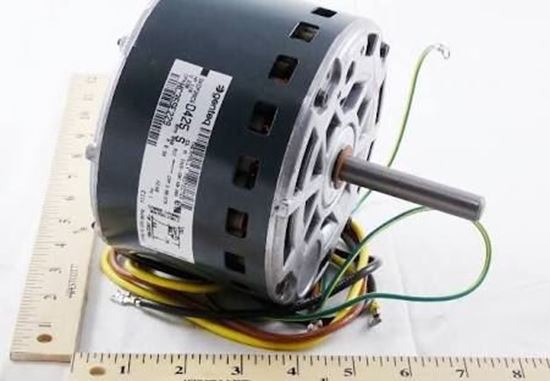

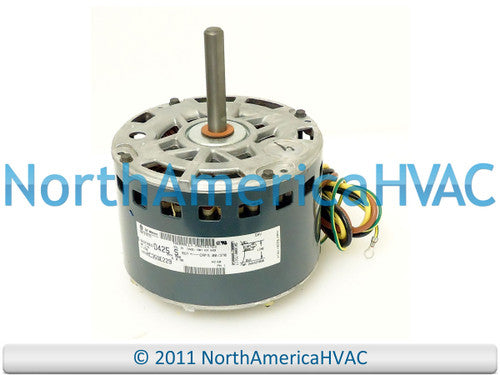

Carrier HC35SE229 Condenser Fan Motor 1/8 HP

Product Description

The Carrier HC35SE229 condenser fan motor is created for HVAC systems. It operates on two hundred thirty volts and runs at eight hundred RPM. This motor has a diameter of five and five-eighths inches and is designed with a half-inch diameter shaft that extends two and three-quarter inches from the motor. It utilizes a permanent split capacitor for consistent performance, making it ideal for various HVAC applications.

• Operates at two hundred thirty volts
• Rated speed of eight hundred RPM
• Includes a permanent split capacitor for performance

Product Highlights

This fan motor is built to provide essential airflow within HVAC systems, ensuring efficient operation and reliable performance.

Product Information

Standard Information

• Brand: Carrier
• MPN: HC35SE229

Technical Specifications

• Horsepower: 1/8 HP
• Input Voltage: 230V
• Speed: 800 RPM
• Frame Size: 48
• Shaft Diameter: 1/2 inch
• Shaft Extension: 2.75 inches
• Current: 0.9 Amp
• Phase: Single
• Motor Type: PSC
• Frequency: 60 Hz
• Diameter: 5 5/8 inches
• Length: 5.6 inches
• Width: 5.9 inches
• Height: 6.9 inches
