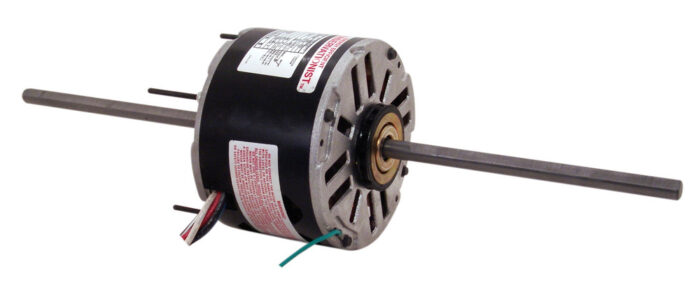

CARRIER HC35MZ600 Blower Motor 1/8 HP

Product Description

The CARRIER HC35MZ600 is a blower motor that serves as a replacement component in HVAC systems. This single-phase motor operates with input voltages of two hundred eight or two hundred thirty volts at sixty hertz. It features a horsepower rating of one-eighth and a speed of one thousand fifty RPM with three selectable speeds.

• Clockwise rotation motor
• Requires a three microfarad capacitor rated at three hundred seventy volts
• Compatible with various mounting orientations

Product Highlights

The motor is thermally protected and includes sleeve bearings for durability and efficiency. It is suitable for a range of applications within HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• MPN: HC35MZ600

Technical Specifications

• Manufacturer: Genteq
• Horsepower: 1/8
• Input Voltage: 208/230 volts
• Frequency: 60 hertz
• Number of Phases: 1
• Current: 0.90 amps
• RPM: 1050
• Number of Speeds: 3
• Rotation: Clockwise
• Frame: 39
• Shaft Diameter: 1/2 inches
• Short Side Shaft Length: 1 3/4 inches
• Long Side Shaft Length: 6 1/4 inches
• Outer Diameter: 5 1/2 inches
• Capacitor Needed: 3MFD @370V
• Bearings: Sleeve
• Mounting: Any orientation
• Thermally Protected: Yes
• Insulation Class: B
