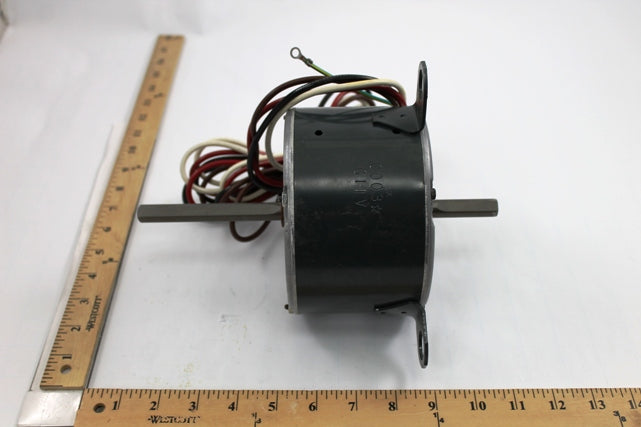

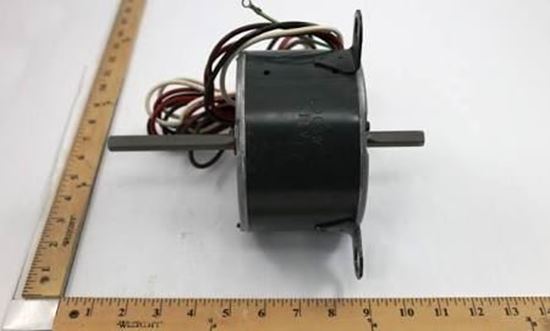

Carrier HC35CE233 motor 1/8hp 208-230v1ph 1050/900rpm replaces HC35CE233A

Product Description

The Carrier HC35CE233 motor is a PSC motor designed for continuous operation in HVAC systems, including furnaces and air handlers. This single-phase motor operates at 208-230V, providing 1/8 horsepower with dual speeds of 1050 or 900 RPM. It rotates counter-clockwise, ensuring constant airflow for heating and cooling functions. This motor is suitable for driving various HVAC components and replaces HC35CE233A.

• PSC motor designed for continuous operation in HVAC systems.
• Single-phase motor with 1/8 horsepower and dual speeds of 1050/900 RPM.
• Counter-clockwise rotation ensures consistent airflow for heating and cooling.

Product Highlights

Continuous duty PSC motor for HVAC applications, offering 1/8 HP and dual RPMs.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC35CE233

Technical Specifications

• Voltage: 208-230v1ph
• HP: 1/8HP
• RPM: 1050/900RPM
• Phase: 1ph
• Frequency: 60 Hz
• Duty: Continuous (S1)
• Full Load Amps: 0.78 Amps
• Motor Type: PSC (Permanent Split Capacitor)
• Rotation: Counter Clockwise (CCW)
• Shaft Type: Double shaft
• Brand Compatibility: Carrier, Bryant, Payne
• Replaces Part Numbers: HC35CE233, HC35CE233A
