Product Description

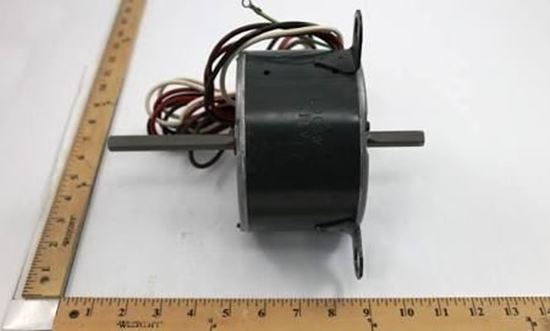

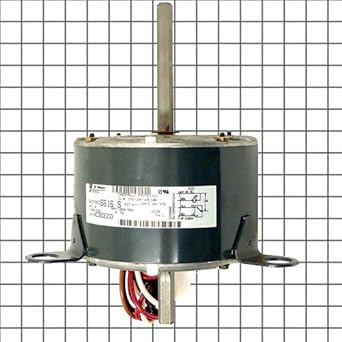

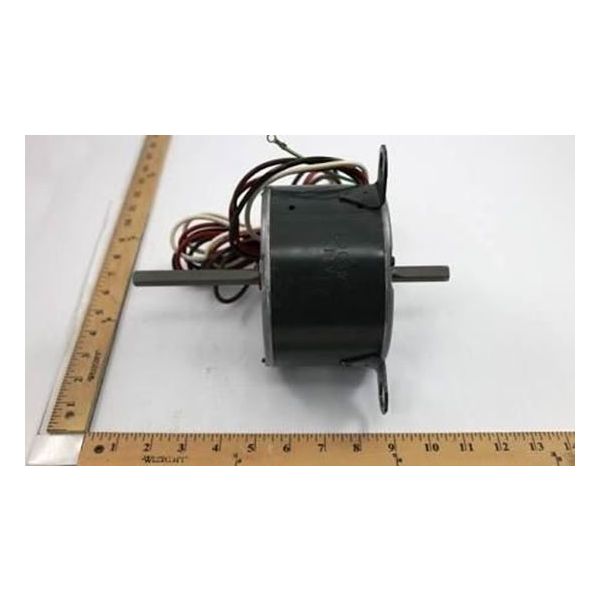

The Carrier HC35CE233 is a furnace blower motor specifically crafted for Carrier HVAC systems such as furnaces and air handlers. This Permanent Split Capacitor (PSC) motor operates on single-phase power with a rating of 208-230 volts and has a power output of one-eighth horsepower. It runs at two different speeds, 1050 and 900 RPM, and features a counter-clockwise rotation. The design supports continuous operation, ensuring a steady airflow for both heating and cooling applications.
- Compatible with Carrier HVAC systems.
- Two-speed operation: 1050 RPM and 900 RPM.
- Engineered for continuous performance.
Product Highlights
This motor is essential for maintaining ideal temperature control in residential and commercial settings, delivering reliable airflow in conjunction with your HVAC system.
Product Information
Standard Information
-
Brand: CARRIER
-
Manufacturer Part Number: HC35CE233
Technical Specifications
-
Horsepower: 1/8 HP
-
Voltage: 208-230V
-
Speed: 1050/900 RPM
-
Phase: 1 Phase
-
Frequency: 60 Hz
-
Duty: Continuous (S1)
-
Full Load Amps: 0.78 Amps
-
Motor Type: PSC (Permanent Split Capacitor)
-
Rotation: Counter Clockwise (CCW)
-
Length: 7.5 inches
-
Width: 7.5 inches
-
Height: 10 inches
