Carrier HC34GE400 Condenser Fan Motor 1/10 HP 400V

Product Description

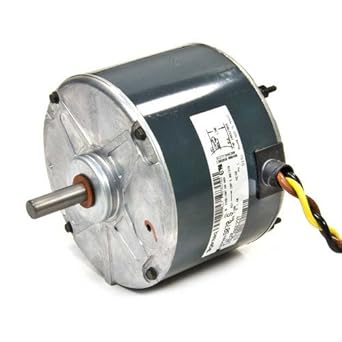

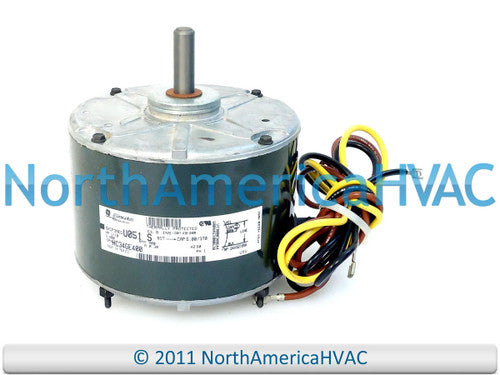

The Carrier HC34GE400 is a condenser fan motor suitable for HVAC systems. This motor is rated at 1/10 horsepower and operates at 400 volts. It effectively converts electrical energy to mechanical energy, facilitating the rotation of the air conditioning fan blade. The diameter of the motor is five and five-eighths inches, with a standard frame size of 48Y. The shaft extends one and a half inches from the motor body, ensuring proper fit and function. The motor operates in a counterclockwise direction when viewed from the shaft end.

• Condenser fan motor suitable for HVAC systems
• Rated at 1/10 horsepower and 400 volts
• Counterclockwise rotation for efficient airflow

Product Highlights

This motor is ideal for replacing worn or malfunctioning units to restore proper air conditioning performance.

Product Information

Standard Information

• Brand: Carrier
• Horsepower: 0.1 hp
• Voltage: 400 volts
• Material: Copper
• Item Weight: 176 ounces

Technical Specifications

• Diameter: 5.625 inches
• Frame Size: 48Y
• Shaft Length: 1.5 inches
• Rotation Direction: Counterclockwise
