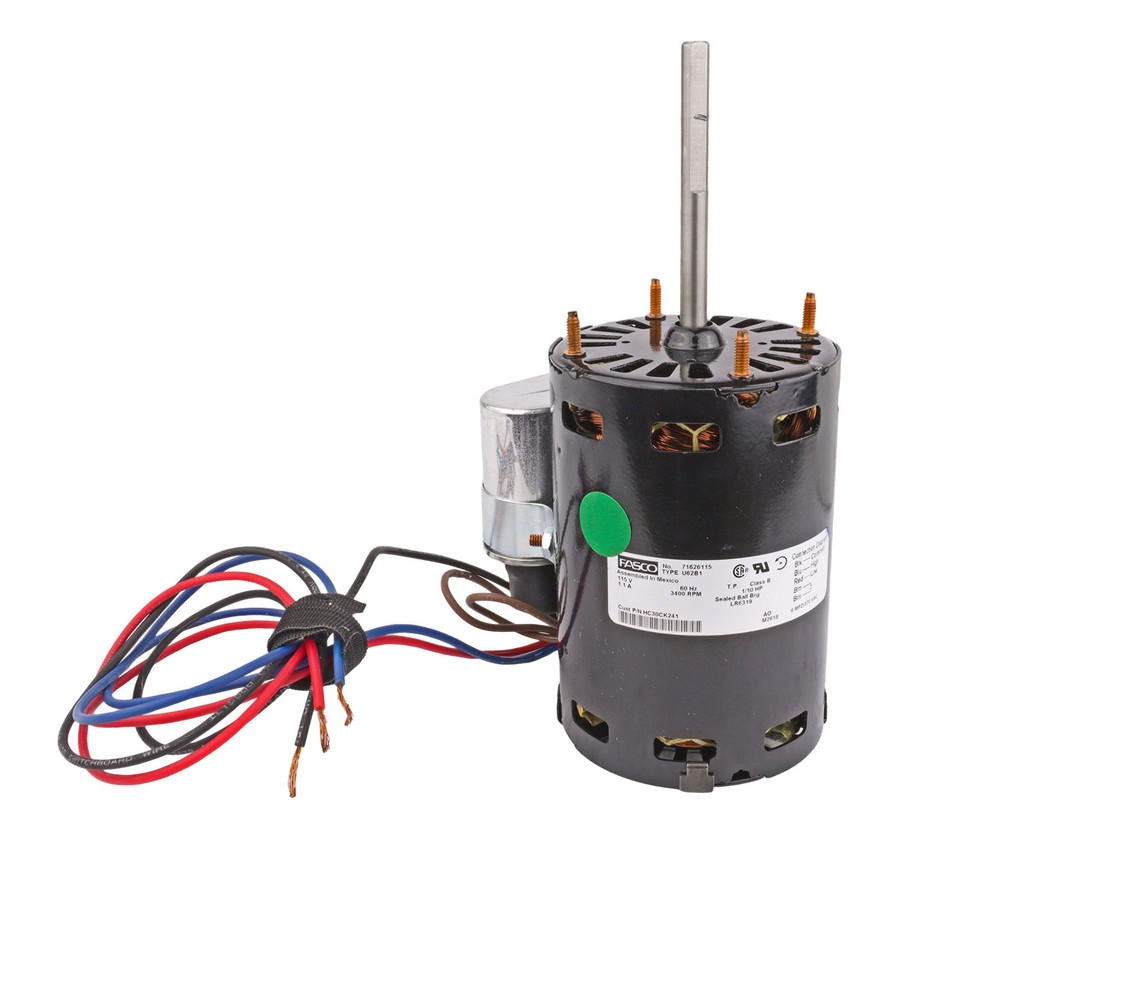

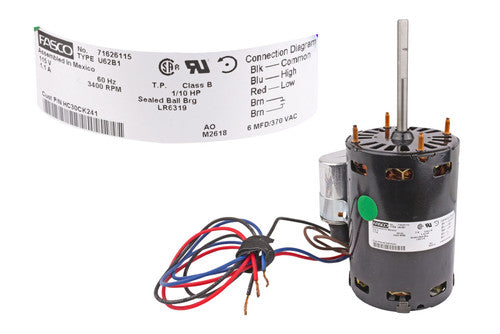

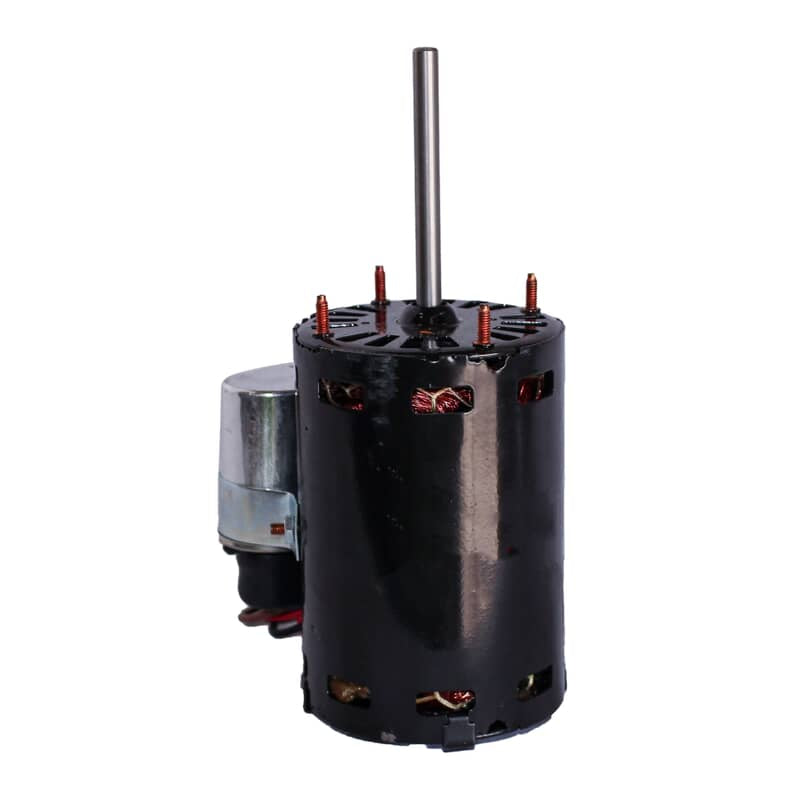

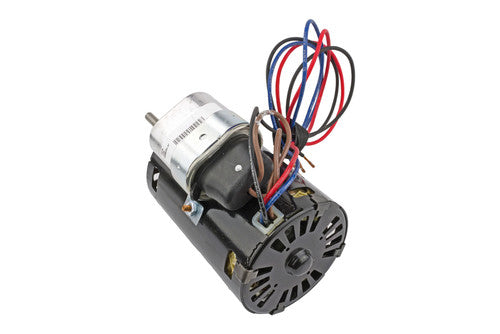

Carrier HC30CK241 Motor 2 Spd Induce Draft 115V 2 Speed CCW

Product Description

The Carrier HC30CK241 Motor 2 Spd Induce Draft is designed for reliable draft and airflow management in HVAC systems. It assists in the movement of combustion air and the removal of flue gases, ensuring controlled airflow by utilizing the furnace heat exchanger. This motor pushes fresh air into the combustion chamber and vents exhaust, supporting safe combustion and steady system performance. Its two-speed design allows for suitable airflow selection based on load conditions, maintaining consistent start-up performance.

• Drives reliable draft and airflow management for HVAC systems.
• Supports safe combustion and steady performance by managing flue gases.
• Features a two-speed design for adaptable airflow based on load conditions.

Product Highlights

This Carrier HC30CK241 motor ensures controlled airflow and safe combustion in HVAC systems with its reliable two-speed operation.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC30CK241
• Country of Origin: United States

Technical Specifications

• Manufacturer: Carrier HVAC
• Parts Town Number: CRRHC30CK241
• Previous Part Number: CIAHC30CK241
• Product Type: Inducer Draft Motor
• Input Voltage: 115V
• Number of Speeds: 2
• RPM: 2000/3400
• Rotation: CCW
• Mounting Type: Through Bolt/Face Stud; Horizontal/Vertical With Shaft Dowel
• Frequency: 60 Hz
• Brand: Carrier
• Condition: New
• Country of Origin: United States
• Amperage: 1.1 A
• Horsepower: 1/10
• Shaft Diameter: 5/16"
• Shaft Length: 3-1/4"
• MFD: 6
• Bearing Type: Sealed Ball Bearing
• Insulation Class: B
