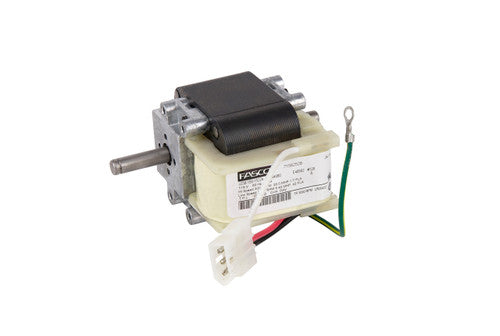

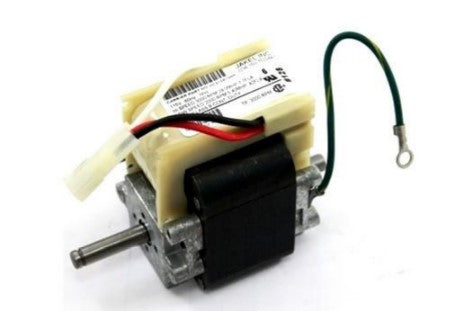

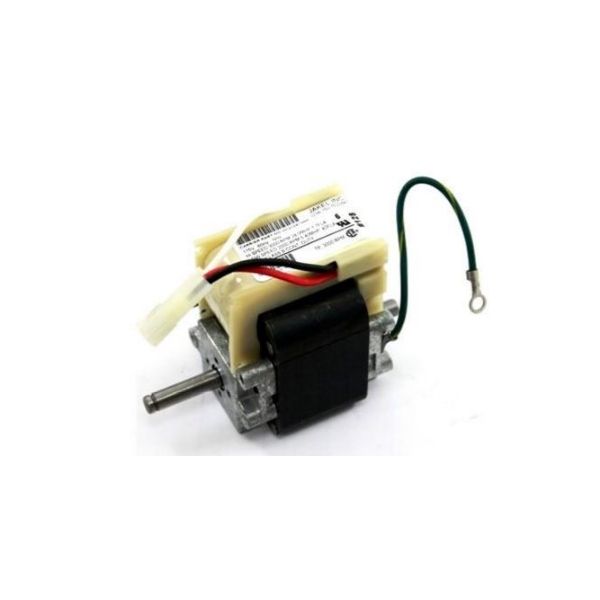

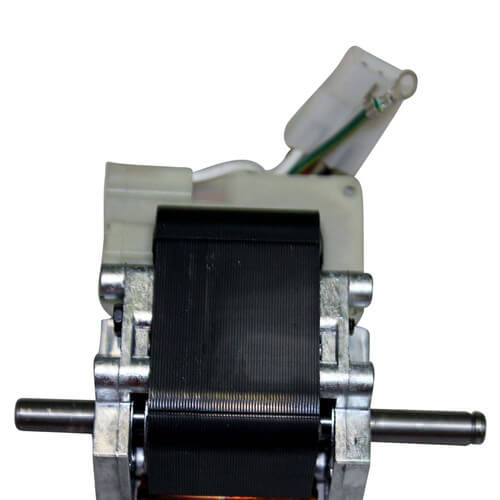

Carrier HC21ZE128 motor inducer 115V CW HC21ZS128

Product Description

The CARRIER HC21ZE128 Motor Inducer is a single-phase unit manufactured by Fasco, designed for specific HVAC applications. Operating at 115V and 60 Hz, this inducer motor provides clockwise rotation, ensuring proper airflow and exhaust gas ventilation in compatible systems. It features a continuous duty motor with an insulation class of B, engineered to meet the operational requirements of various Carrier, Bryant, and Payne models, facilitating efficient system performance.

• Operates on 115V, 60 Hz, single phase power.
• Features a clockwise rotation and continuous duty motor with Insulation Class B.
• Provides high-speed operation at 3000 RPM and low-speed at 2000 RPM.

Product Highlights

This CARRIER HC21ZE128 motor inducer ensures efficient exhaust gas ventilation and airflow in compatible HVAC systems, featuring 115V operation and continuous duty.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HC21ZE128
• Country of Origin: Mexico

Technical Specifications

• Brand: CARRIER
• MPN: HC21ZE128
• Country of Origin: Mexico
• Voltage: 115V
• Rotation: CW
• Product Type: Inducer Motor
• Frequency: 60 Hz
• Phase: 1 ph
• Manufacturer: Fasco
• Model Number: 71582528
• Insulation Class: B
• Motor Operating Type: Continuous Duty
• High Speed: 3000 RPM; 28.0 Micro horsepower; 1.7 Full Load Amperage
• Low Speed: 2000 RPM; 5.40 Micro Horsepower ; 0.42 Full Load Amperage
• Other Part Numbers: Inducer Motor, Replacement Components Division, Factory Authorized Parts, Carrier Corporation, J-238-150-15224, E64080, E48562, #128 6, TP 3000 RPM, LR20432
