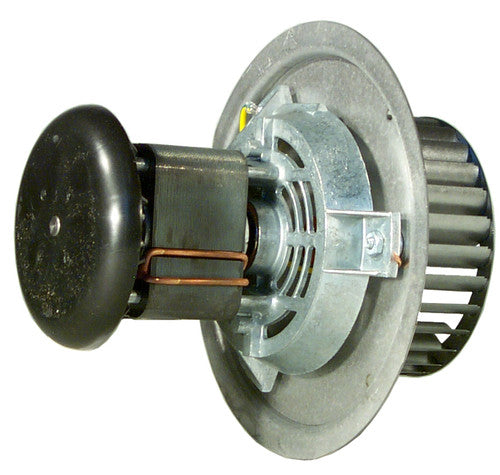

CARRIER HC21ZE117 HVAC Draft Inducer Motor

Product Description

The CARRIER HC21ZE117 is an effective draft inducer motor suitable for HVAC applications. It features a C-frame design for easy installation. The motor operates at 115 VAC and runs at speeds between three thousand to three thousand three hundred RPM. This unit is equipped with overload protection to ensure safe operation during continuous running.

• C-frame motor design for HVAC systems
• Single-speed operation with ball bearings
• Counter-clockwise rotation with included connectors and fan blade

Product Highlights

Designed for reliability, the CARRIER HC21ZE117 supports continuous duty applications efficiently.

Product Information

Standard Information

• Brand: Factory Authorized Parts
• MPN: HC21ZE117

Technical Specifications

• Voltage: 115 VAC
• Full Load Amps: 1.8 A
• Horsepower: 1/25 hp
• Speed: Single Speed
• RPM: 3,000-3,300
• Rotation: Counter Clockwise (CCW)
• Motor Design: C-Frame
• Bearing Type: Ball
• Phase: Single
• Cycle/Hertz: 60 Hz
• Insulation Class: B
• Protection: Overload Protection
• Duty: Continuous Running Duty
• Length: 3.4 inches
• Width: 5.4 inches
• Height: 2.4 inches
• Weight: 2.3 pounds
• Mounting Plate Diameter: 6.5 inches
• Approvals: CSA Listed
