Carrier HB32GR234 motor 1/12hp 208/230v 1100rpm HC31GE234

Product Description

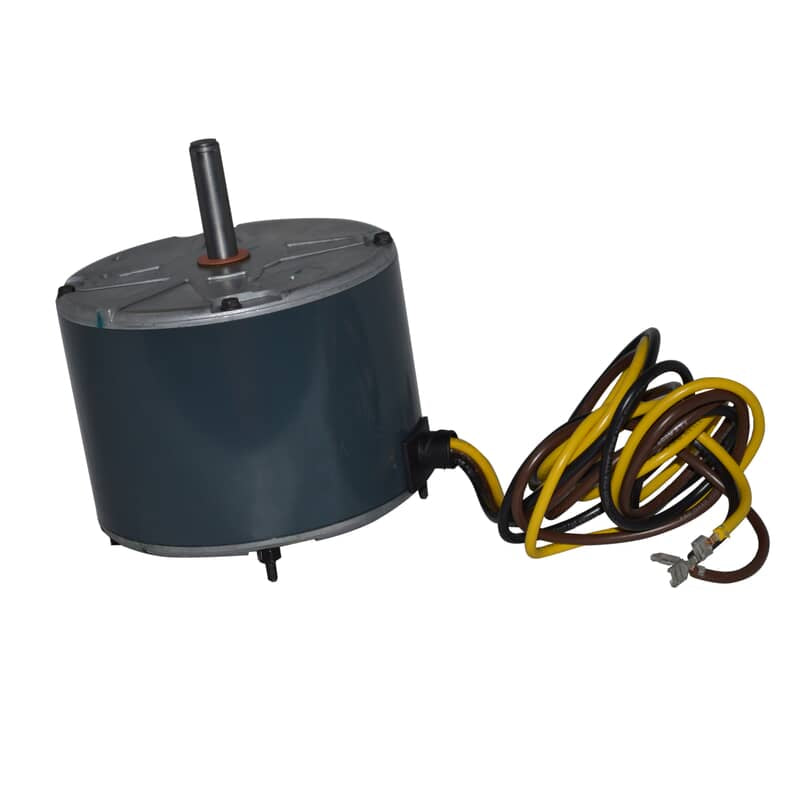

The CARRIER HB32GR234 is a 1/12 horsepower condenser fan motor designed for HVAC systems. Operating at 208/230 volts, single phase, and 60 Hz, this motor delivers 1100 RPM. It is a genuine OEM replacement part, ensuring compatibility and performance for Carrier Corporation specifications. This motor is suitable for various fan applications requiring reliable air movement. It replaces part number HC31GE234.

• 1/12 HP motor with 1100 RPM speed.
• Operates on 208/230V, single phase, 60 Hz power.
• Genuine OEM replacement condenser fan motor.

Product Highlights

Reliable 1/12 HP condenser fan motor for HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HB32GR234
• Country of Origin: Mexico

Technical Specifications

• Country of Origin: Mexico
• Horsepower: 1/12
• Voltage: 208/230V
• Rotation: Clockwise (CW)
• RPM: 1100
• Type: Condenser Fan Motor
• OEM Part Number: 5KCP39EGUA10AS
• Phase: Single
• Amps: 0.5
• Bearing Type: Sealed
• Frequency: 60 Hz
• Duty: Continuous Running Duty
• Insulation Class: B
• Motor Type: PSC (Permanent Split Capacitor)
• Mounting Type: Vertical Shaft Down
• NEMA Frame: 39
• Number of Speeds: 1
• Prop 65: false
• Protection: No
• Shaft Diameter: 1/2"
• Shaft Length: 2"
• Substantial Commodity: Steel; Copper
• Basis Of Rotation View: Lead End
• Approvals: CSA Listed
