Carrier H847 HVAC/R motors, fan and blower motor 5.0 hp Carrier HD60AZ660

Product Description

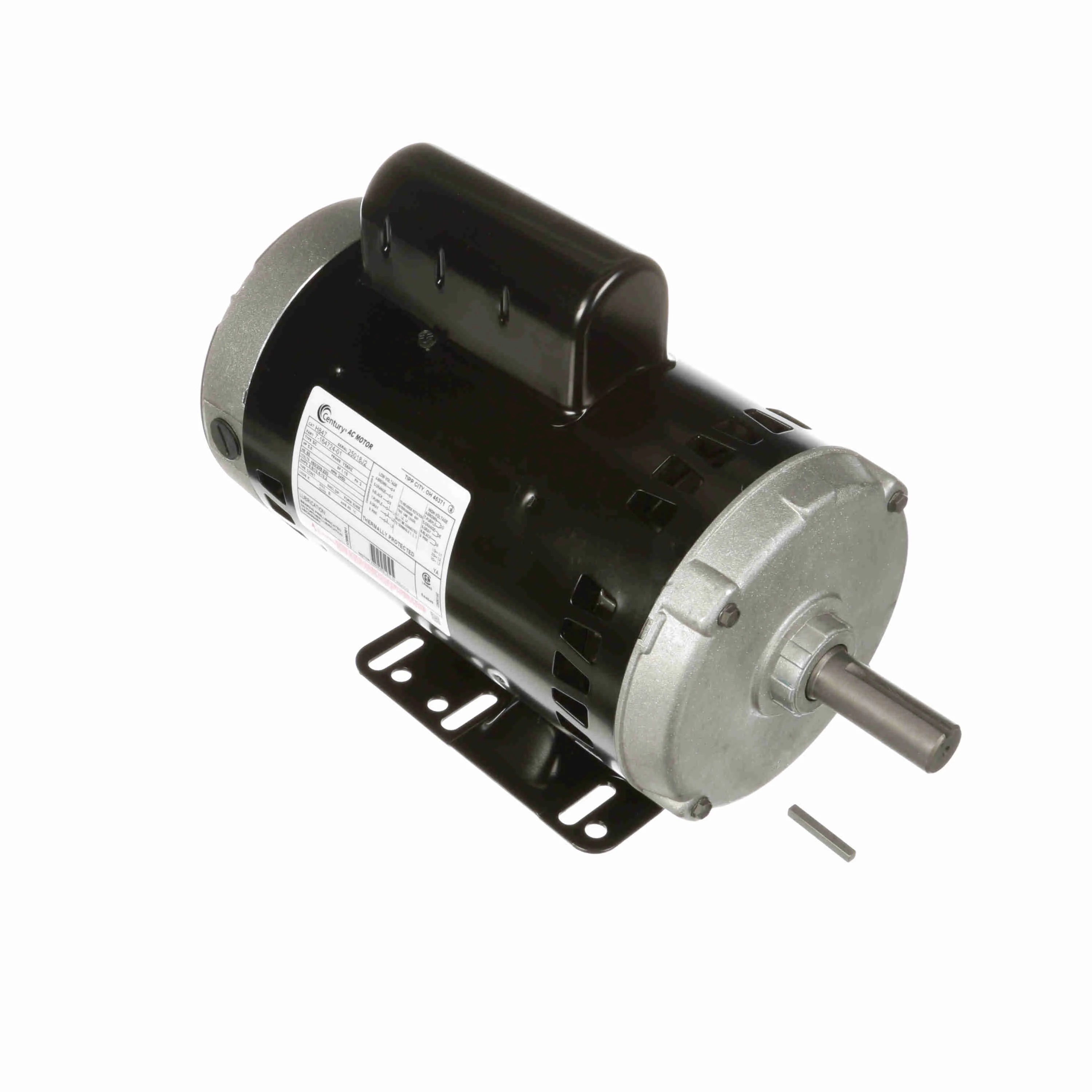

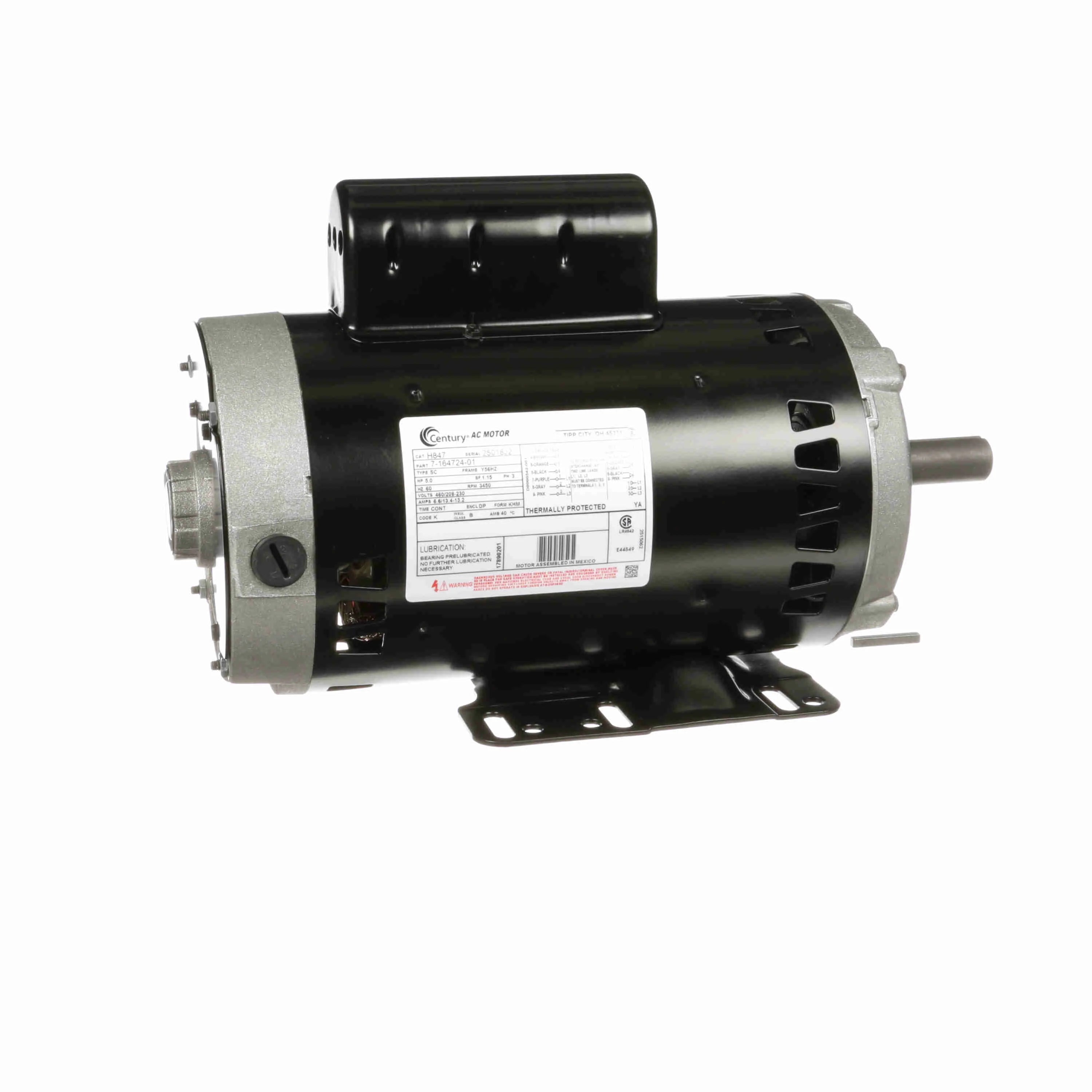

The CARRIER H847 is a 3-phase HVAC/R motor, fan, and blower motor designed for continuous duty applications. This 5.0 Hp (3.7 kW) motor operates at 3450 RPM with a voltage range of 460/208-230 V and a 60 Hz frequency. Featuring a drip-proof enclosure and a Y56HZ rolled steel frame, it ensures reliable performance in various environments.

• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Premium efficiency promotes improved reliability.
• Heavy-duty, rolled steel construction ensures motor durability.

Product Highlights

Durable, efficient, and certified motor for HVAC/R and fan applications, featuring a robust rolled steel frame and thermally protected design.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: H847
• Country of Origin: Mexico

Technical Specifications

• Phase: 3 Phase
• Output Horsepower: 5.0 Hp
• Output Kilowatts: 3.7 kW
• Voltage: 460/208-230 V
• Speed: 3450 RPM
• Service Factor: 1.15
• Frame Size: Y56HZ
• Enclosure Type: Drip Proof
• Thermal Protection: Thermally Protected
• Efficiency: 86.5 %
• Operating Temperature: 40 °C
• Frequency: 60 Hz
• Current: 6.6/13.4-13.2 A
• Duty Cycle: Continuous
• Insulation Class: Class B
• UL Certification: Recognized
• CSA Certification: Yes
• CE Certification: No
• Number of Speeds: 1
• Motor Type: Polyphase Induction, Single or Dual Voltage
• Starting Method: Across The Line
• Number of Poles: 2
• Shaft Rotation: Reversible Counterclockwise
• Mounting Type: Rigid Base
• Drive End Bearing Type: Ball
• Opposite Drive End Bearing Type: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 15.06 inches
• Frame Length: 9.25 inches
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.31 inches
