Carrier GA5SAN56000W Air Conditioner 5.0T 13.8Sr2 208/230 GA5SAN5

Product Description

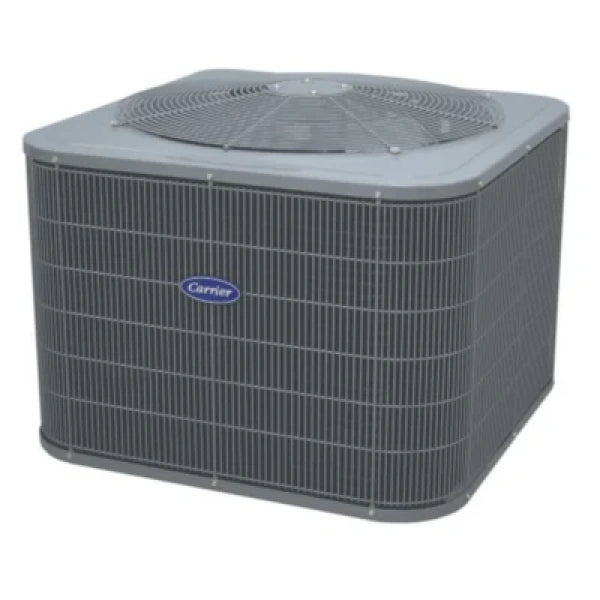

The CARRIER GA5SAN56000W is an air conditioner designed with non-ozone depleting, low global warming potential Puron Advance™ refrigerant. This unit supports programmable or standard thermostat controls and features a single stage scroll compressor with internal pressure relief valve and thermal overload protection. It is AHRI Certified, Energy Star Rated, and cULus Listed.

• Up to 17.0 SEER2 / 14.5 EER2
• Indoor air quality accessories available
• Supports programmable or standard thermostat controls
• Non-ozone depleting Puron Advance™ R-454B refrigerant
• Single stage scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Filter drier protection
• Solid, durable sheet metal construction
• Dense wire coil guard
• Sound level as low as 71 dBa
• Long line up to 250' total equivalent length, up to 200' condenser above evaporator or up to 80' evaporator above condenser
• Low ambient cooling (down to 0°F / -18°C) with approved low ambient accessory kits
• AHRI Certified
• Energy Star Rated
• cULus Listed

Product Highlights

This air conditioner features durable construction, quiet operation, and is designed for long-line applications up to 250 feet.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: GA5SAN56000W

Technical Specifications

• MfgNum: GA5SAN56000W
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• ItemNum: GA5SAN56000W
• Vendor Name: Carrier
• Model Number: 5 Ton (60,000 BTU/h)
• SEER2 Efficiency: 16
• Compressor Type: Single-Stage Scroll
• Refrigerant: R-454B (Puron Advance™)
• Voltage: 208/230V, 1-Phase, 60 Hz
• Sound Level: As low as 71 dBa
• Cabinet Material: Galvanized steel with dense wire coil guard
